Wiring Diagram:

WARNING: This page is about a different car, the 2001 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

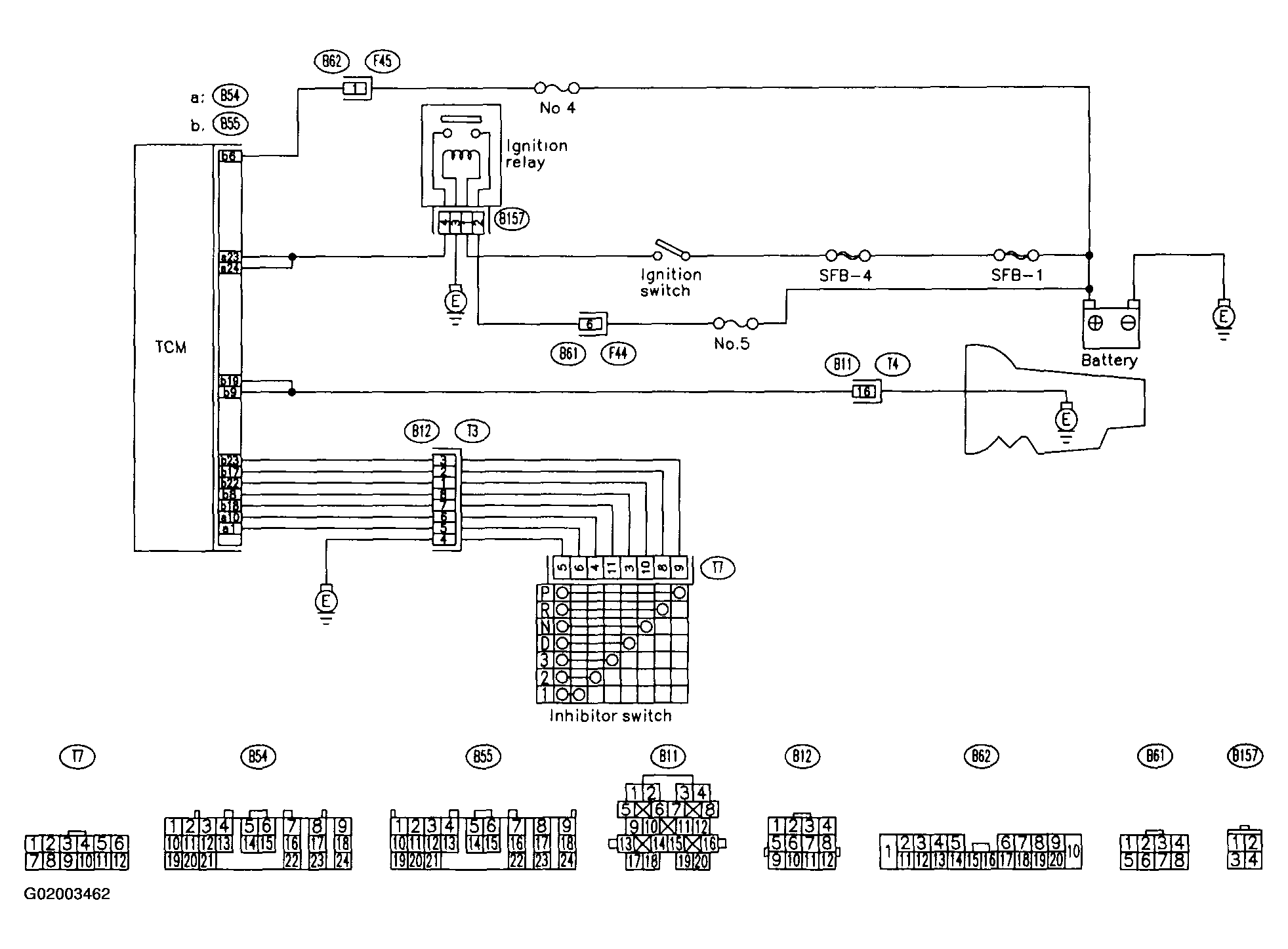

Fig 1: Control Module Power Supply & Ground Line Circuits
G02003462
