Front Bushing

CAUTION: Install front bushing in correct direction as shown in Fig 1.

To reassemble, reverse disassembly procedures.

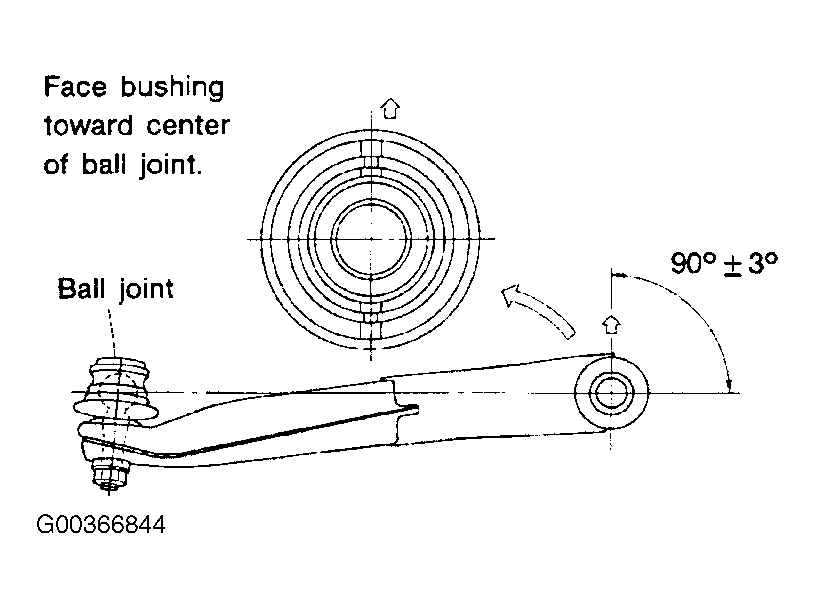

Fig 1: Installing Front Bushing
G00366844Courtesy of SUBARU OF AMERICA, INC.
