Oil Filter

The oil filter is a full-flow filtering, cartridge type that utilizes a paper element. It also has a built-in bypass valve. The filter element has a special pleat design to increase the effective filtering area.

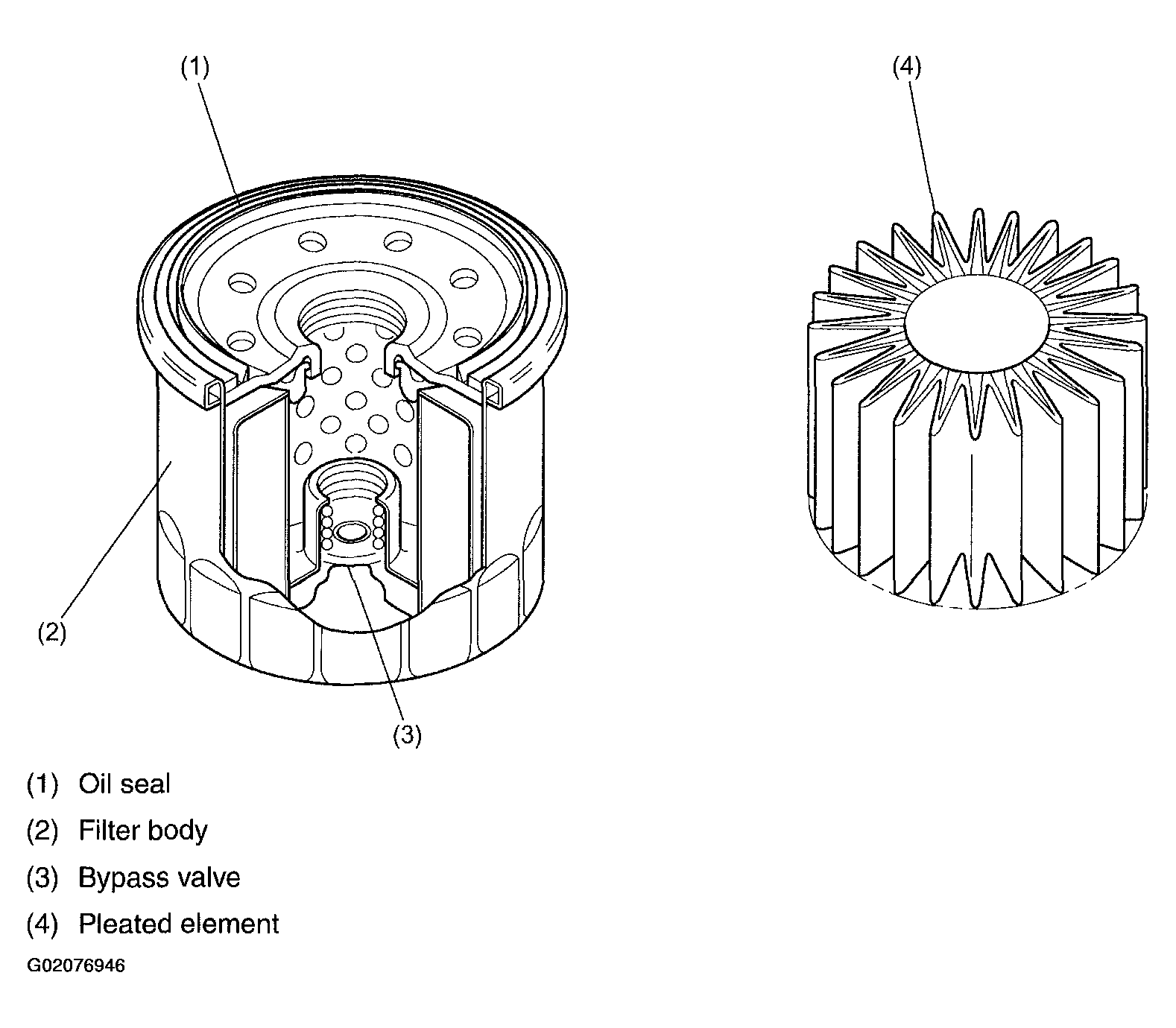

Fig 1: Identifying Oil Filter Components
G02076946Courtesy of SUBARU OF AMERICA, INC.
