Front Wiper

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

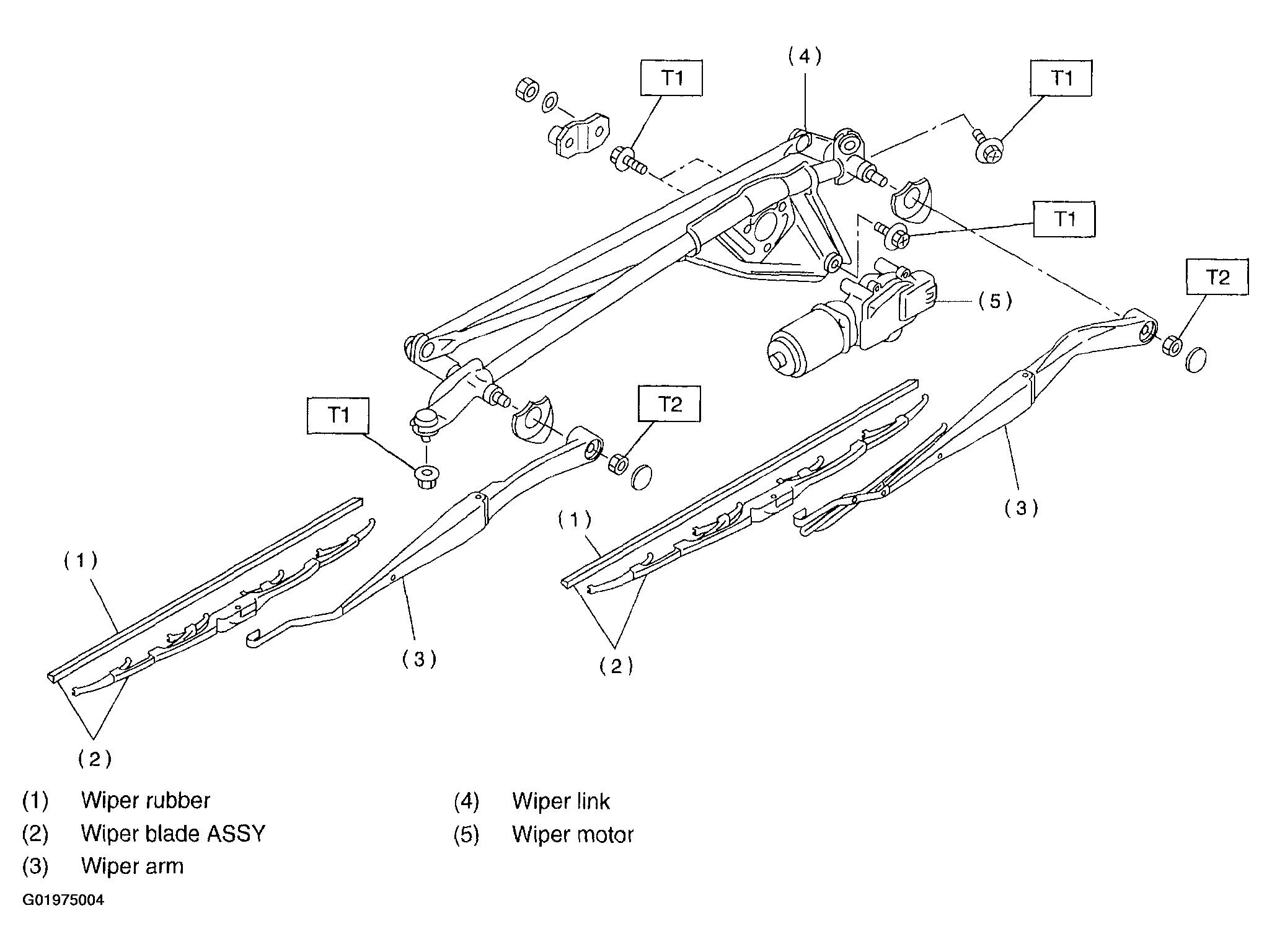

Fig 1: Identifying Front Wiper Components
G01975004Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

  1. T1:  6.0 (0.61, 4.4)
  2. T2:  20 (2.0, 14.5)
