Non-Turbo Model

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Install the water pump onto the left-hand cylinder block.
NOTE:
- Replace gasket with a new one.
- When installing water pump, tighten bolts in two stages in alphabetical sequence as shown in figure.
Tightening torque:
1. First; 12 N.m (1.2 kgf.m, 8.7 ft.lb)
2. Second; 12 N.m (1.2 kgf.m, 8.7 ft.lb)

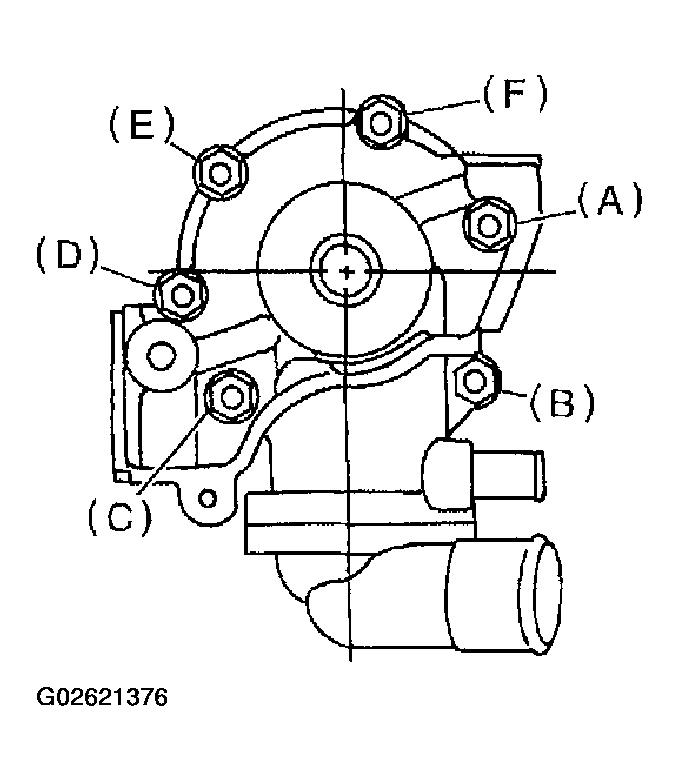

Fig 1: Installing Water Pump Onto Left-Hand Cylinder Block In Sequence
Courtesy of SUBARU OF AMERICA, INC.
Install the hose to the water pump.
Install the tensioner bracket.
1. Tightening torque: 25 N.m (2.5 kgf.m, 18.1 ft.lb)

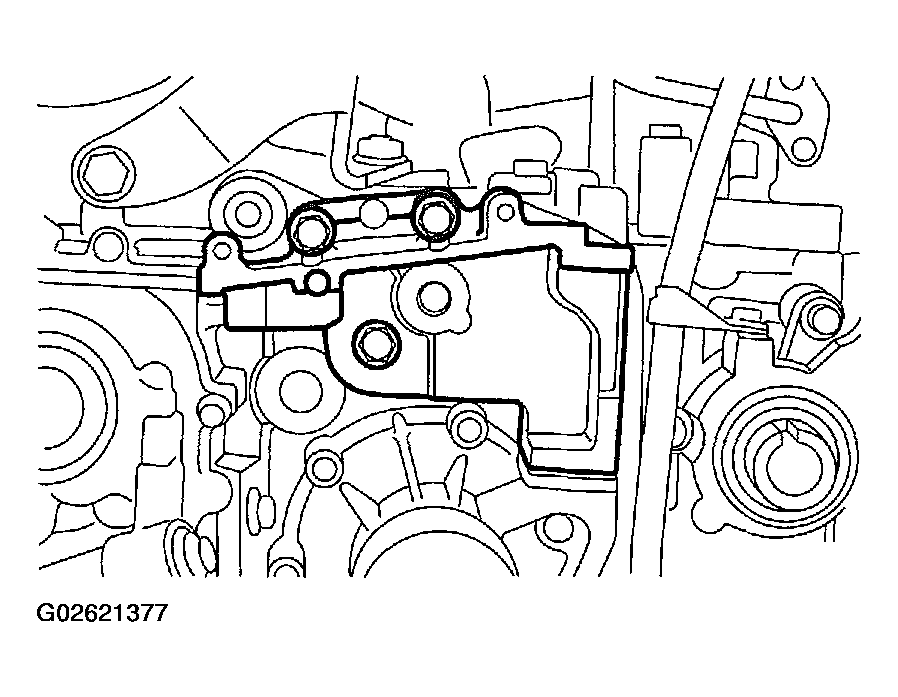

Fig 2: Installing Tensioner Bracket
Courtesy of SUBARU OF AMERICA, INC.
Install the left-hand belt cover No. 2.
1. Tightening torque: 5 N.m (0.5 kgf.m, 3.6 ft.lb)

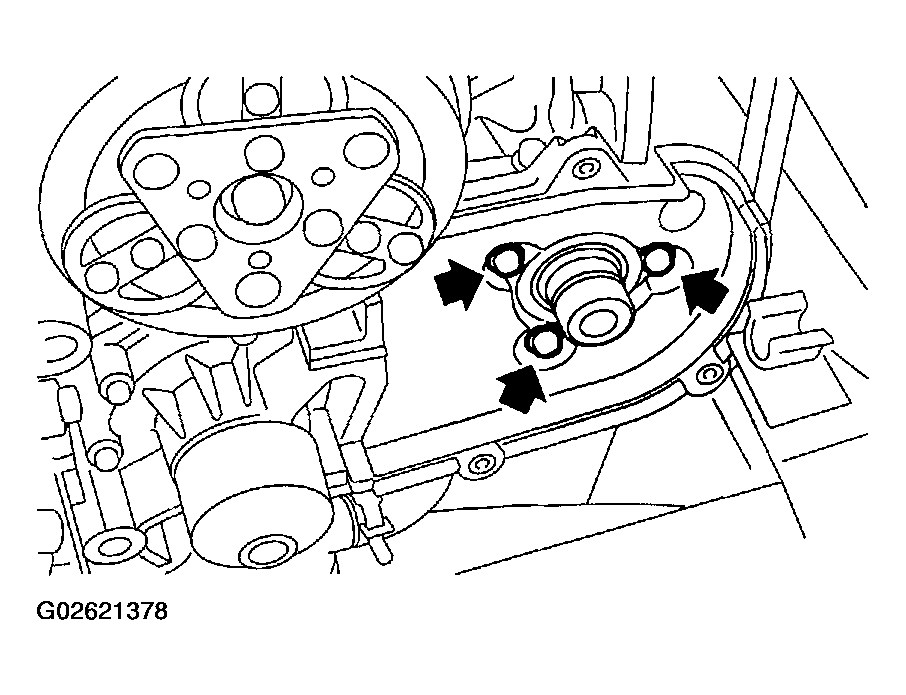

Fig 3: Installing Left-Hand Belt Cover No. 2.
Courtesy of SUBARU OF AMERICA, INC.
Install the left-hand camshaft sprockets by using ST.
ST 18231AA010 CAMSHAFT SPROCKET WRENCH

NOTE: Also the CAMSHAFT SPROCKET WRENCH (499207100) can be used.
1. Tightening torque: 78 N.m (8.0 kgf.m, 57.9 ft.lb)

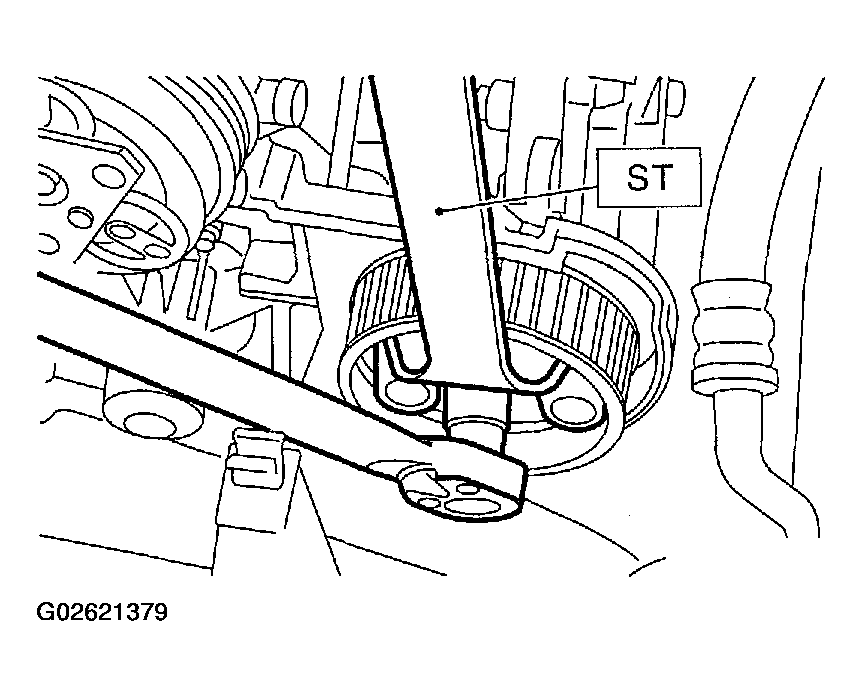

Fig 4: Installing Left-Hand Camshaft Sprockets Using ST
Courtesy of SUBARU OF AMERICA, INC.
Install the belt idler No. 2.
Tightening torque: 39 N.m (4.0 kgf.m, 28.9 ft.lb)

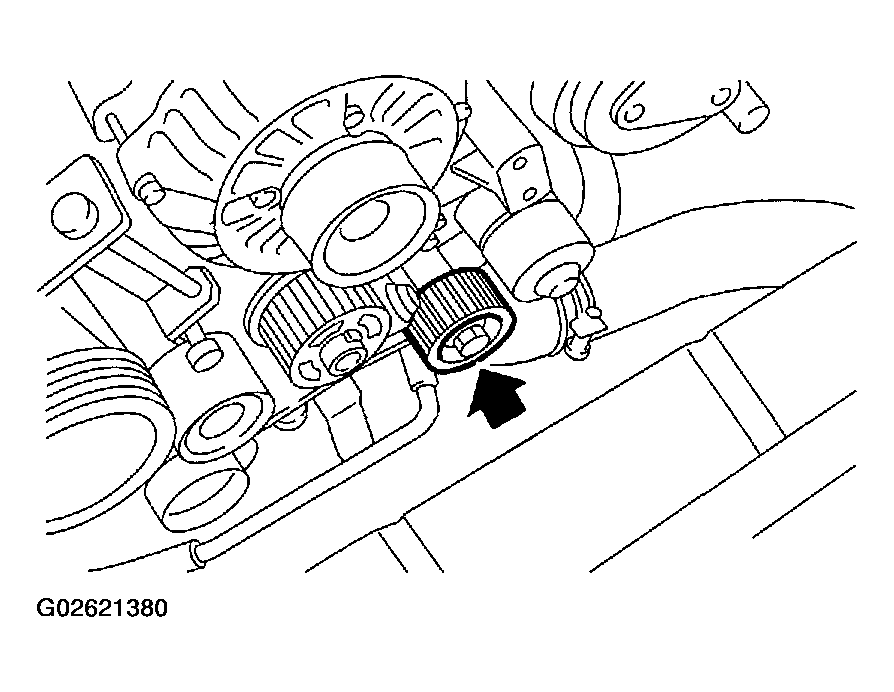

Fig 5: Installing Belt Idler No. 2
Courtesy of SUBARU OF AMERICA, INC.
Install the automatic belt tension adjuster which tension rod is held with pin. See AUTOMATIC BELT TENSION ADJUSTER ASSEMBLY AND BELT IDLER , Installation, Timing Belt.
Install the timing belt, see INSTALLATION , Timing Belt.
Install V-belts, see INSTALLATION , V-belt.
Install the radiator, see INSTALLATION , Radiator.
