Section 117 (Ignition System - DOHC/TC): General Description: Components

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

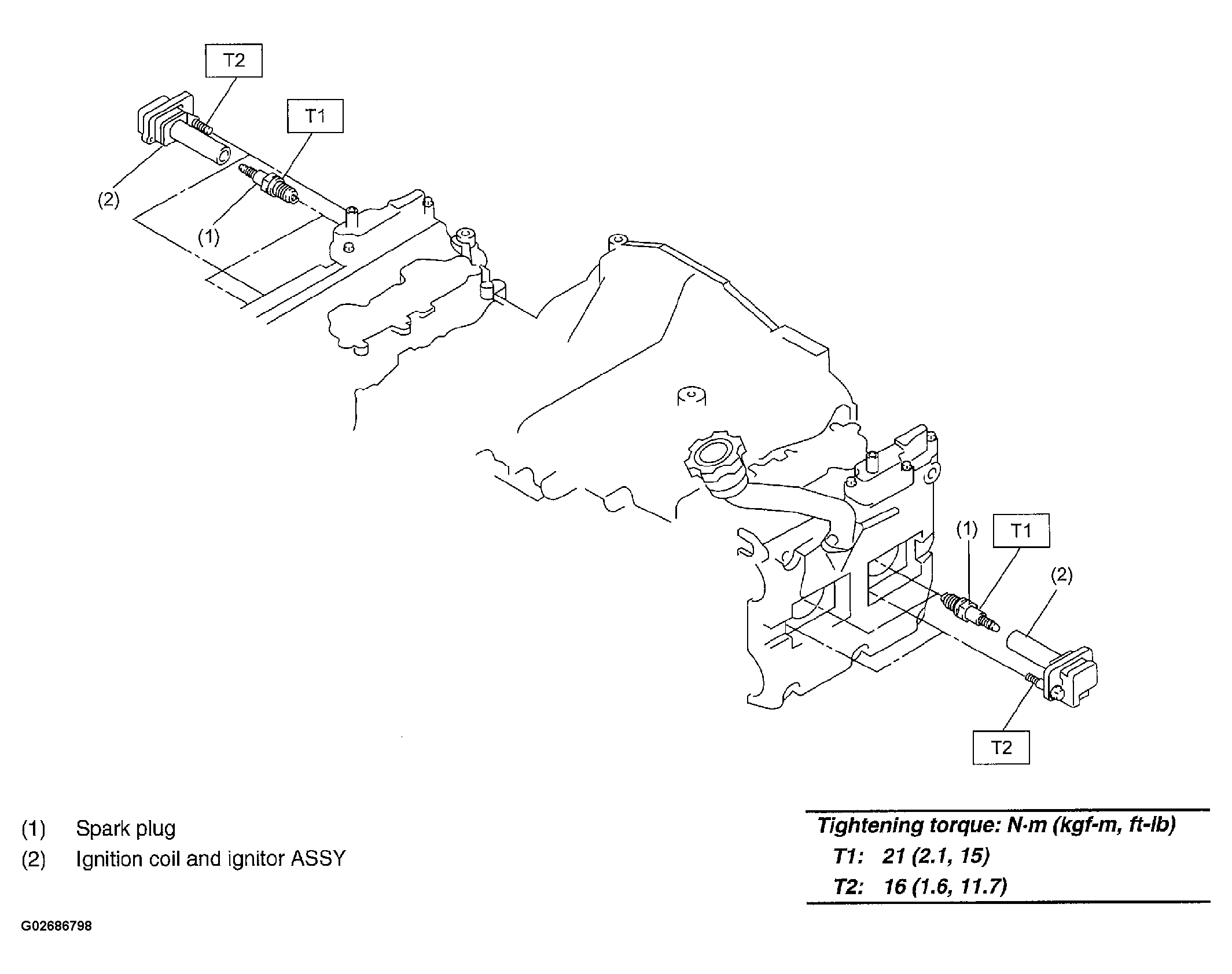

Fig 1: Ignition System Replacement Components With Torque Specifications
G02686798Courtesy of SUBARU OF AMERICA, INC.
