Section 230 (Clutch System): Flywheel: Installation

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Install the flywheel and ST.
ST 498497100 CRANKSHAFT STOPPER

Fig 1: Locking Flywheel For Installing Using ST
Courtesy of SUBARU OF AMERICA, INC.
Tighten the flywheel attaching bolts to the specified torque.
NOTE: Tighten the flywheel installing bolts gradually. Each bolt should be tightened to the specified torque in a crisscross fashion.

Tightening torque:

Except STI model

72 N.m (7.3 kgf-m, 52.8 ft-lb)

STI model

75 N.m (7.6 kgf-m, 55.3 ft-lb)

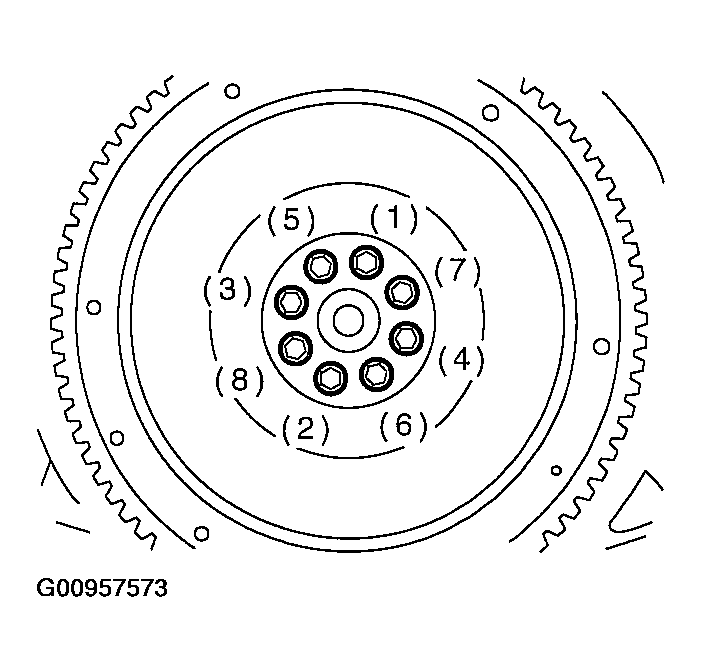

Fig 2: Tightening Sequence Of Flywheel Attaching Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the clutch disc and cover. < Ref. to INSTALLATION , Clutch disc and Cover.>
Install the transmission assembly.
5MT:

< Ref. to INSTALLATION , Manual Transmission Assembly. >

6MT:

< Ref. to INSTALLATION , Manual Transmission Assembly. >
