Operating Cylinder: Removal

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Remove the air cleaner case and air intake duct (Non-Turbo model) .
< Ref. to REMOVAL , Air Cleaner Case. > and

< Ref. to REMOVAL , Air Intake Duct. >
Remove the intercooler (Turbo model) . < Ref. to REMOVAL , Intercooler. >
Remove the clutch hose from operating cylinder.
CAUTION: Cover the hose joint to prevent clutch fluid from flowing out.
- NON-TURBO MODEL

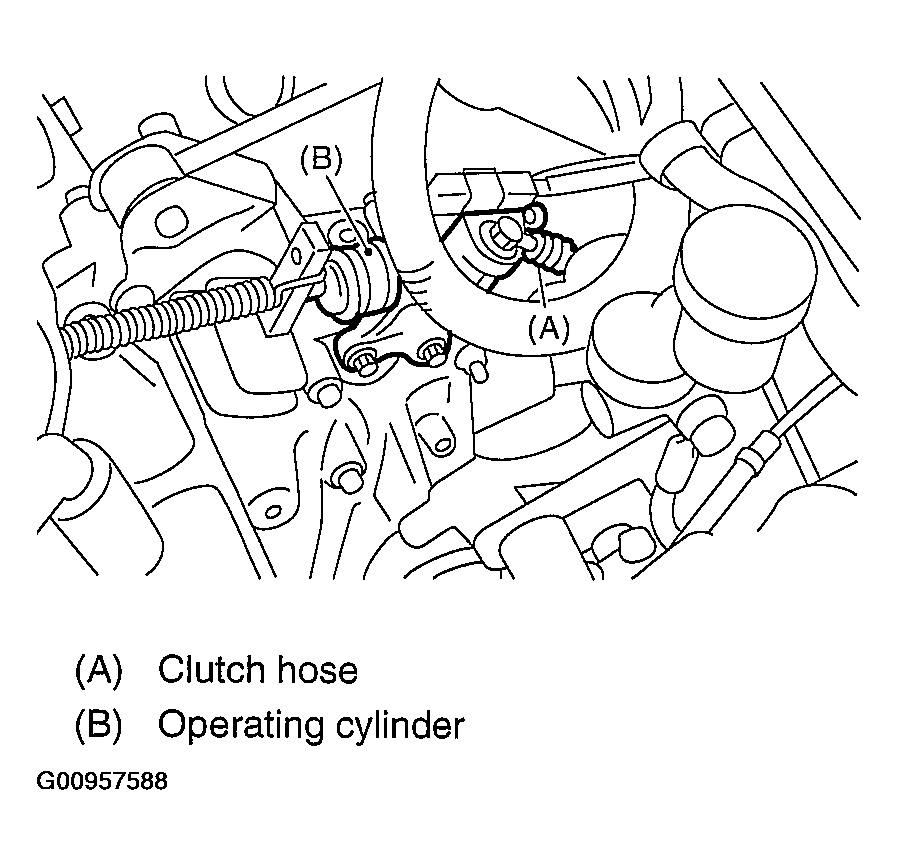

  Fig 1: Removing Clutch Hose From Operating Cylinder - Non Turbo Model
  Courtesy of SUBARU OF AMERICA, INC.
- TURBO MODEL (5MT)

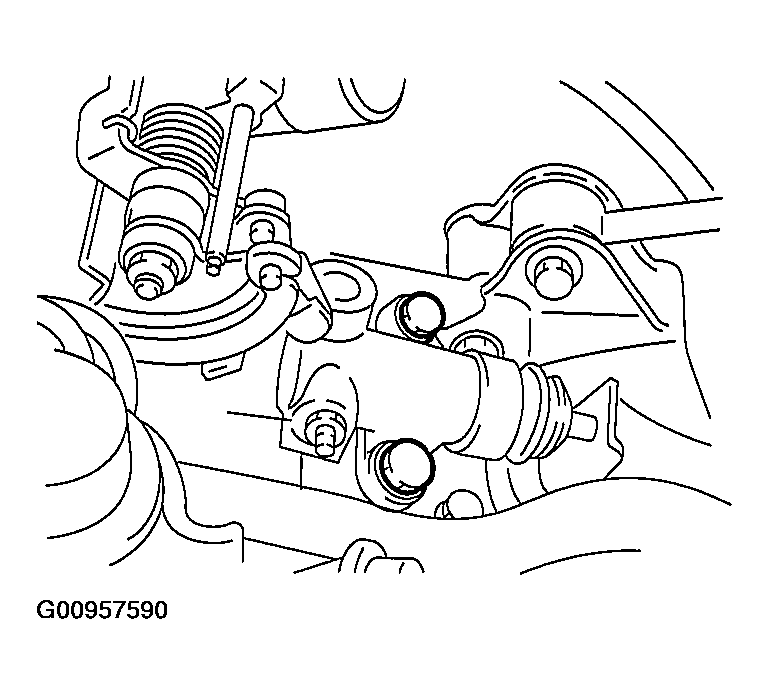

  Fig 2: Removing Clutch Hose From Operating Cylinder - Turbo Model (5MT)
  Courtesy of SUBARU OF AMERICA, INC.
- TURBO MODEL (6MT)

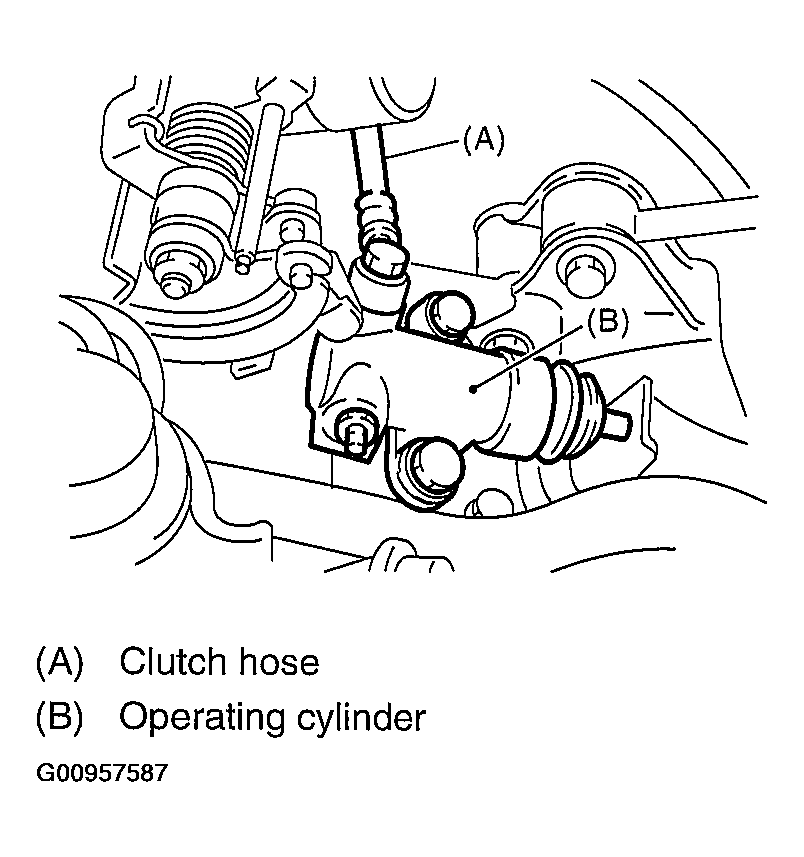

  Fig 3: Removing Clutch Hose From Operating Cylinder - Turbo Model (6MT)
  Courtesy of SUBARU OF AMERICA, INC.
Remove the operating cylinder from transmission.
- NON-TURBO MODEL

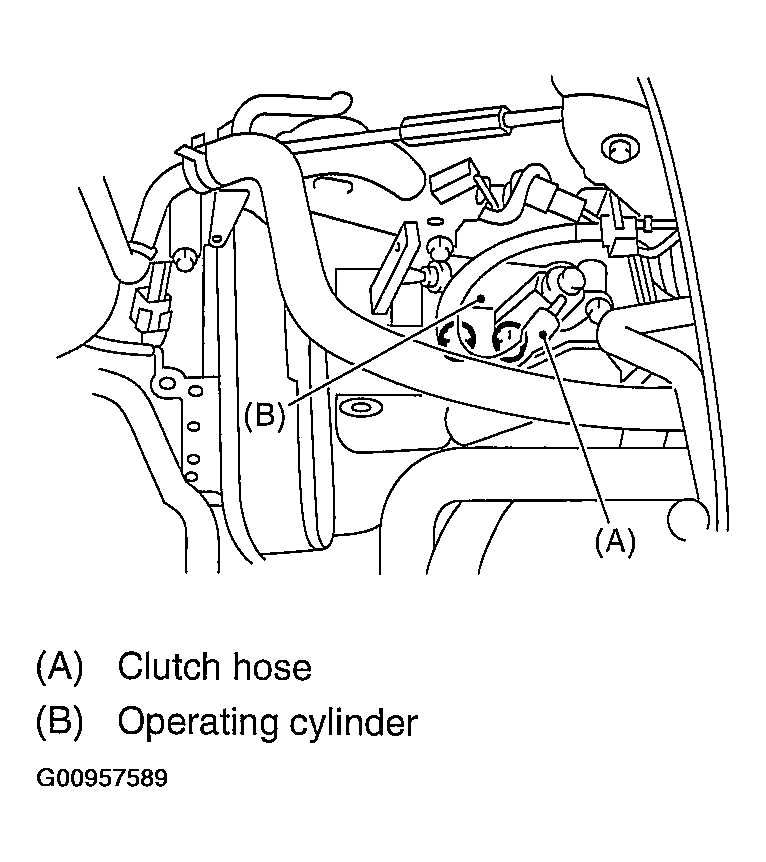

  Fig 4: Removing Operating Cylinder From Transmission - Non Turbo Model
  Courtesy of SUBARU OF AMERICA, INC.
- TURBO MODEL (5MT)

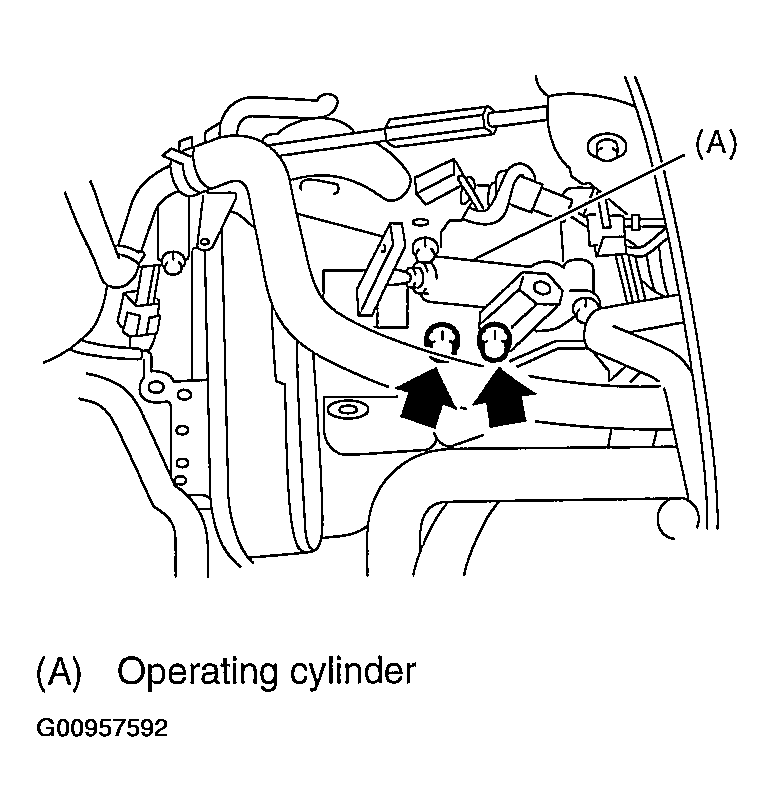

  Fig 5: Removing Operating Cylinder From Transmission - Turbo Model (5MT)
  Courtesy of SUBARU OF AMERICA, INC.
- TURBO MODEL (6MT)

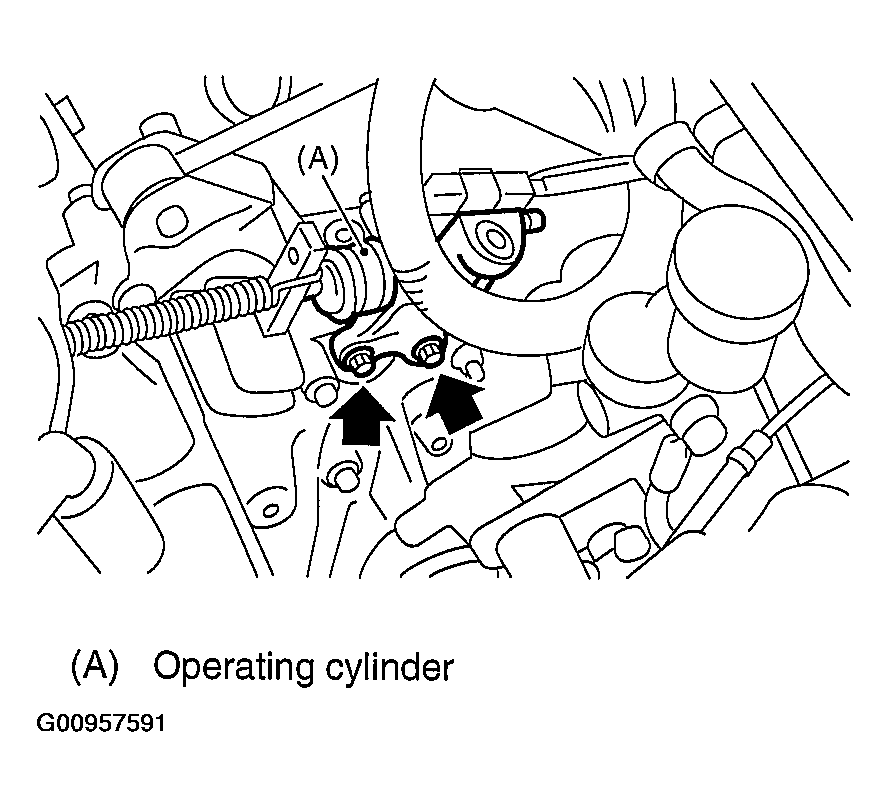

  Fig 6: Removing Operating Cylinder From Transmission - Turbo Model (6MT)
  Courtesy of SUBARU OF AMERICA, INC.
