COMPONENT LOCATIONS
| Component | Location |
|---|---|

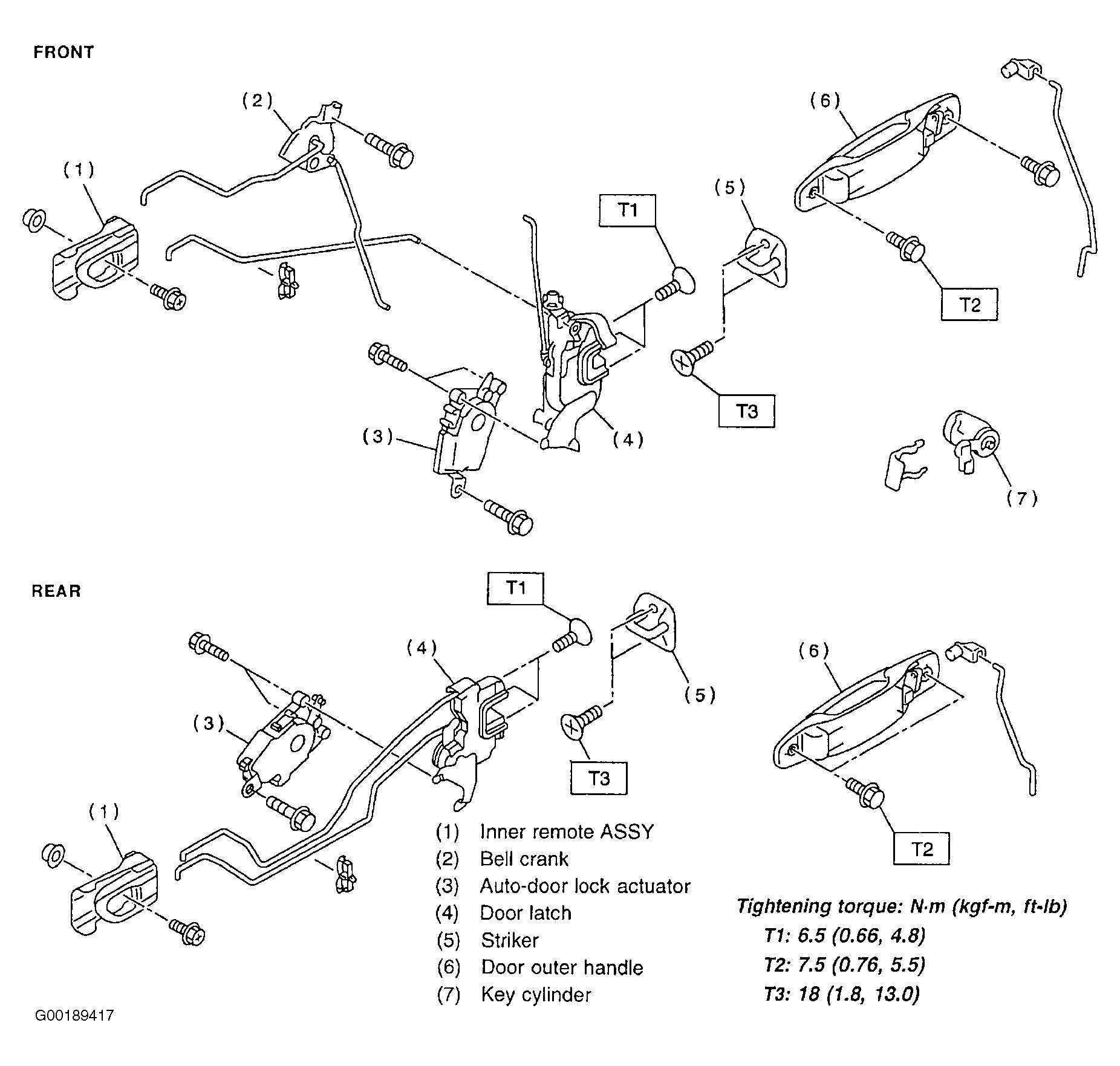

| Door Lock Actuators | Inside door |
| Door Lock Switch | Inside compartment door panels |
| Horn Relay Fig 3 | In main fuse box under hood |
| Interrupt Relay Fig 3 | Behind the fuse box, left side of engine compartment |
| Keyless Entry Control Module Fig 3 | Below left side of dash |
| Main Fuse Box | Behind dash, left of steering column |
| Passive Arm Connector Fig 3 | On driver side front lower pillar, near wheel |
| Rear Gate Latch Switch | In rear gate |
| Security Control Module Fig 3 | Below left side of dash |
| Security Indicator Light Fig 3 | In combination meter |
