Removal & Installation: Strut: Notes

WARNING: This page is about a different car, the 2001 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

For exploded view of front strut assembly, see

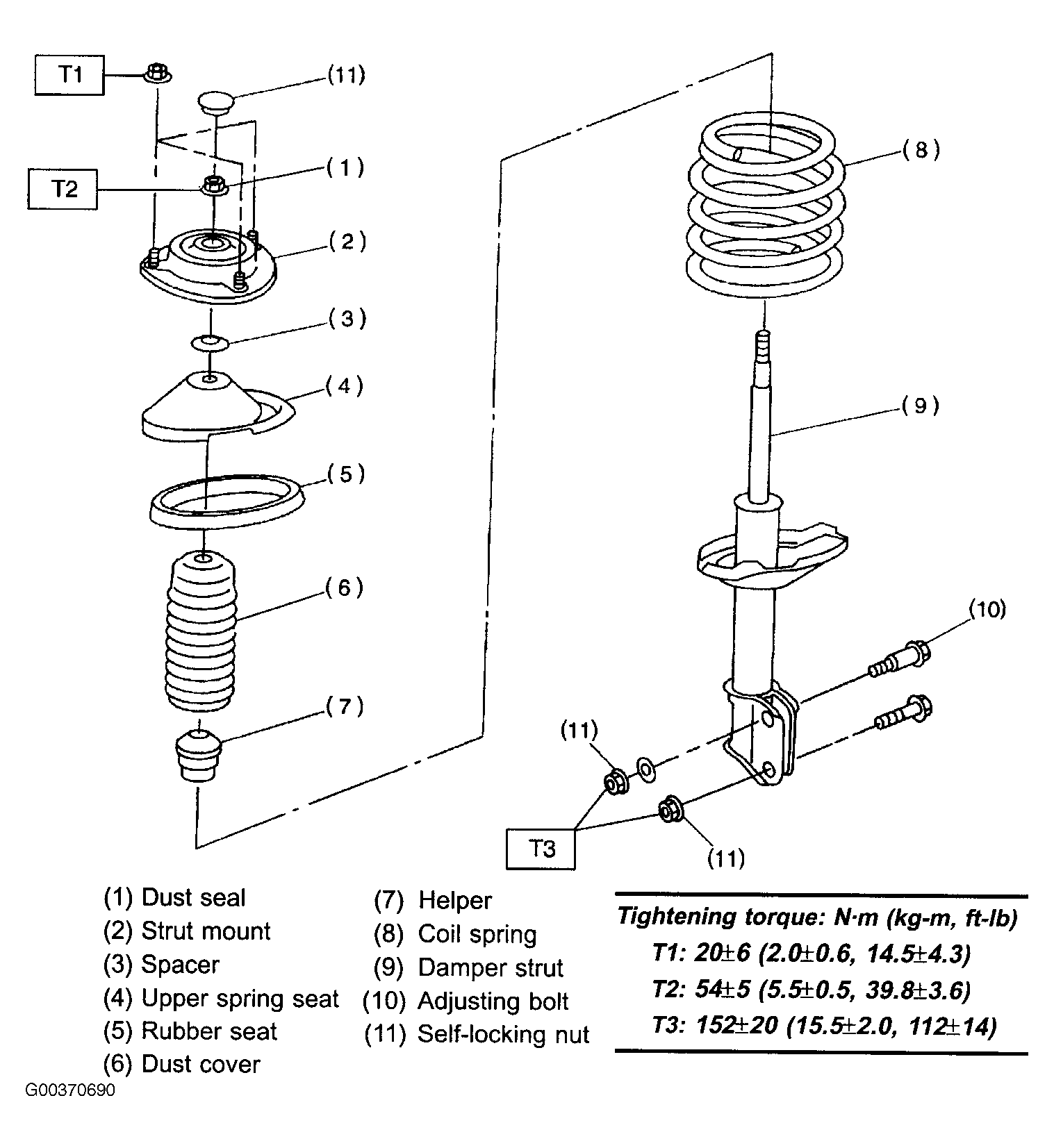

Fig 1: Exploded View Of Front Strut Assembly
G00370690Courtesy of SUBARU OF AMERICA, INC.
