Sub-Frame Inspection

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Check that there is no damage and distortion at the sub-frame.
NOTE: The tightening torque differs by the color for bolt (3). Always verify bolt color.
Check that the bolts are tightened. If there is looseness, tighten to specification. See Fig 1. See TORQUE SPECIFICATIONS .

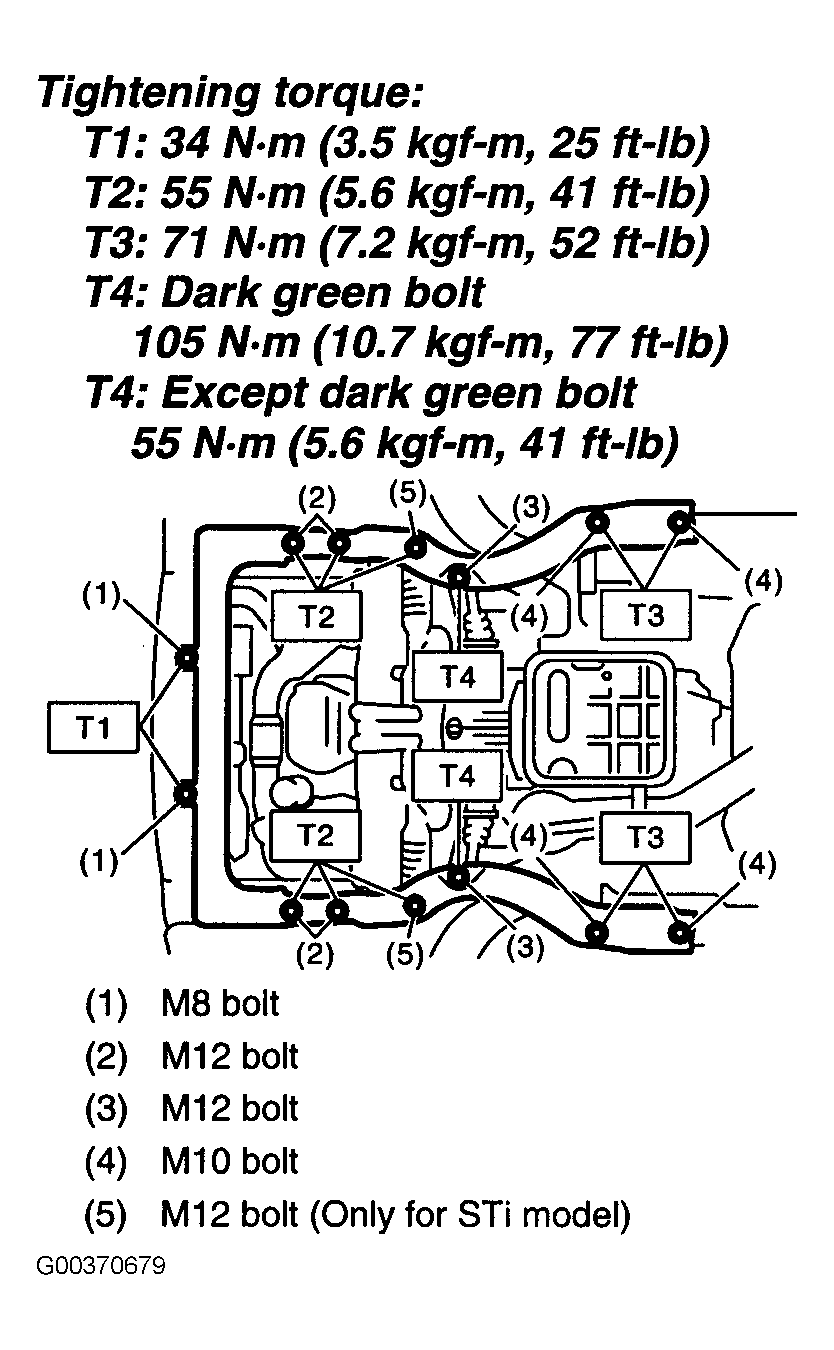

Fig 1: Checking Bolts Before Tightening

Courtesy of SUBARU OF AMERICA, INC.
