Diagnostic Chart

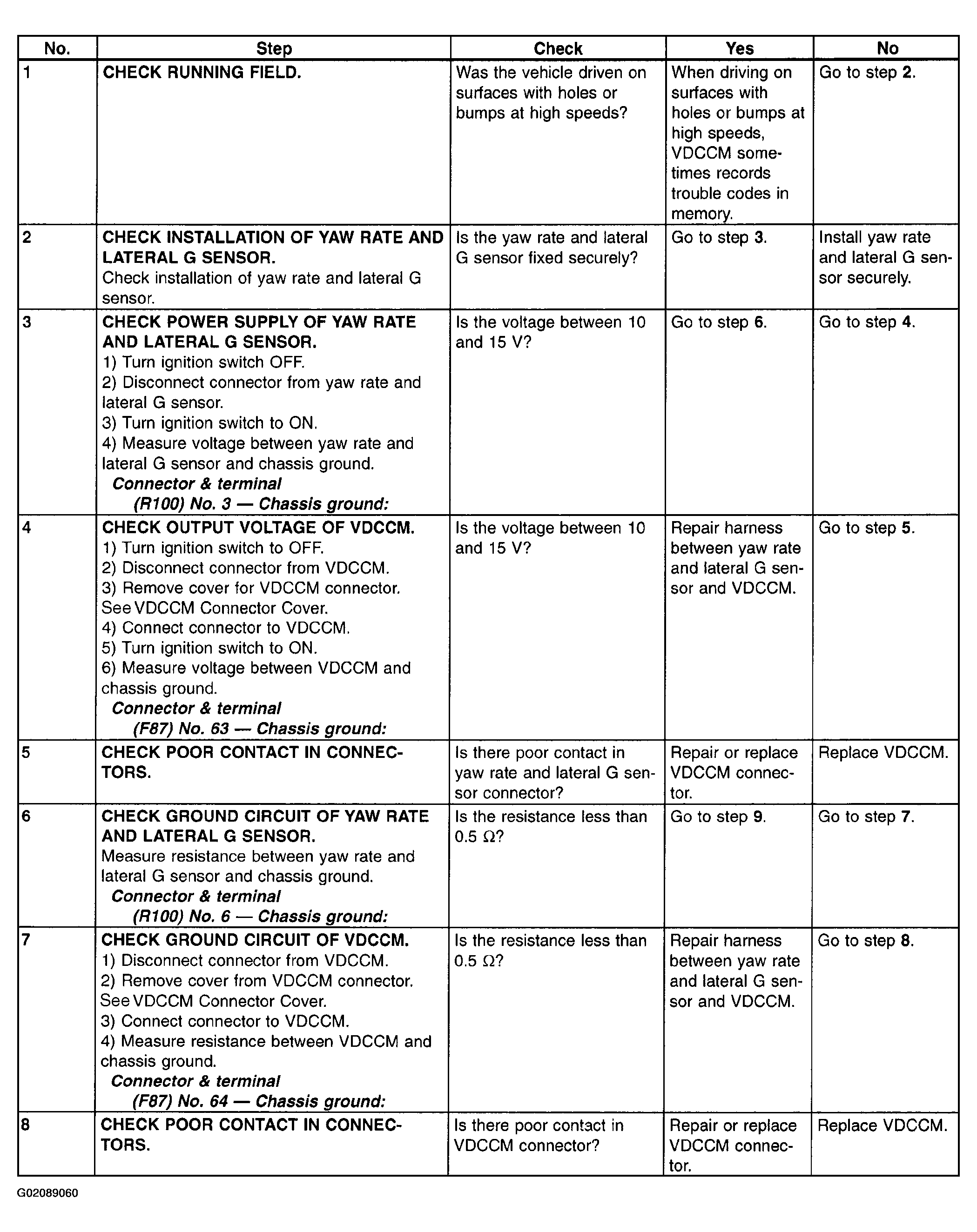

Fig 1: Diagnostic Chart - Trouble Code 72 - With Select Monitor (Change Range Of Yaw Rate Sensor Signal Is Too Big) - (1 Of 2)
G02089060

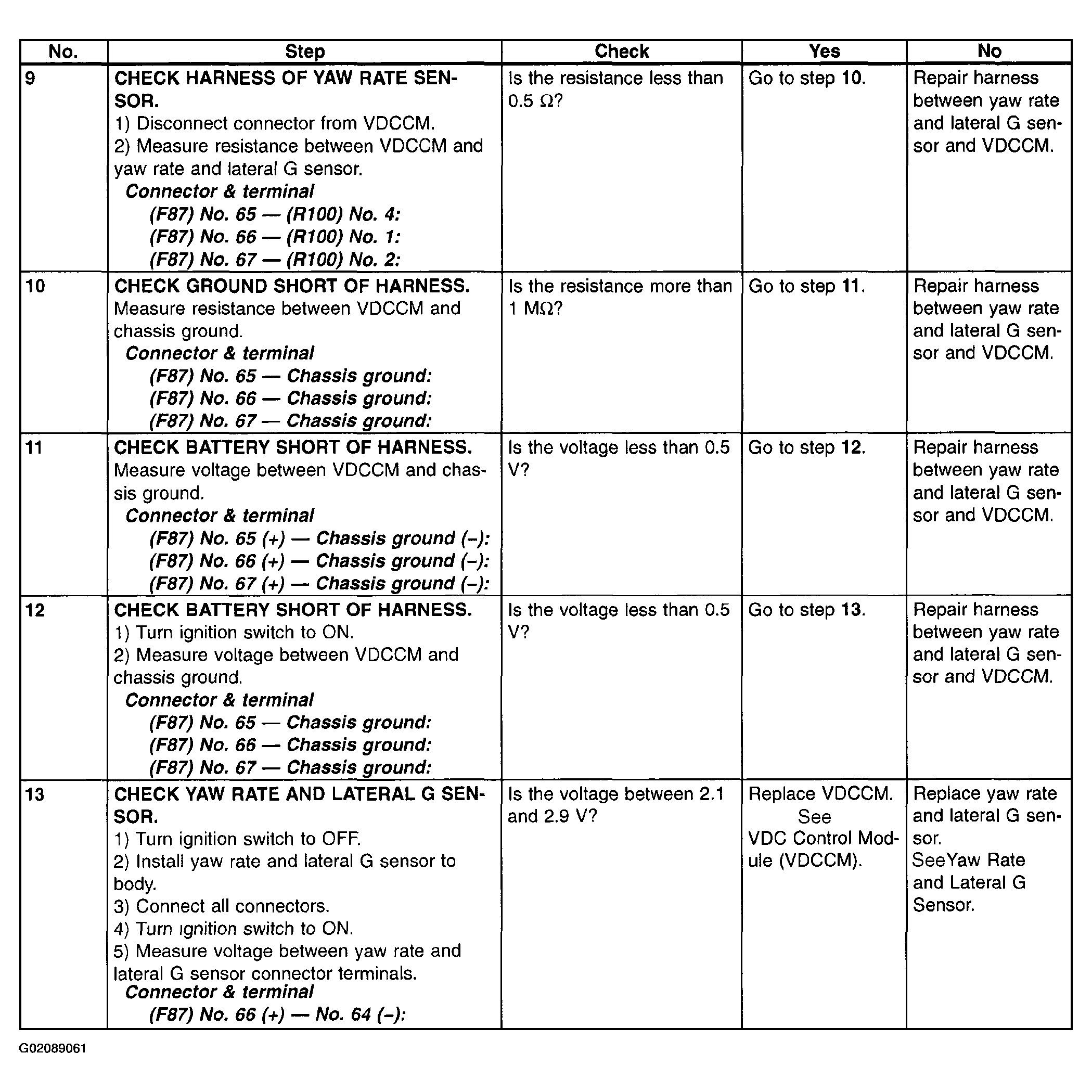

Fig 2: Diagnostic Chart - Trouble Code 72 - With Select Monitor (Change Range Of Yaw Rate Sensor Signal Is Too Big) - (2 Of 2)
G02089061
