Check Door Lock Switch & Circuit

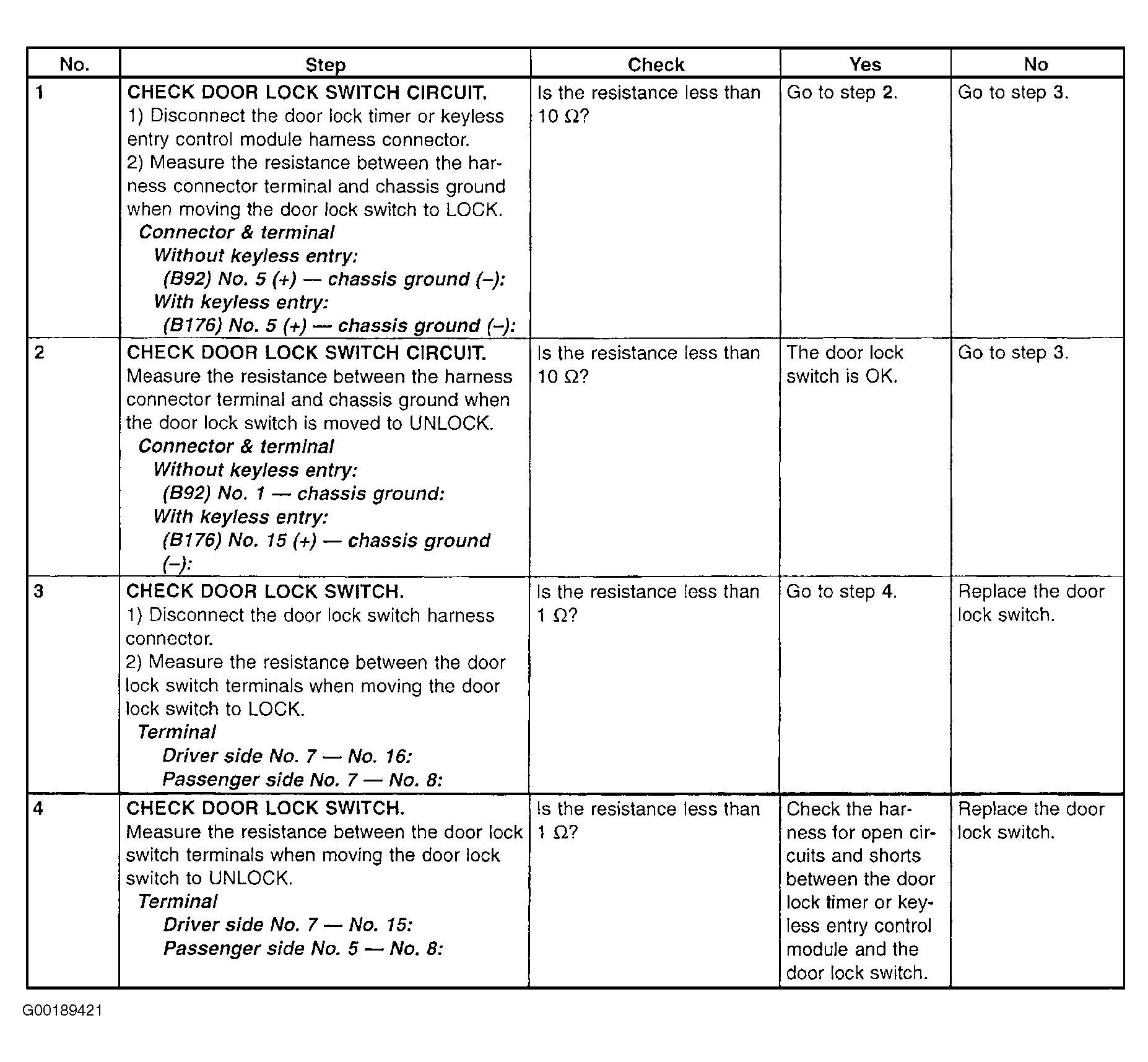

Fig 1: Check Door Lock Switch & Circuit (Testing Procedure)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
