Intake (Induction): General Description: Components

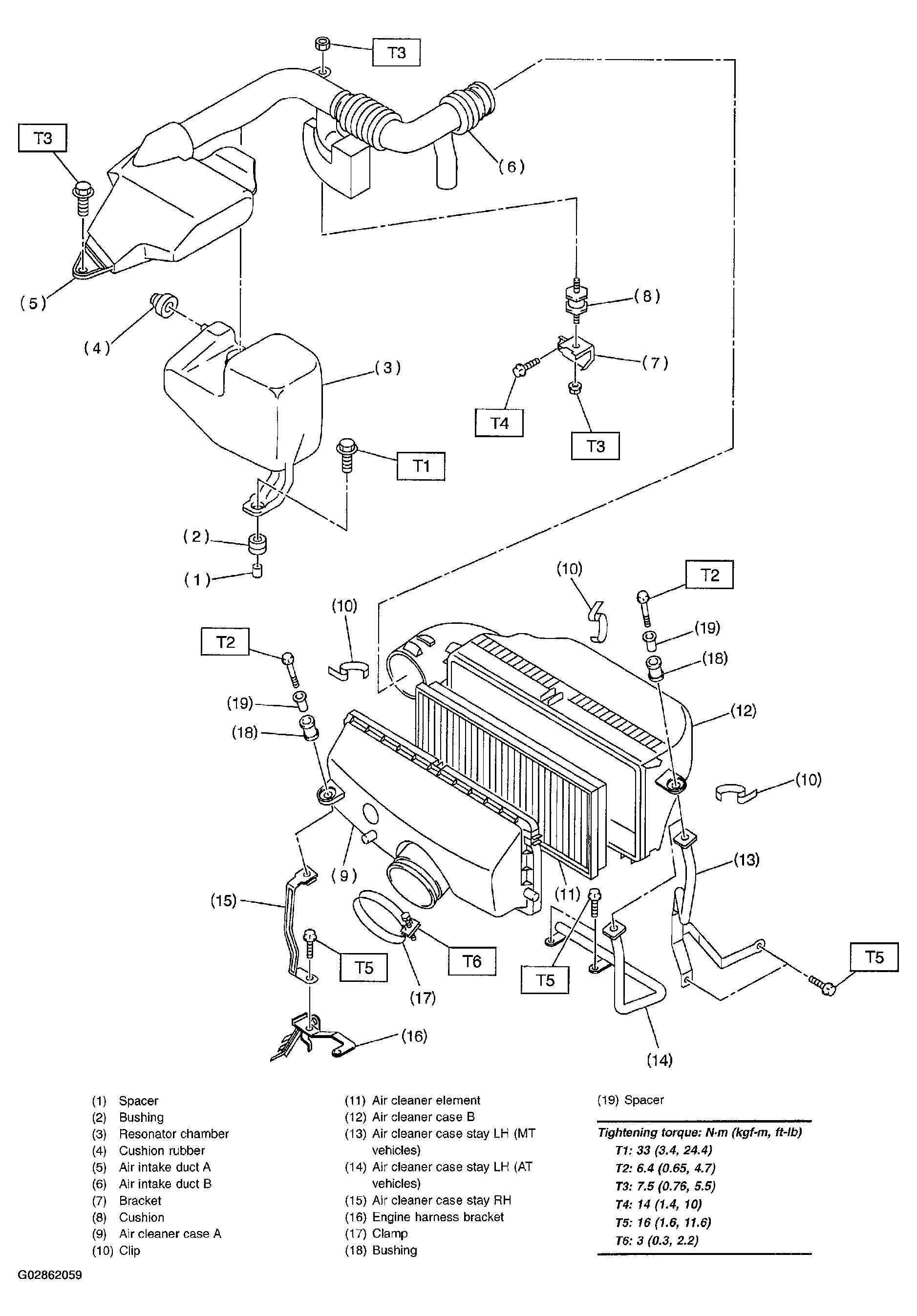

Fig 1: Identifying Intake (Induction) System Components
G02862059Courtesy of SUBARU OF AMERICA, INC.
