Power Assisted System: General Description: Specifications

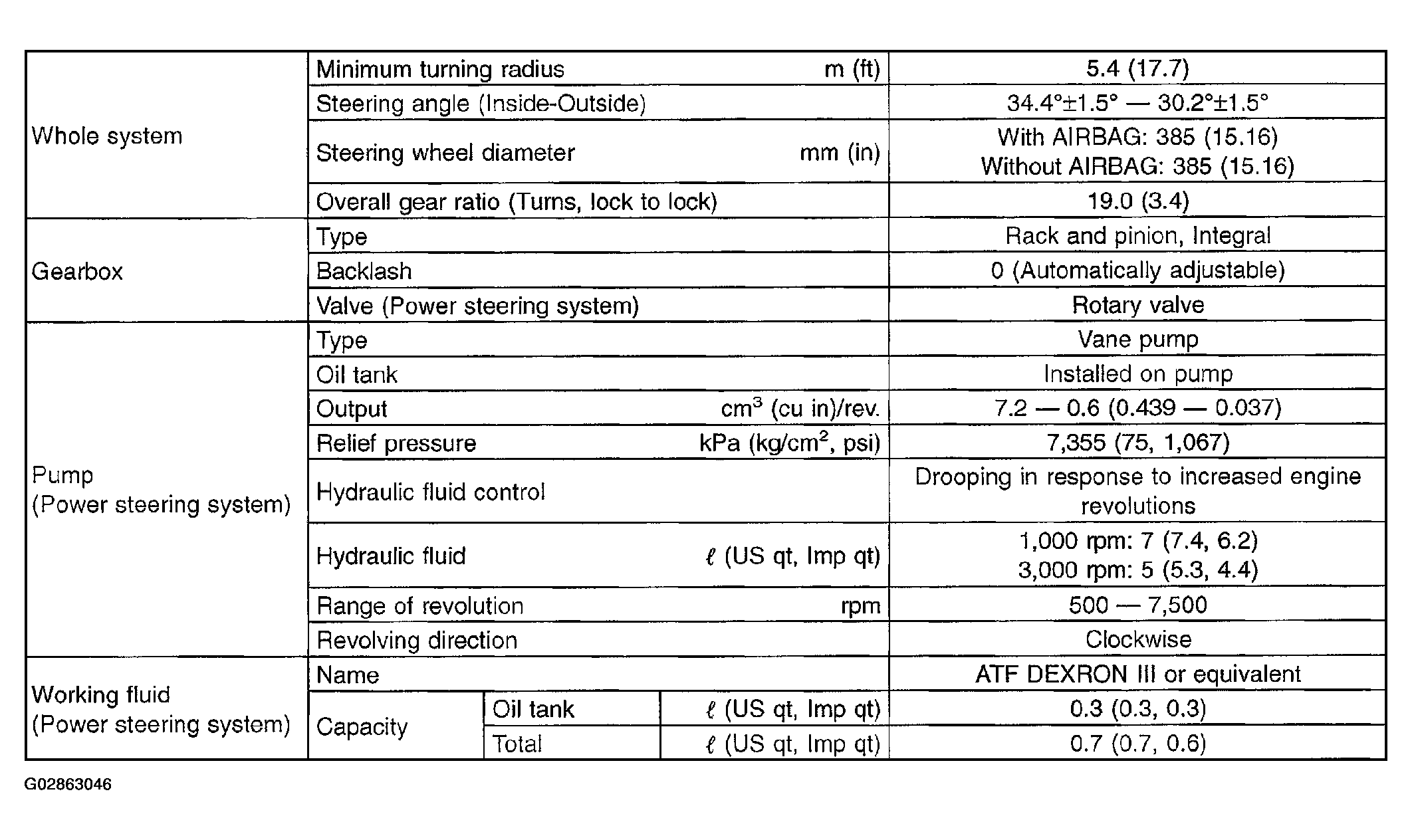

Fig 1: Specifications Chart (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

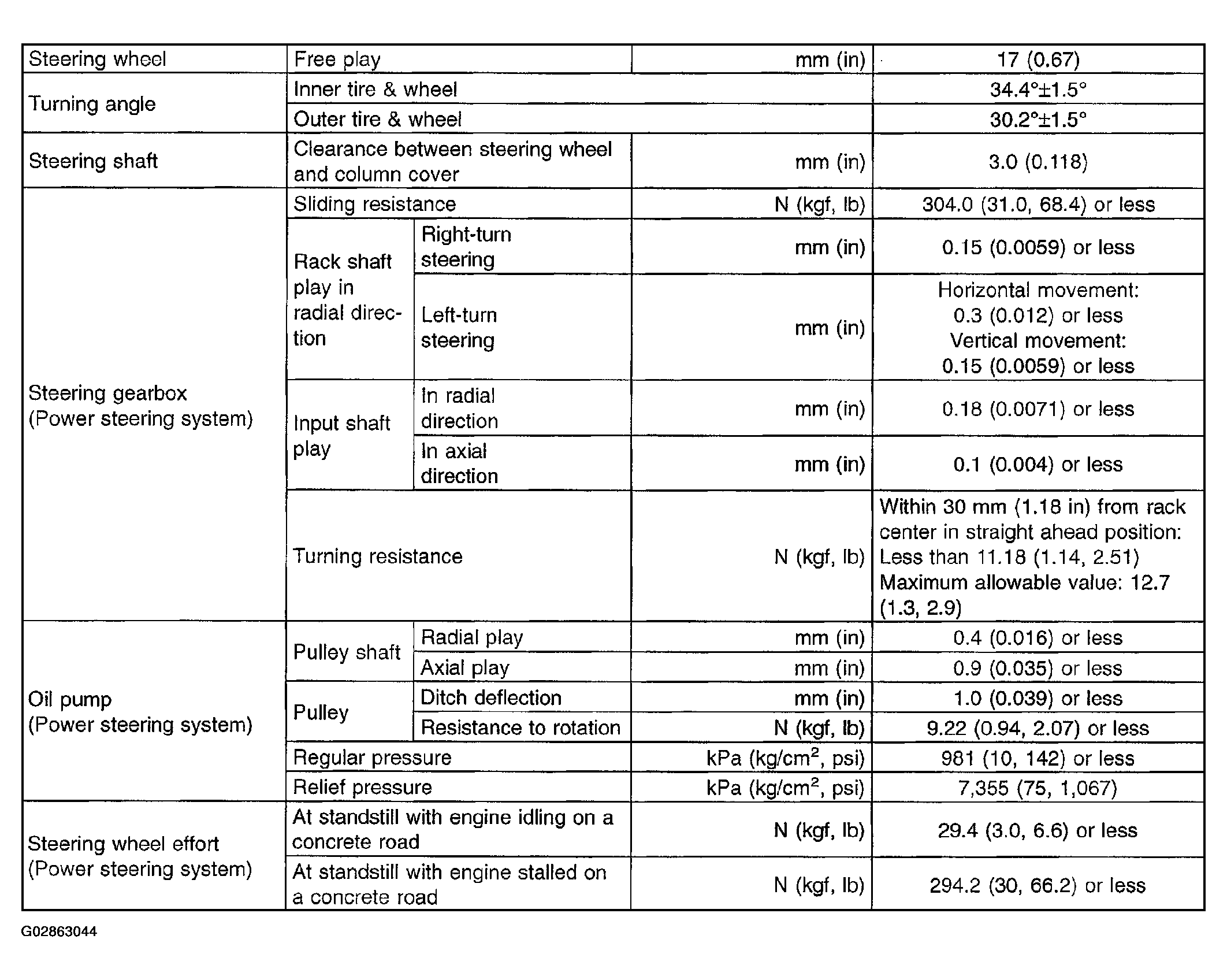

Fig 2: Specifications Chart (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

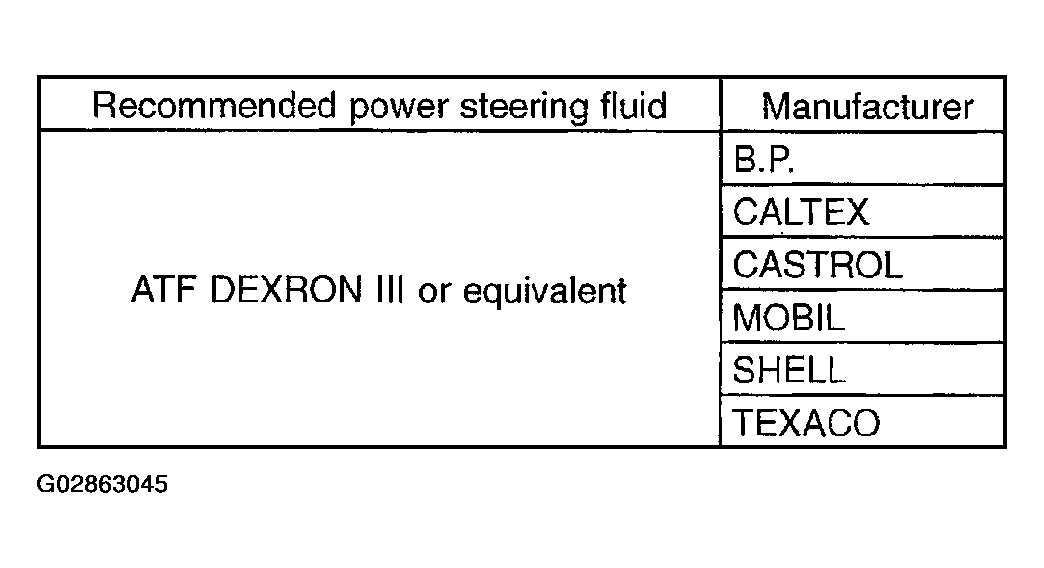

Fig 3: Recommended Power Steering Fluid Chart

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: This table lists various clearances that must be correctly adjusted to ensure normal vehicle driving without interfering noise, or any other faults.

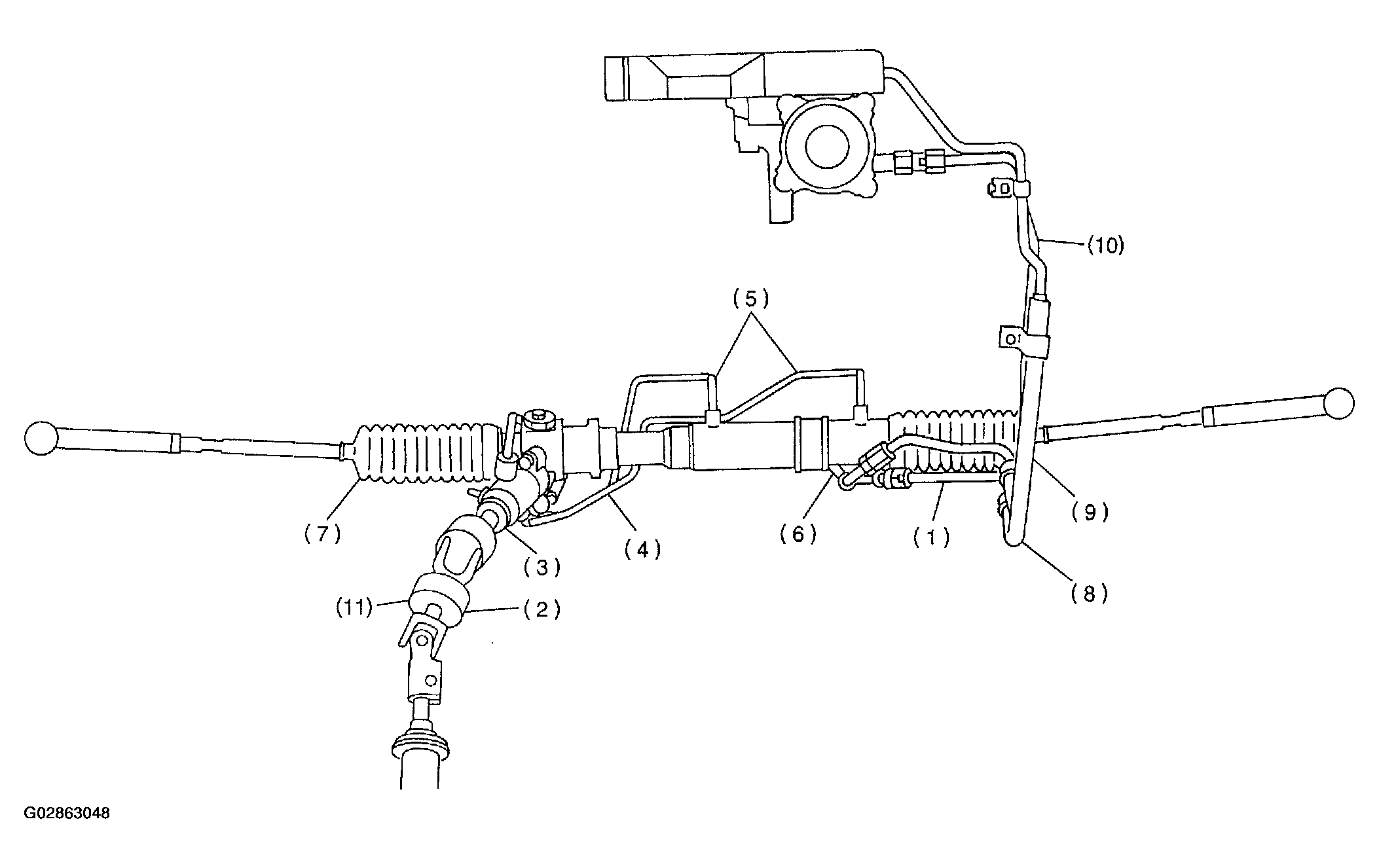

Fig 4: Identifying Power Assisted System (Power Steering - 1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Identifying Power Assisted System (Power Steering - 2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
