Main Relay: Removal

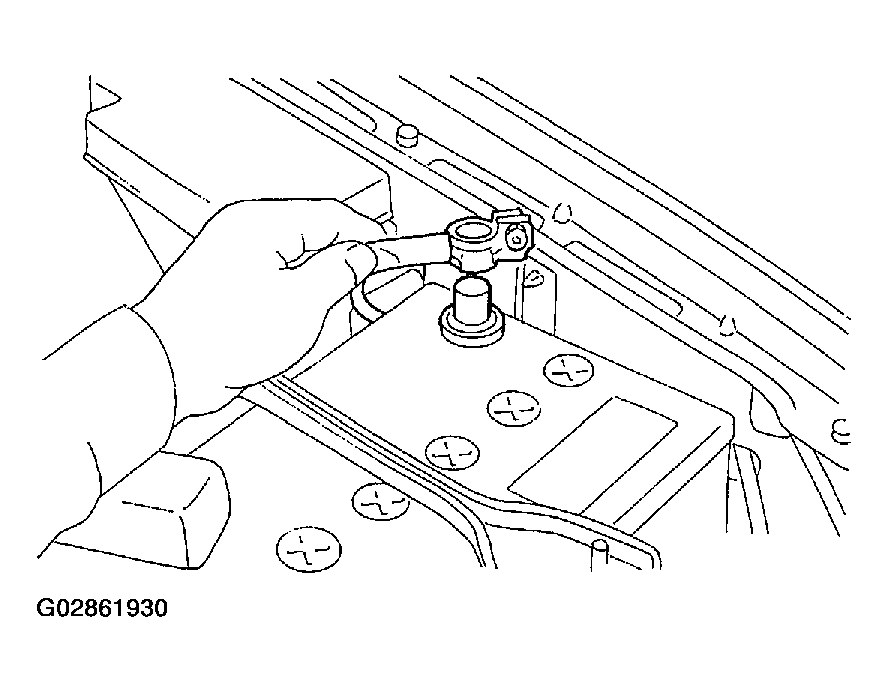

- Disconnect battery ground cable.
Courtesy of SUBARU OF AMERICA, INC.

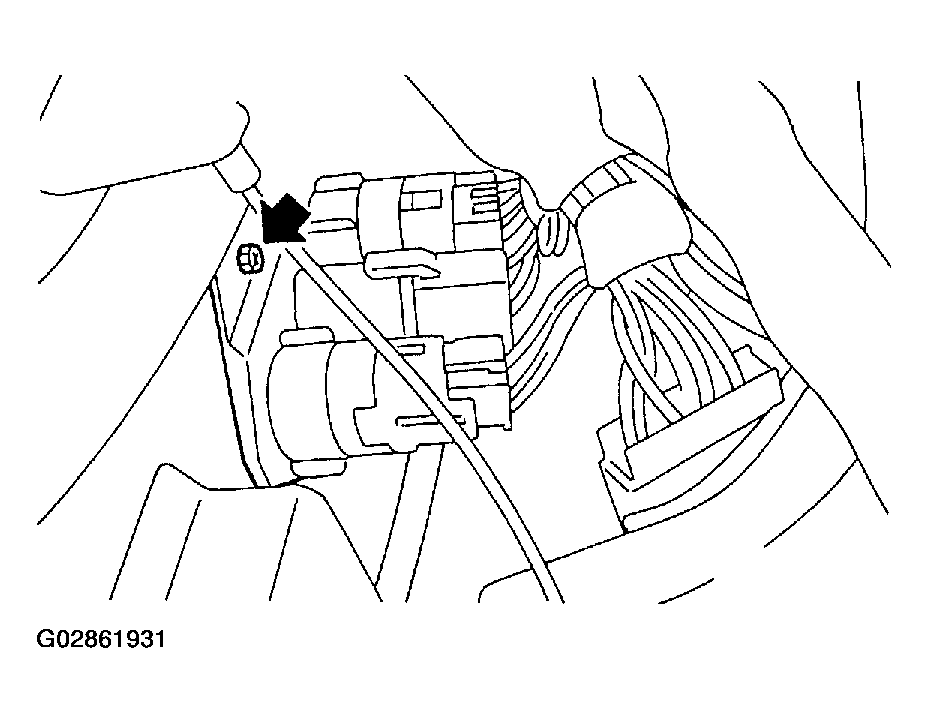

- Remove bolt which holds bracket of main relay and fuel pump relay.
Courtesy of SUBARU OF AMERICA, INC.
- Disconnect connectors from relays.
Courtesy of SUBARU OF AMERICA, INC.

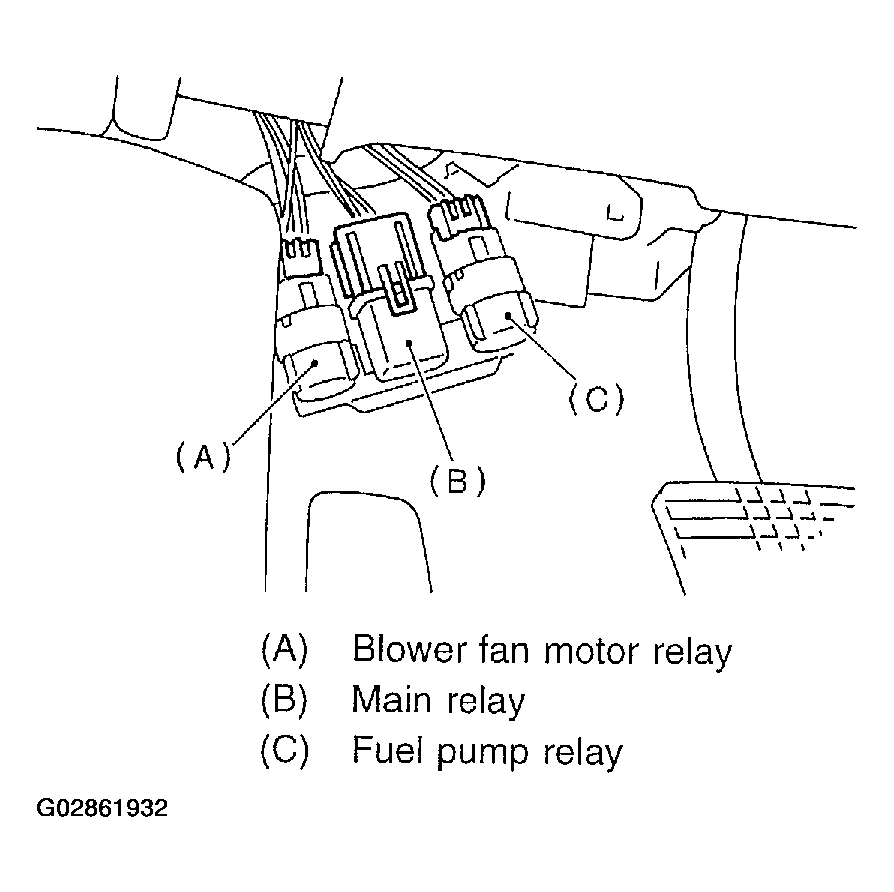

- Remove main relay from mounting bracket.
Courtesy of SUBARU OF AMERICA, INC.
