Home >> Subaru >> 2002 >> Forester S F4-2.5L SOHC >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Locations

April 5, 2026: LEMON Manuals is launched! Read the announcement.

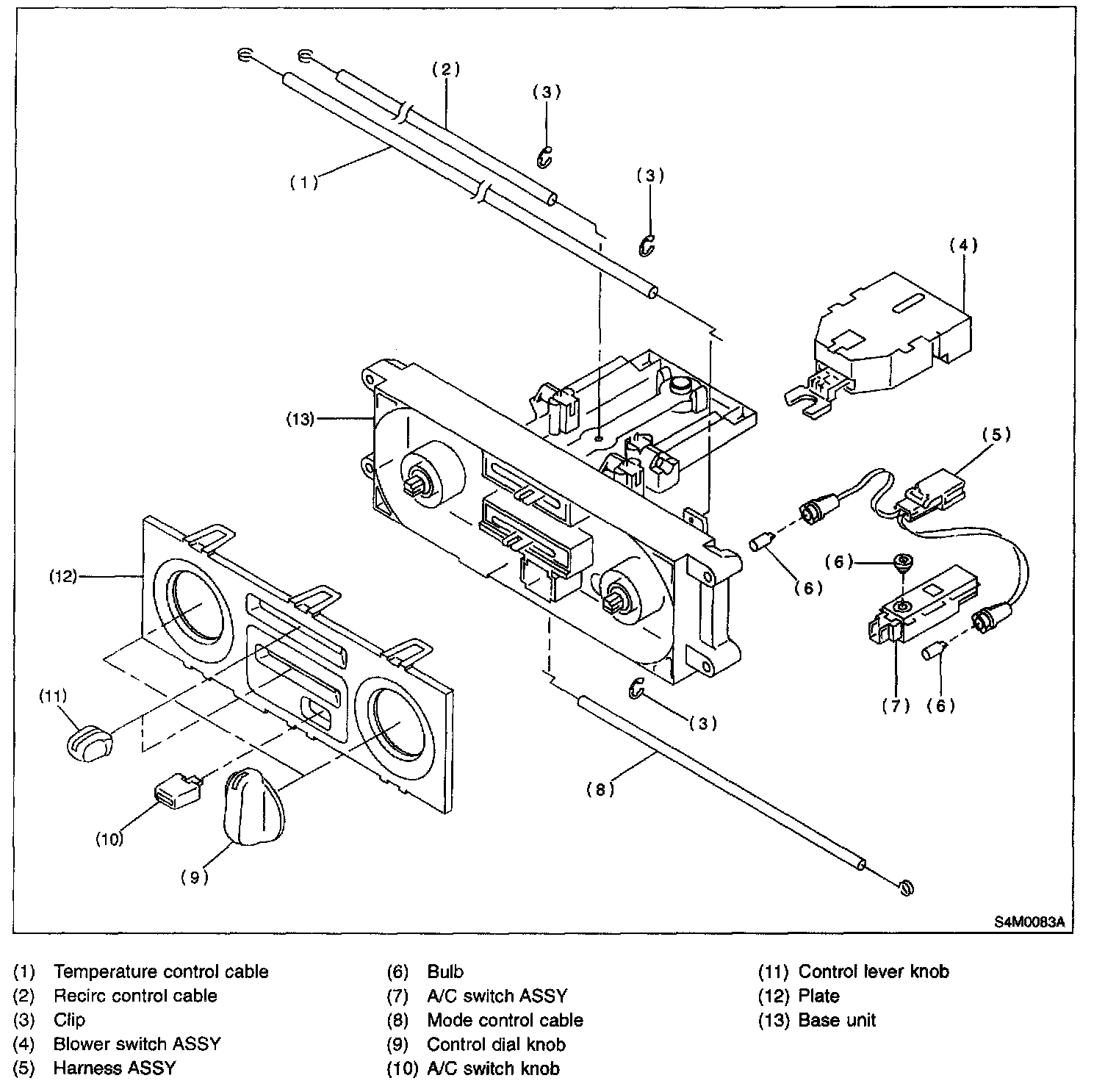

Control Assembly: Locations

Control Unit:
