Integrated Module Power Supply And Ground Line Wiring Diagram:

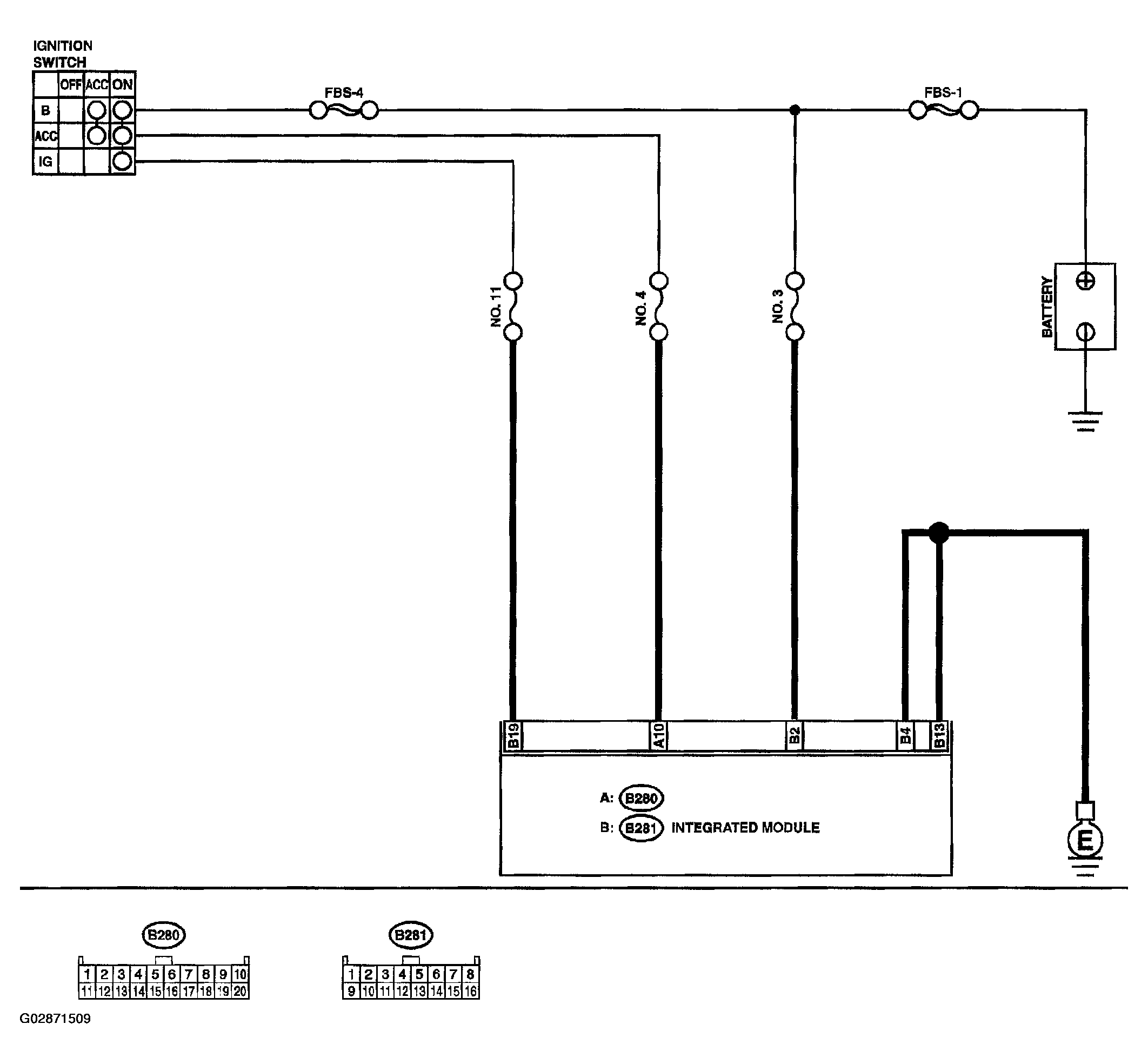

Fig 1: Integrated Module Power Supply And Ground Line Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

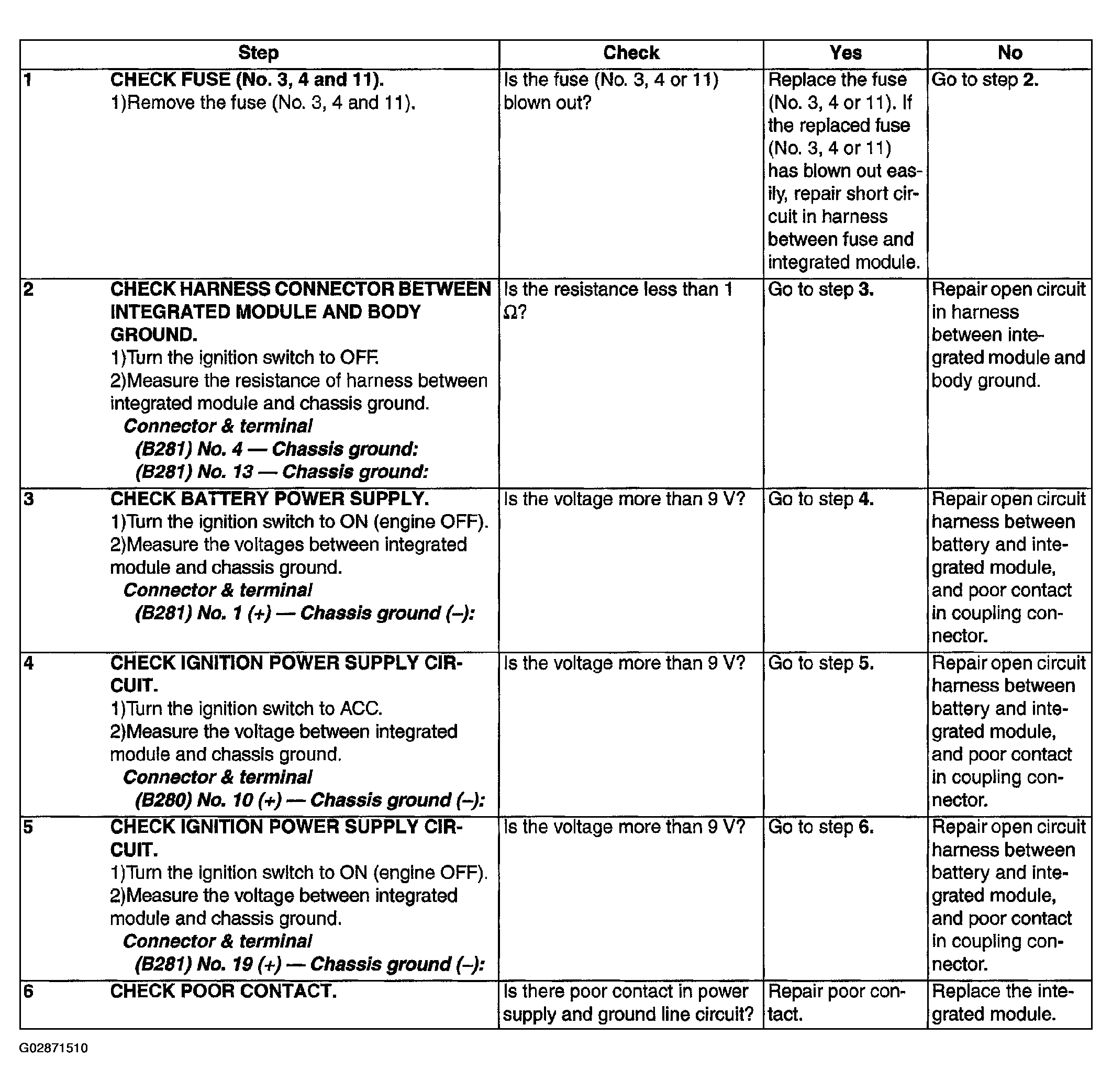

Fig 2: Inspection Table - Integrated Module Power Supply And Ground Line Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.
