Select Lever Shift Lock Cannot Be Released Wiring Diagram:

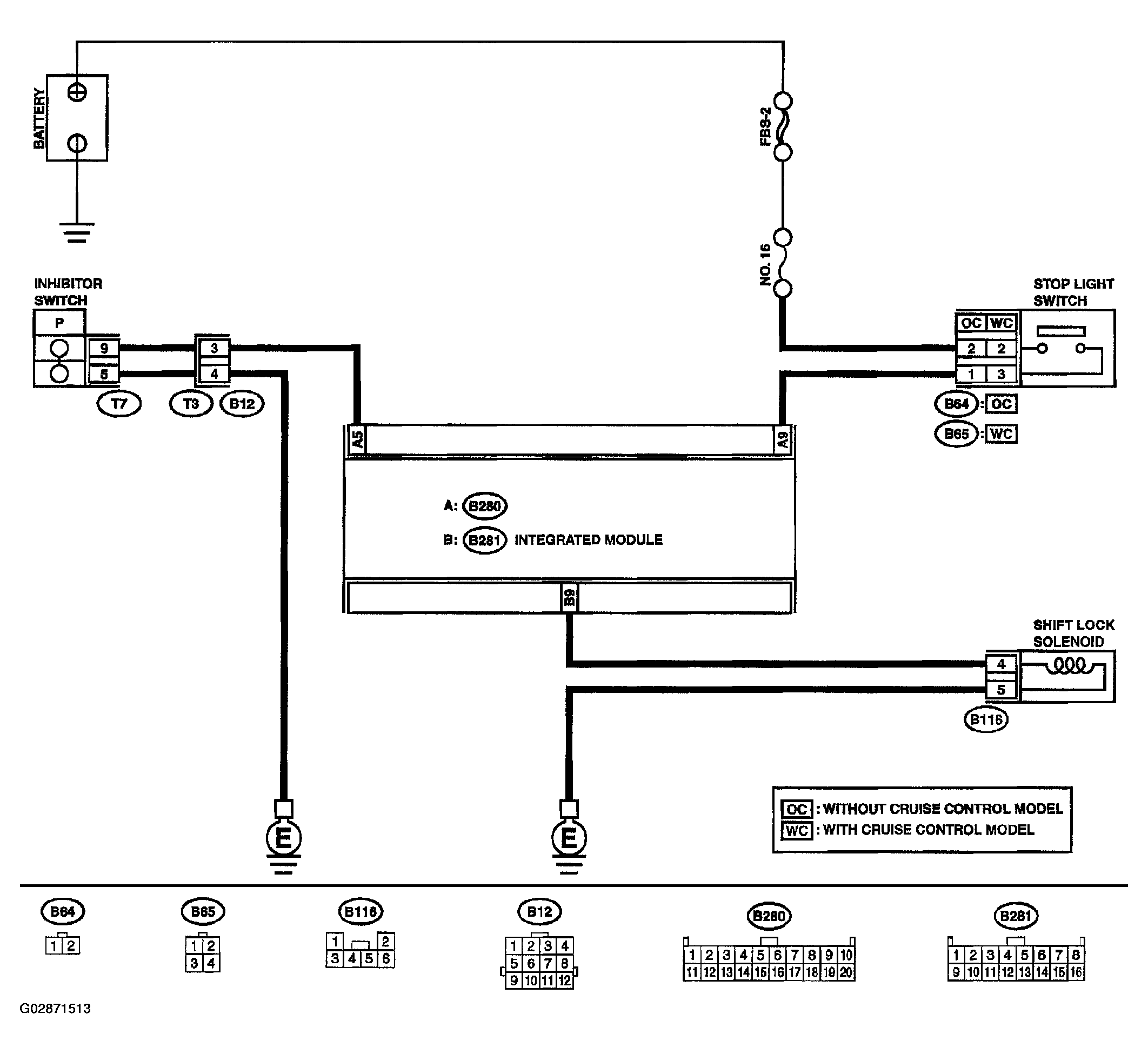

Fig 1: Select Lever Shift Lock Cannot Be Released Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

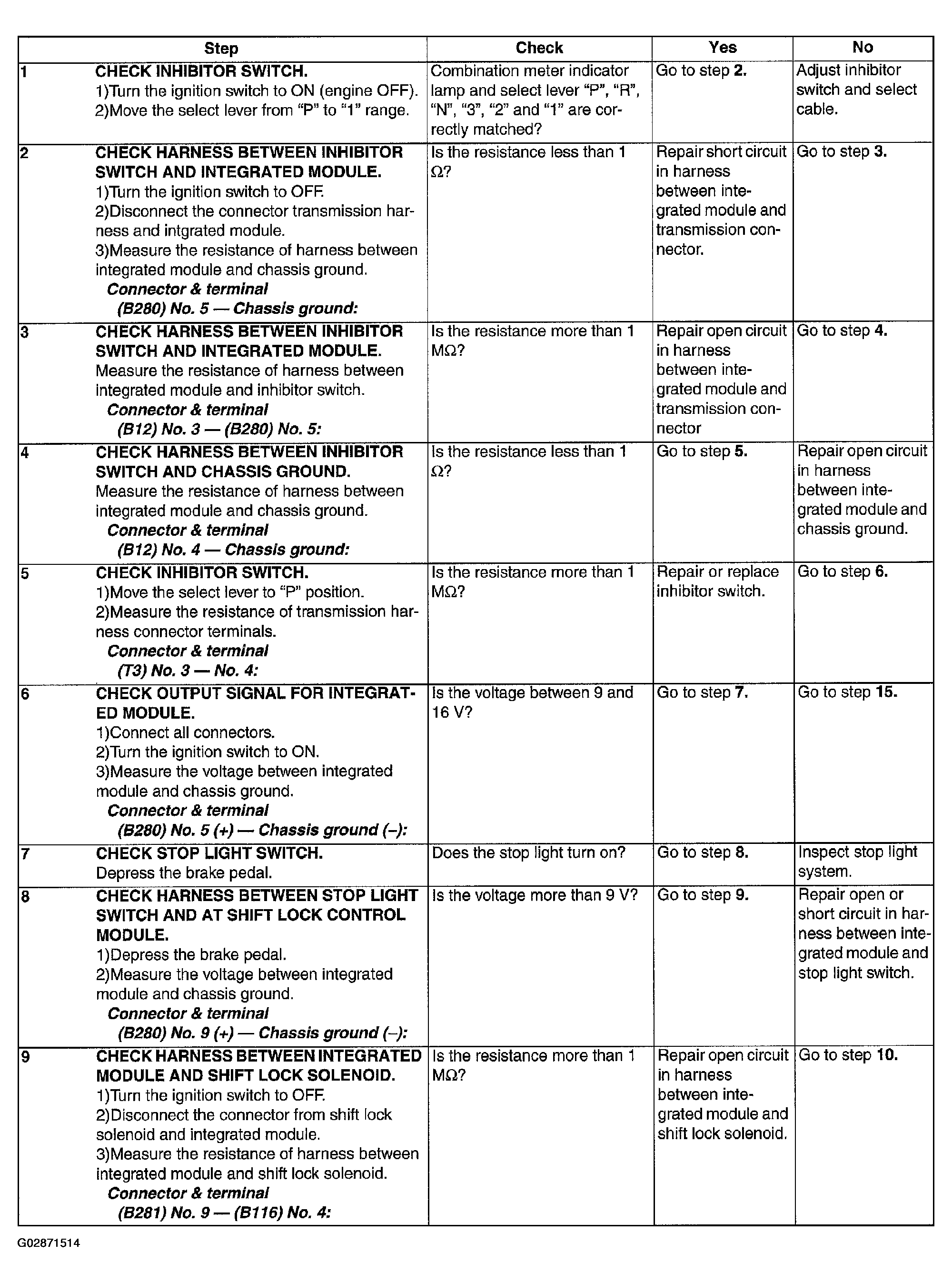

Fig 2: Inspection Table - Select Lever Shift Lock Cannot Be Released (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

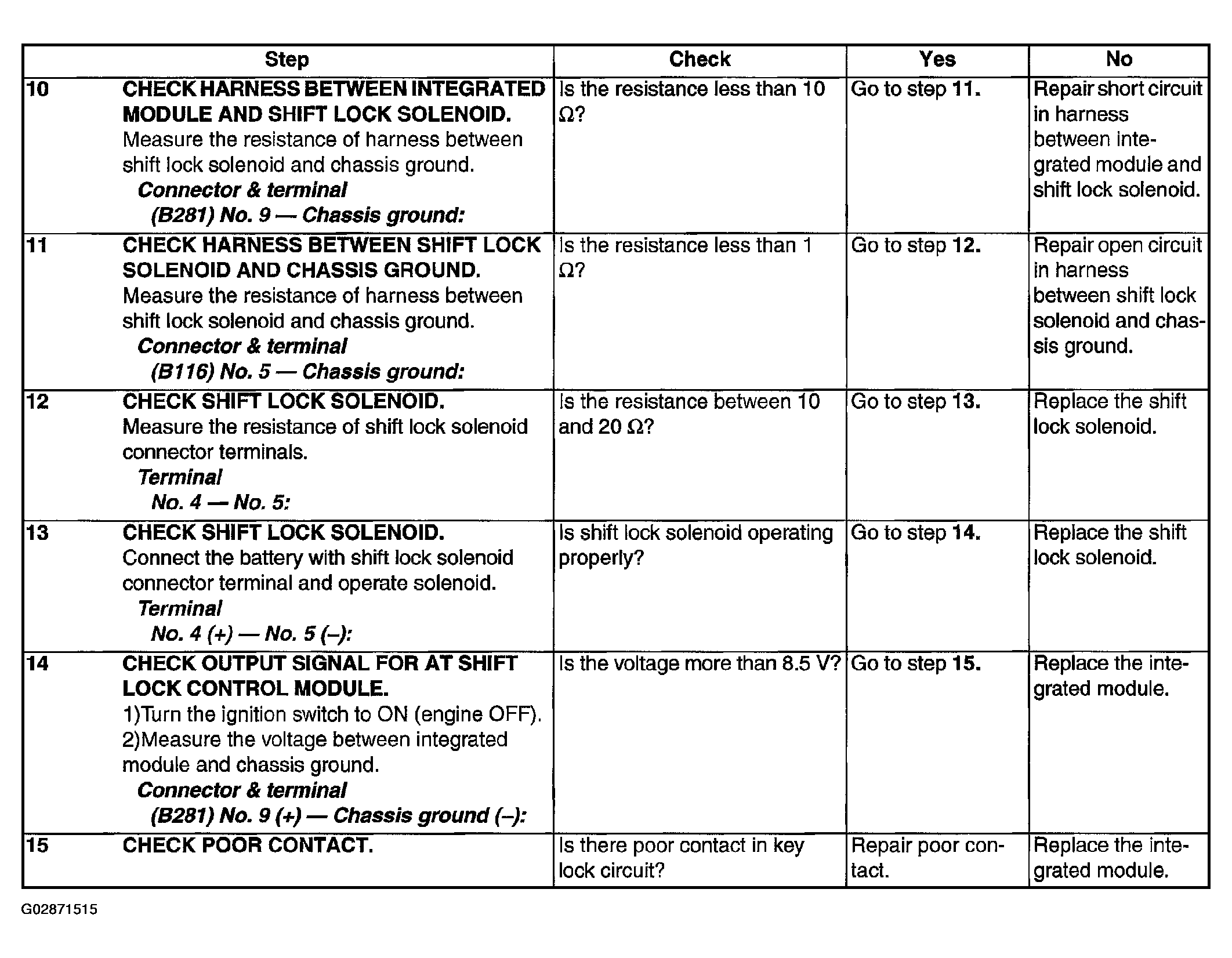

Fig 3: Inspection Table - Select Lever Shift Lock Cannot Be Released (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
