Abs Control Module And Hydraulic Control Unit (ABSCM & H/U): Installation

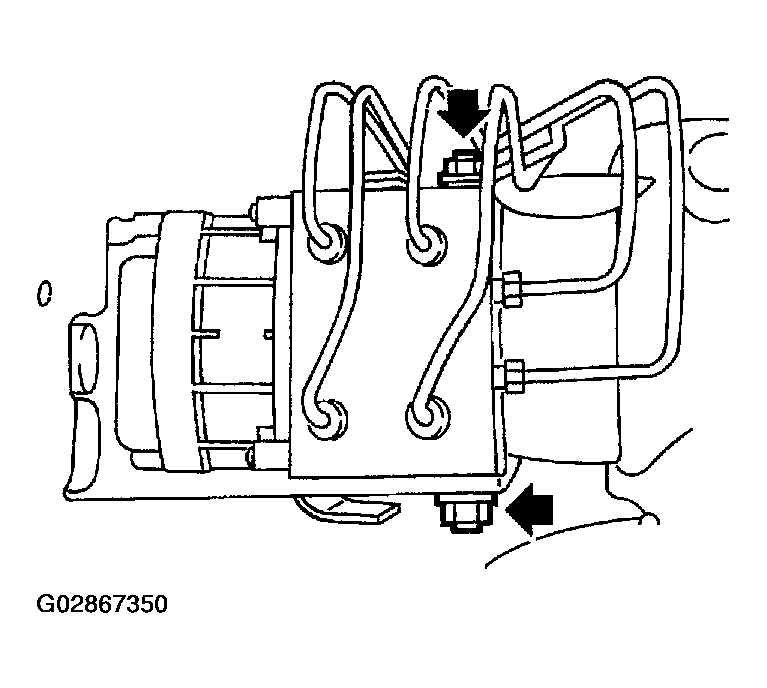

- Install the ABSCM & H/U bracket.
Tightening torque: 32 N.m (3.3 kgf-m, 24 ft-lb)
- Install the ABSCM & H/U.CAUTION: Confirm that the specifications of the ABSCM & H/U conforms to the vehicle specifications.
Tightening torque: 18 N.m (1.8 kgf-m, 13.0 ft-lb)
- Connect the brake pipes to their correct ABSCM & H/U connections.
Tightening torque: 15 N.m (1.5 kgf-m, 10.8 ft-lb)
- Using cable clip, secure the ABSCM & H/U harness to bracket.
- Connect the connector to the ABSCM & H/U.CAUTION:
- Be sure to remove all foreign matter from inside the connector before connecting.
- Ensure that the ABSCM & H/U connector is securely locked.
- Install the air intake duct. Non-turbo model:
< Ref. to INSTALLATION , Induction System SOHC.>
Install the air intake duct. Turbo model:
< Ref. to INSTALLATION , Induction System DOHC Turbo.>
- Bleed air from the brake system. < Ref. to BLEEDING BRAKE SYSTEM , Brakes.>
