Subaru
>>
2002
>>
Outback Base, 4D Sedan
>>
Repair and Diagnosis (Single Page)
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission (Diagnostics)
>>
Transmission Control Module (TCM) I/O Signal
>>
Electrical Specification
>>
With VDC System
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
With VDC System

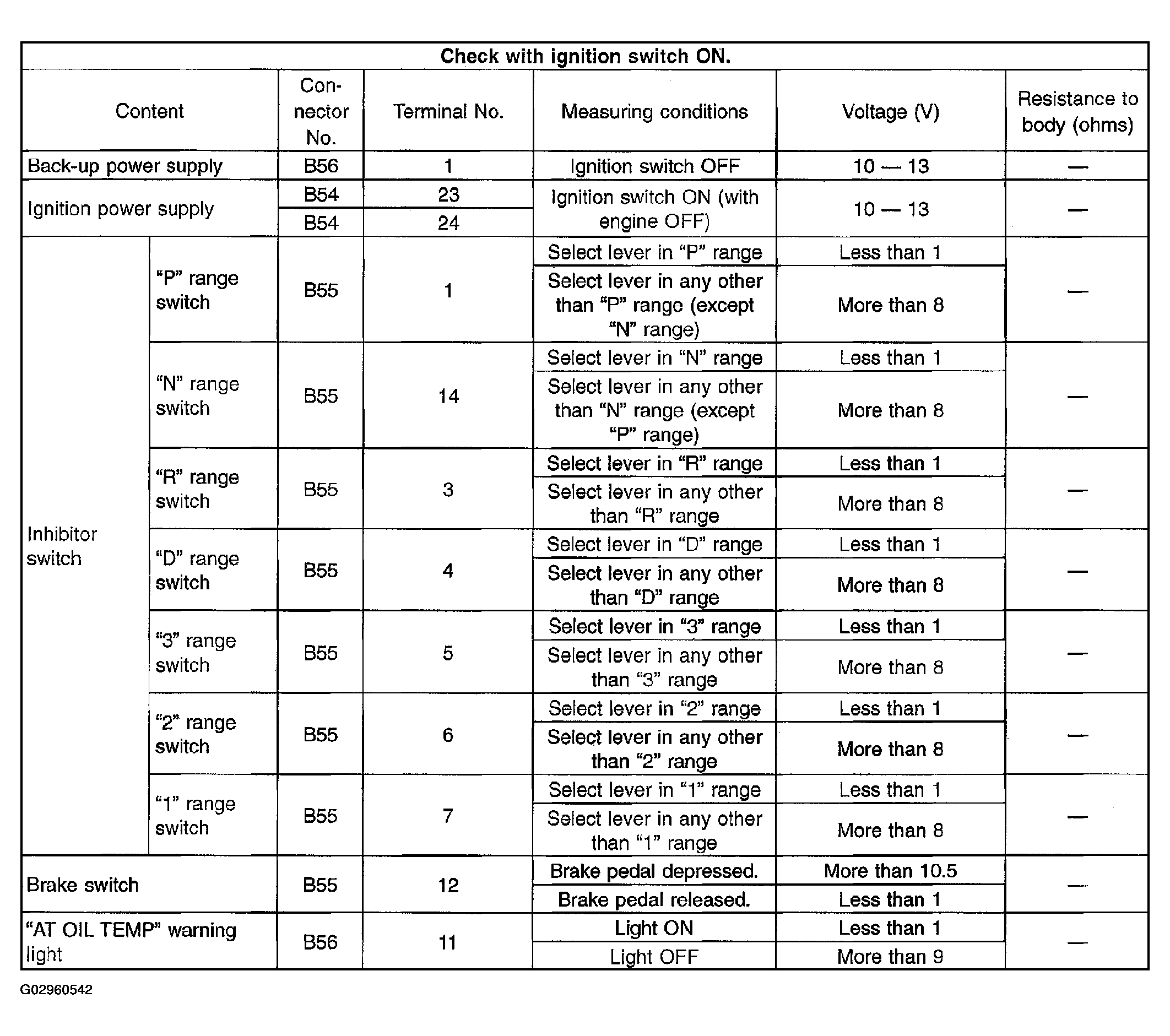

Fig 1: Identifying Transmission Control Module Connector Terminal - With VDC System (1 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

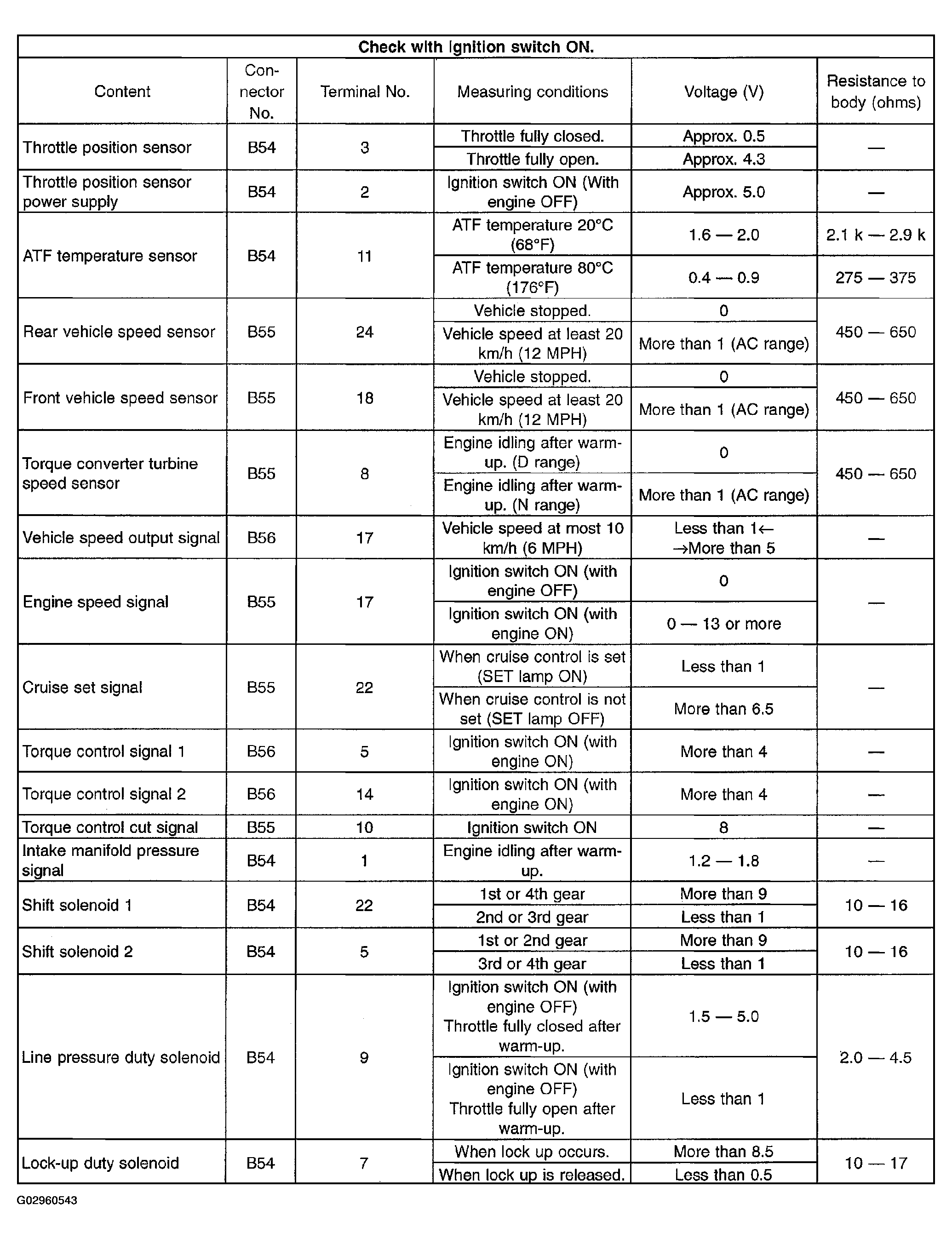

Fig 2: Identifying Transmission Control Module Connector Terminal - With VDC System (2 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

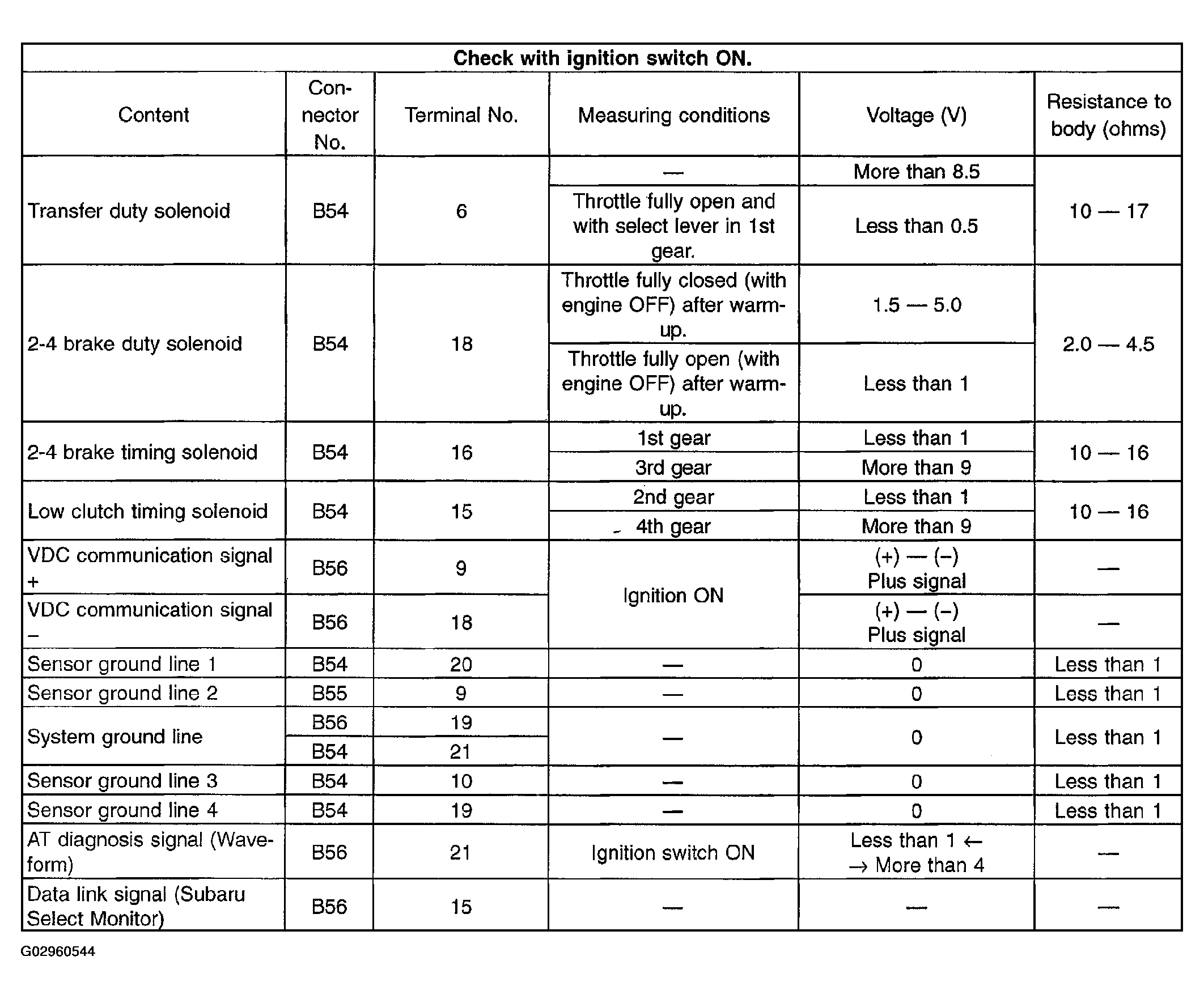

Fig 3: Identifying Transmission Control Module Connector Terminal - With VDC System (3 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

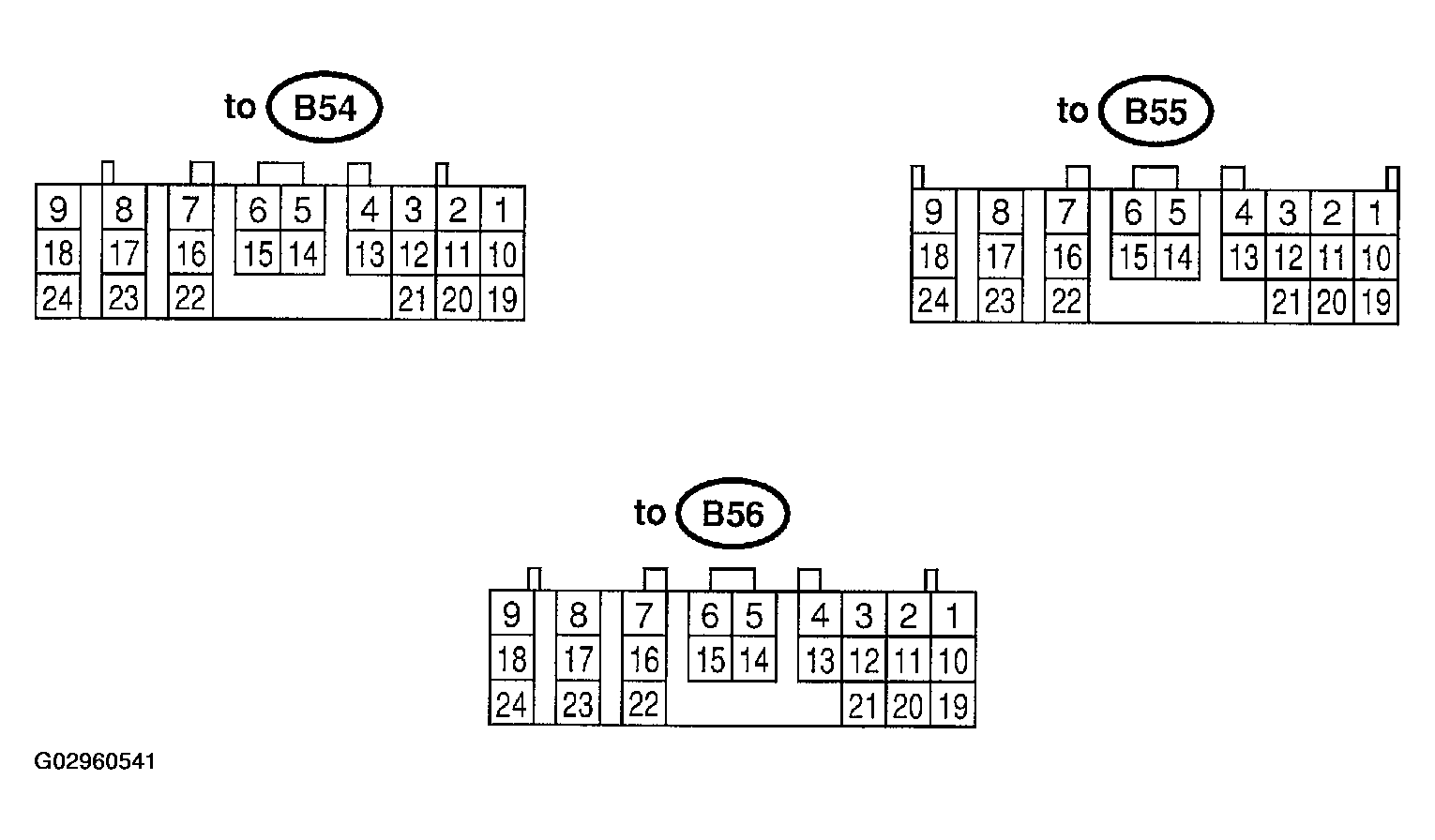

Fig 4: Identifying Transmission Control Module Connector Terminal - With VDC System (4 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
