Outback Base, 4D Sedan
>>
Repair and Diagnosis (Single Page)
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission (Diagnostics)
>>
Transmission Control Module (TCM) I/O Signal
>>
Schematic
>>
With VDC System
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
With VDC System

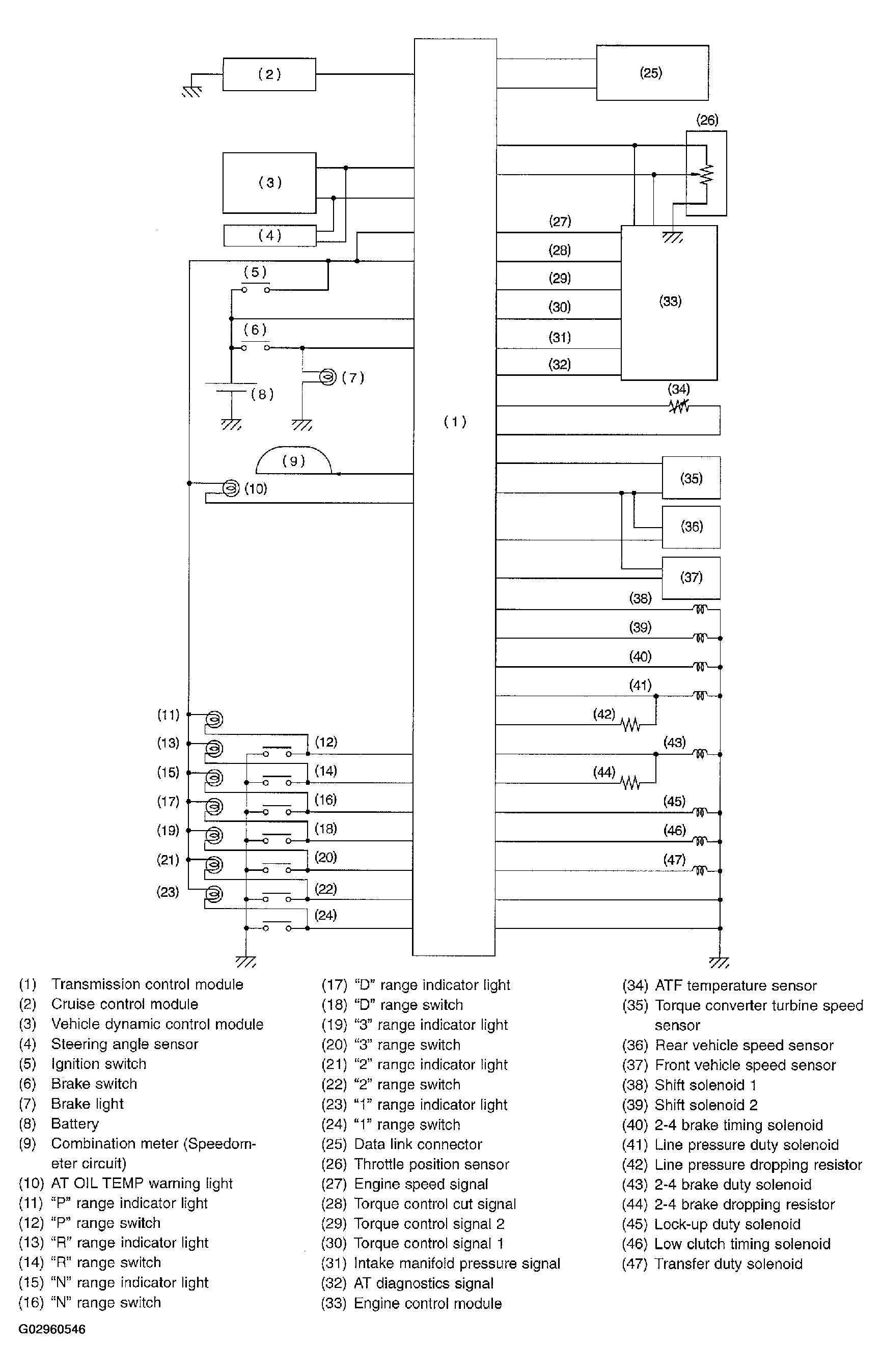

Fig 1: Transmission Control Module Schematic - With VDC System
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
