Fuel Level Sensor: Removal

WARNING:
  • Place "NO FIRE" signs near the working area.
  • Be careful not to spill fuel on the floor.
NOTE: Fuel level sensor is built in fuel pump assembly.
  1. Remove fuel pump assembly. < Ref. to , REMOVAL  , Fuel Pump. >
  2. Disconnect connector from fuel pump bracket.

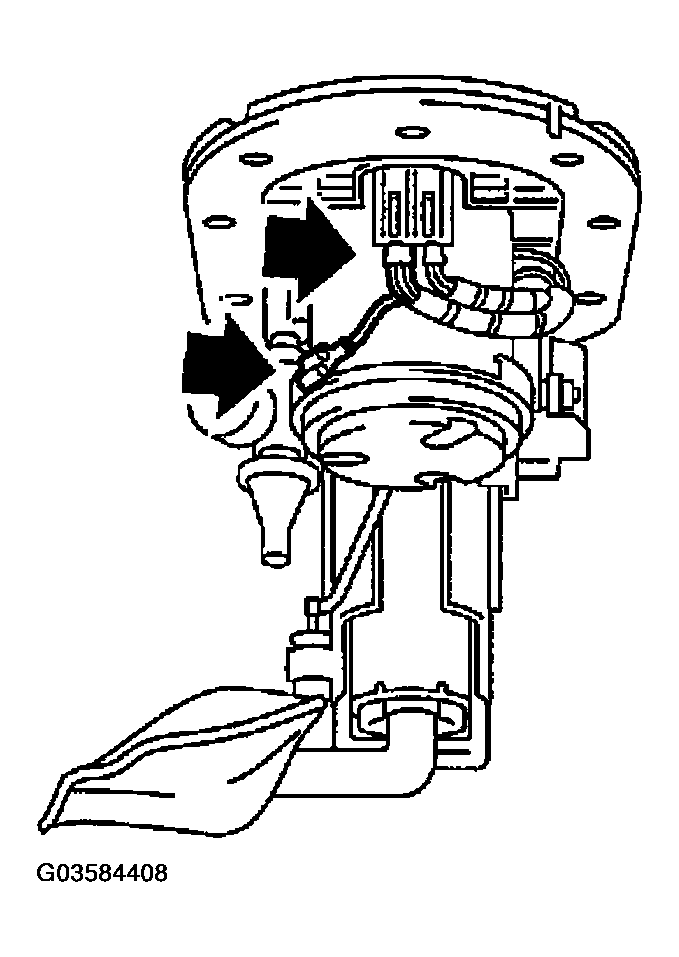

    Fig 1: Disconnecting Connector From Fuel Pump Bracket
    G03584408Courtesy of SUBARU OF AMERICA, INC.
  3. Pushing the pawls with a screwdriver, remove fuel meter unit by pulling it downwards.
    NOTE: Replace fuel filter pawls with new ones as they might break when removed.

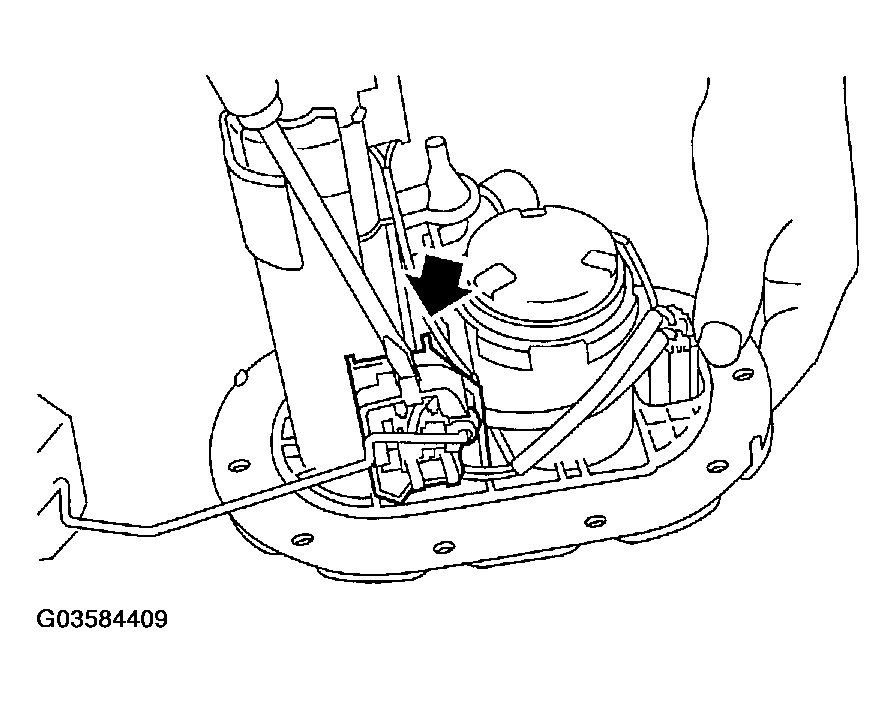

    Fig 2: Replacing Fuel Filter Pawls
    G03584409Courtesy of SUBARU OF AMERICA, INC.
