Intake Manifold Pressure Sensor: Installation

Install in the reverse order of removal.

Tightening torque:

1.6 N.m (0.16 kgf-m, 1.2 ft-lb)

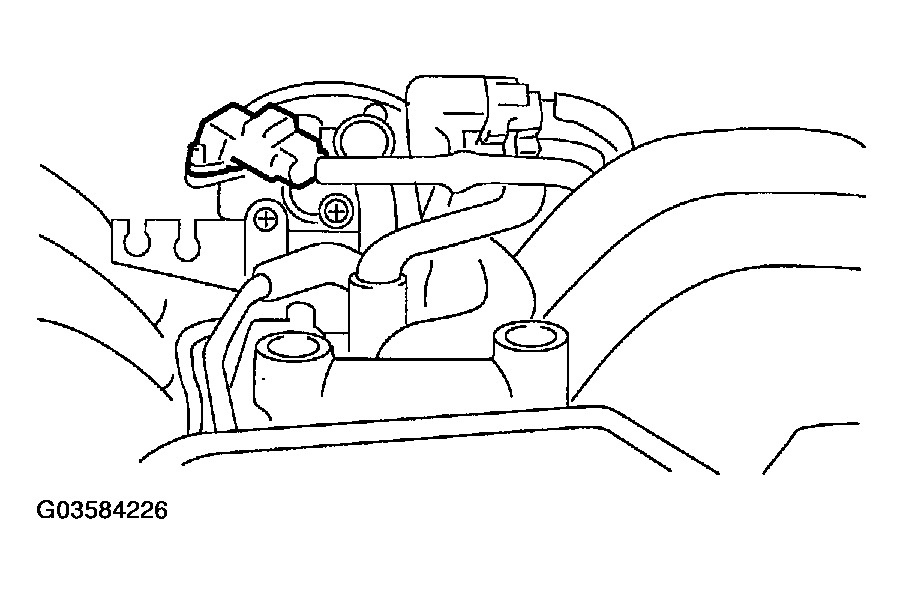

Fig 1: Installing Intake Manifold Pressure Sensor

Courtesy of SUBARU OF AMERICA, INC.
