Intake Manifold: Disassembly

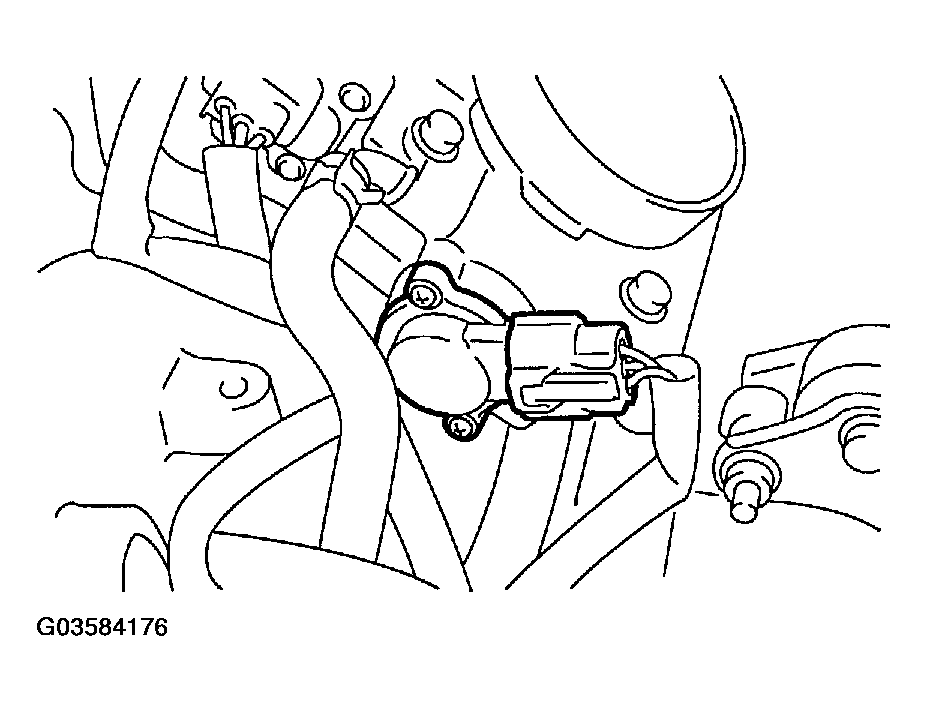

Disconnect connectors from throttle position sensor.

Fig 1: Disconnecting Connectors From Throttle Position Sensor
Courtesy of SUBARU OF AMERICA, INC.

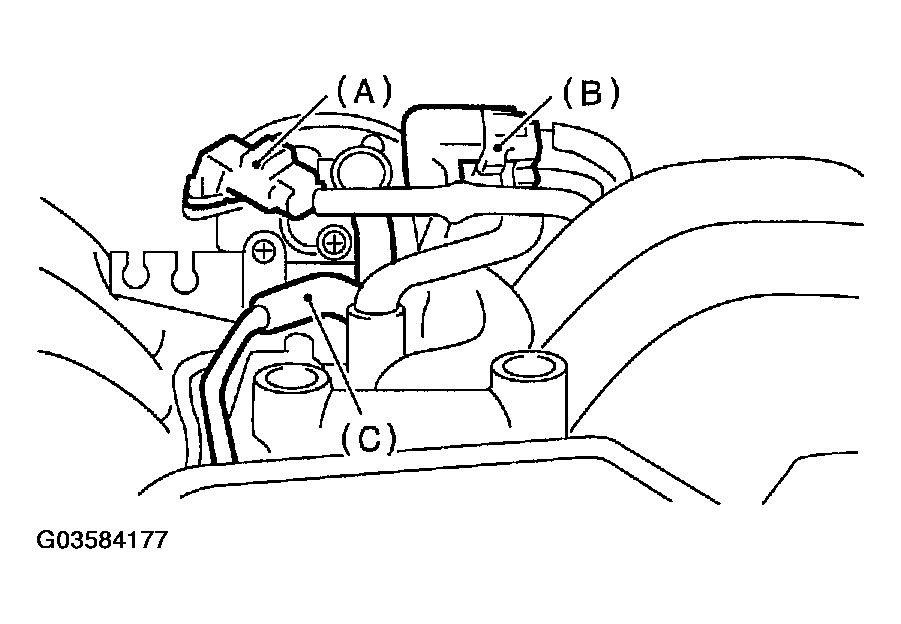

Disconnect connectors from intake manifold pressure sensor (B) and idle air control solenoid valve (A).
Disconnect air by-pass hose (C) from idle air control solenoid valve.

Fig 2: Disconnecting Air By-Pass Hose (C) From Idle Air Control Solenoid Valve
Courtesy of SUBARU OF AMERICA, INC.

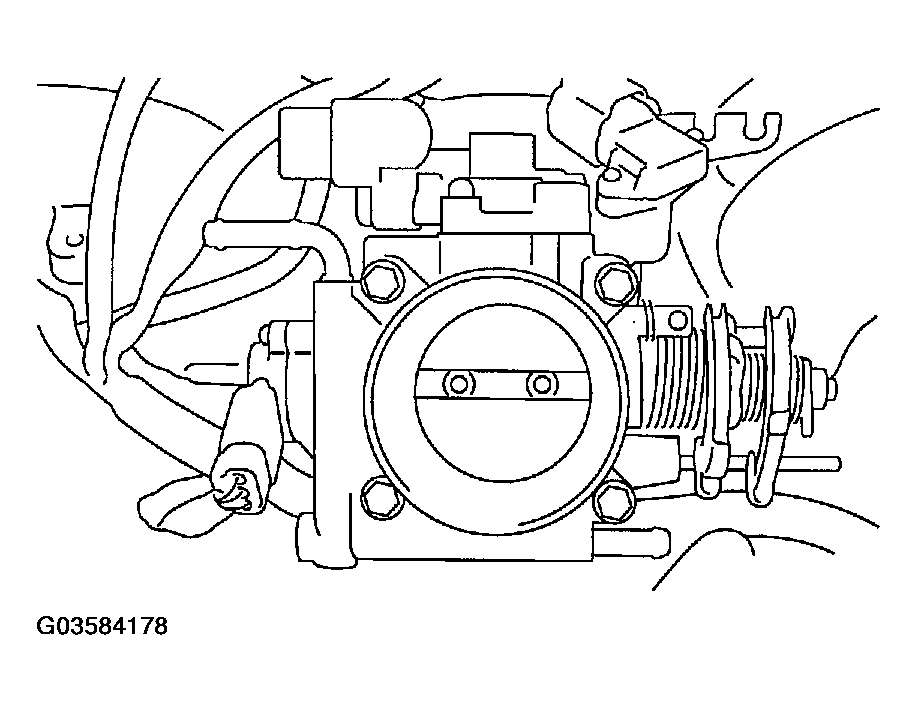

Remove throttle body.

Fig 3: Removing Throttle Body
Courtesy of SUBARU OF AMERICA, INC.
Remove induction valve.

Fig 4: Removing Induction Valve
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector from induction valve control solenoid.
Remove induction valve control solenoid.

Fig 5: Removing Induction Valve Control Solenoid
Courtesy of SUBARU OF AMERICA, INC.

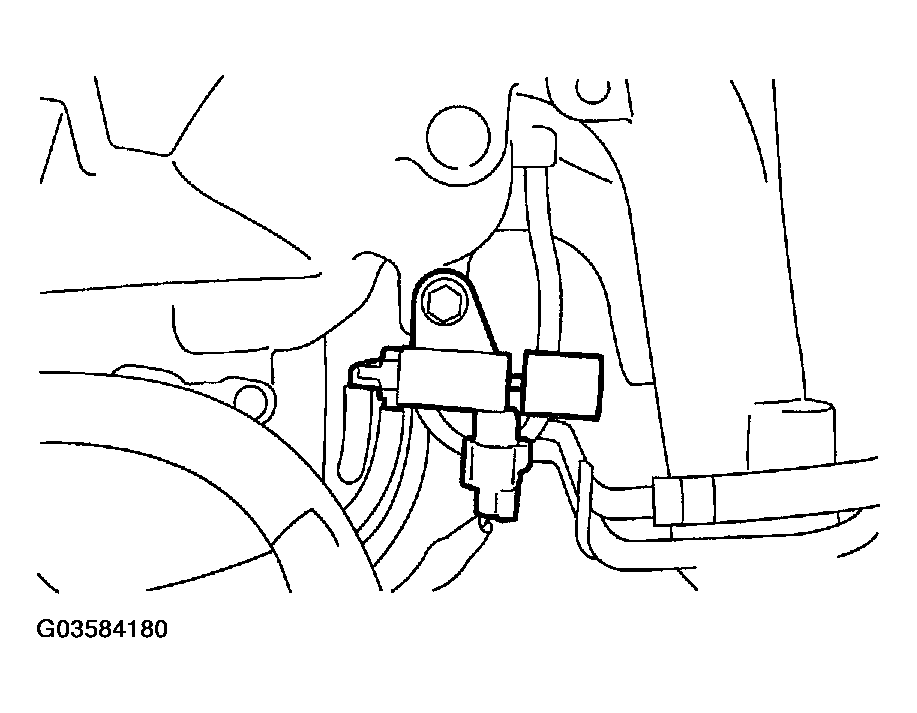

Disconnect connector from purge control solenoid valve.
Remove purge control solenoid valve.

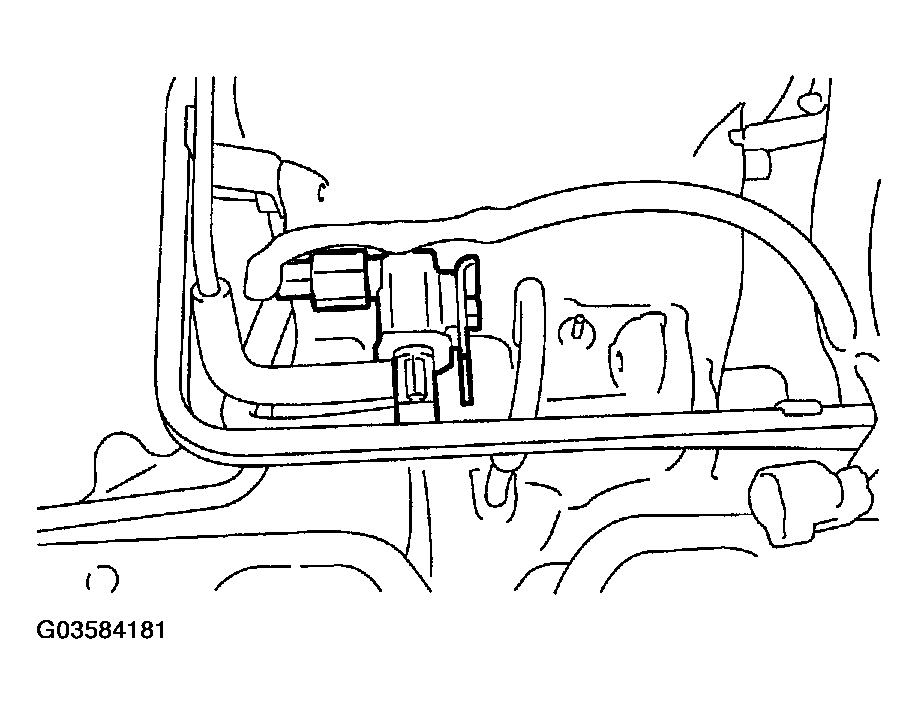

Fig 6: Removing Purge Control Solenoid Valve
Courtesy of SUBARU OF AMERICA, INC.

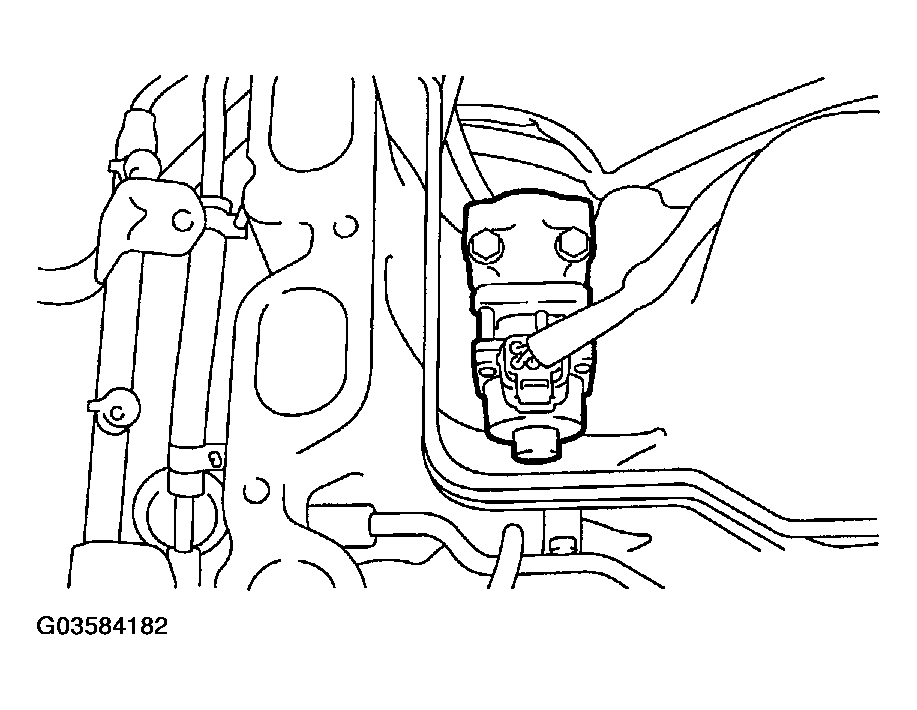

Disconnect connector from EGR valve.
Remove EGR valve.

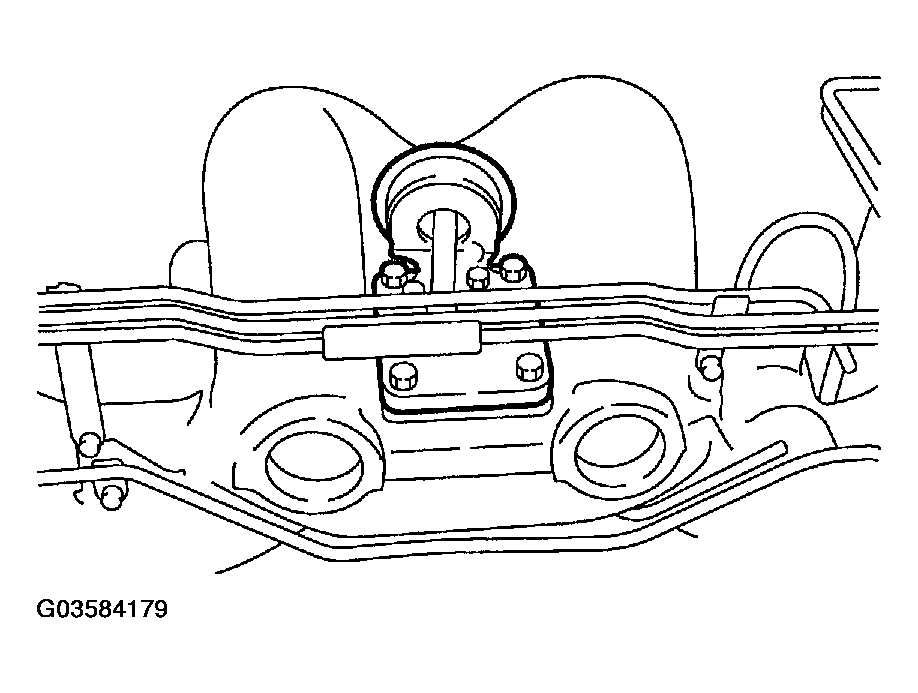

Fig 7: Removing EGR Valve
Courtesy of SUBARU OF AMERICA, INC.
Remove engine harness assembly from intake manifold.

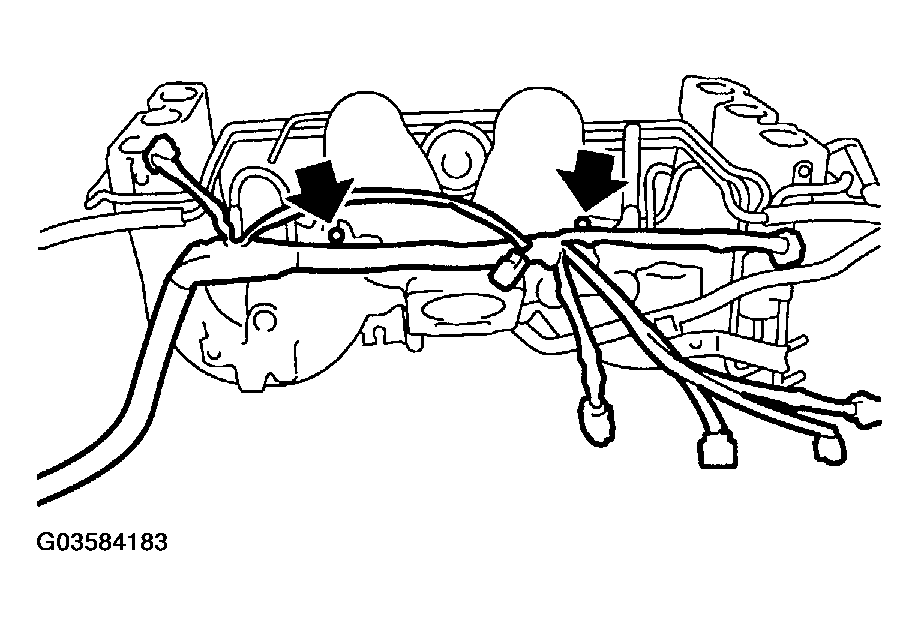

Fig 8: Removing Engine Harness Assembly From Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Remove PCV pipe from intake manifold.

Fig 9: Removing PCV Pipe From Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Remove air assist and purge pipe assembly.

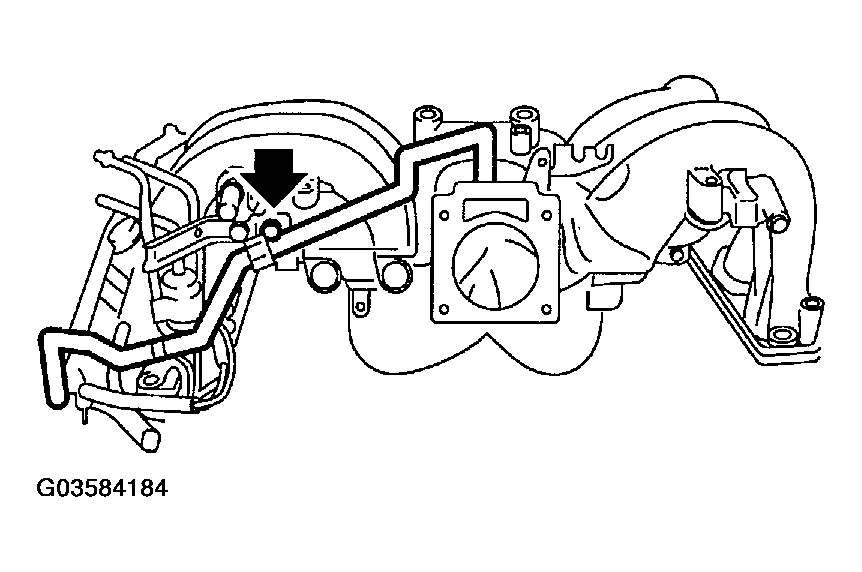

Fig 10: Removing Air Assist And Purge Pipe Assembly
Courtesy of SUBARU OF AMERICA, INC.

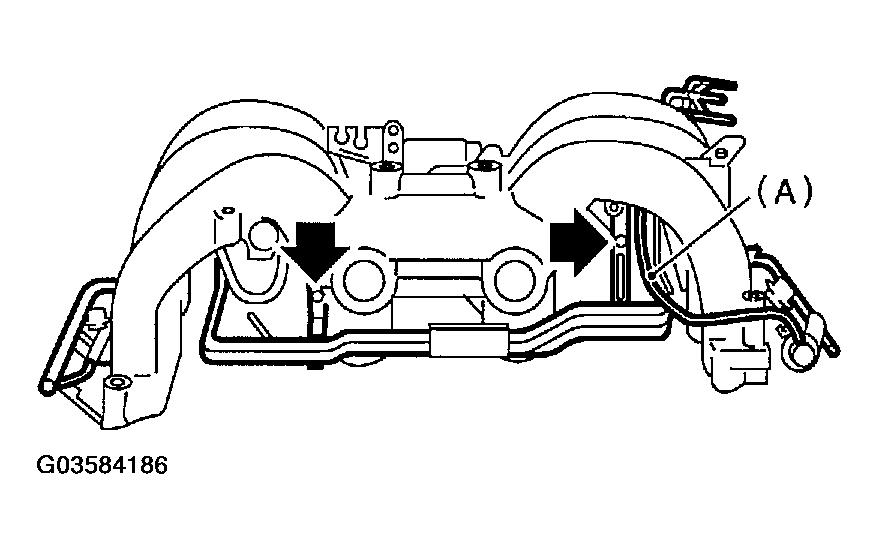

Disconnect pressure regulator vacuum hose (A) from intake manifold.
Remove fuel pipe and injector pipe assembly.

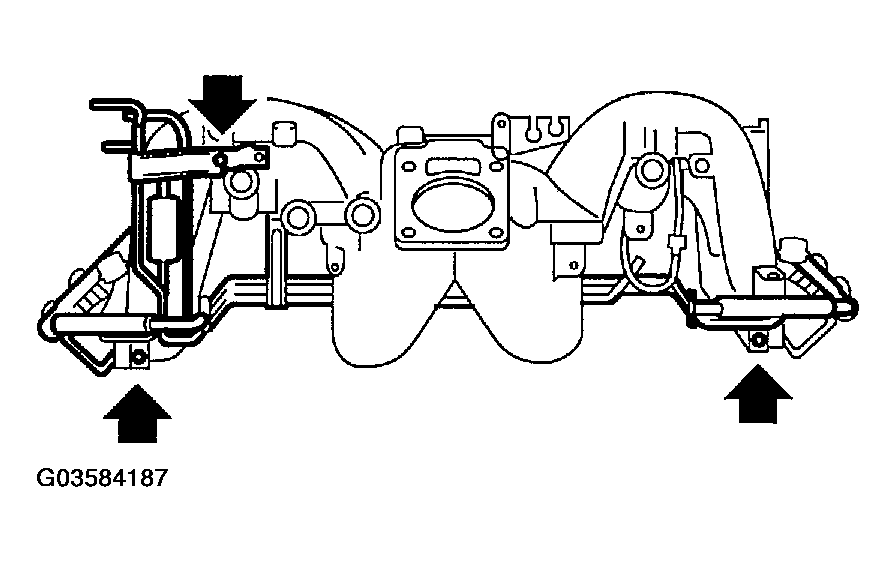

Fig 11: Removing Fuel Pipe And Injector Pipe Assembly (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

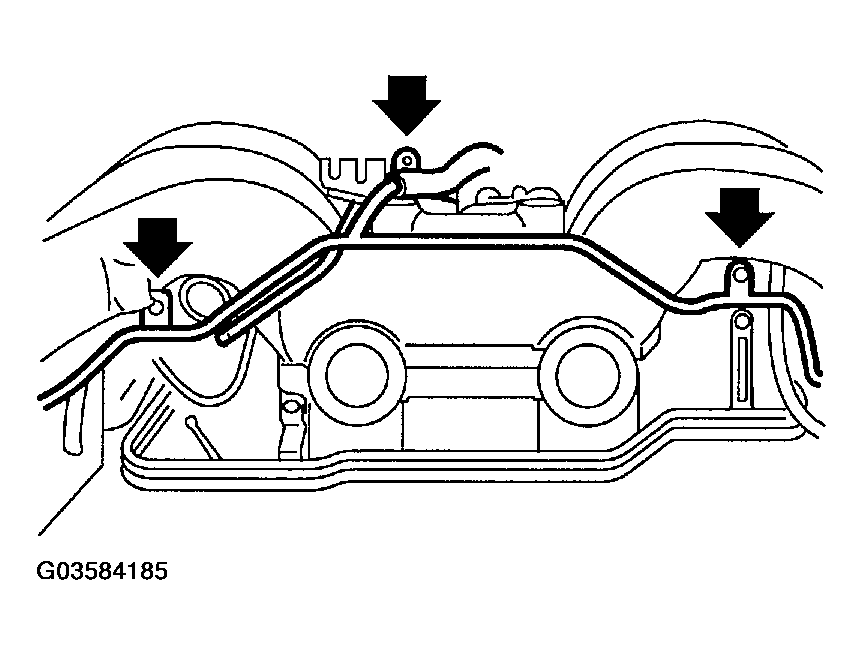

Fig 12: Removing Fuel Pipe And Injector Pipe Assembly (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

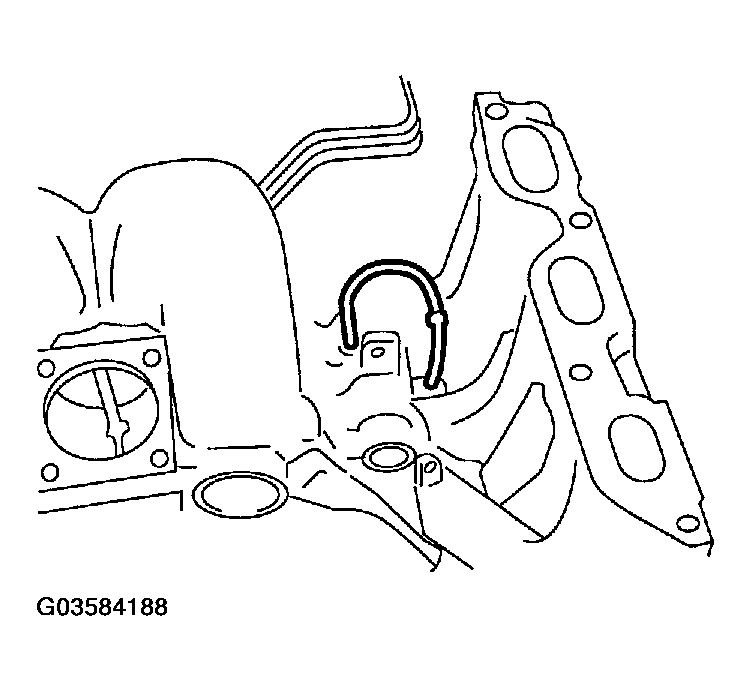

Remove induction valve vacuum hose from intake manifold.

Fig 13: Removing Induction Valve Vacuum Hose From Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
