Knock Sensor: Removal

Disconnect battery ground cable from battery.

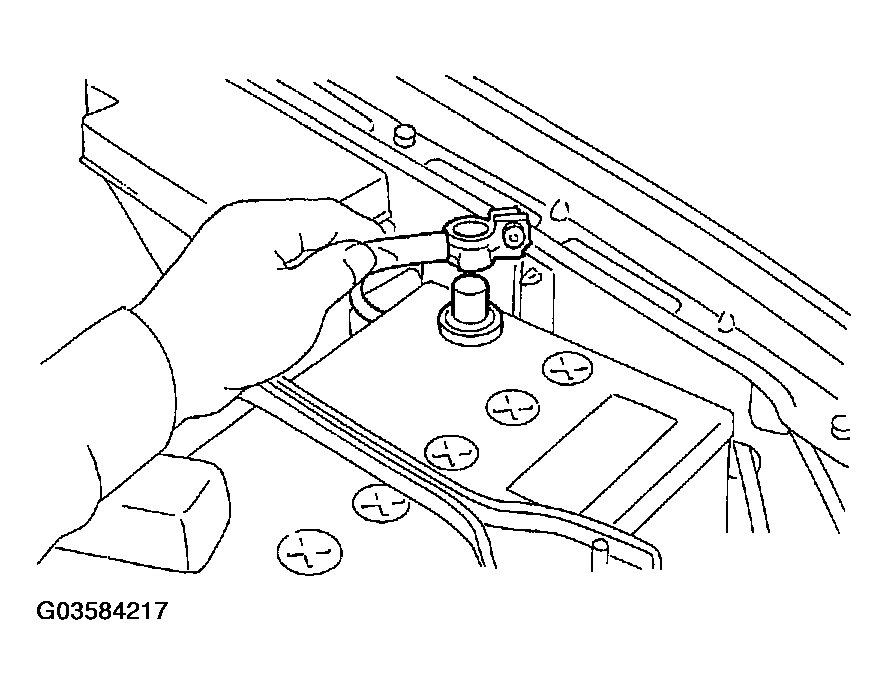

Fig 1: Disconnecting Battery Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove intake manifold.
< Ref. to ,REMOVAL , Intake Manifold. >
Disconnect knock sensor connector.
Remove knock sensor from cylinder block.

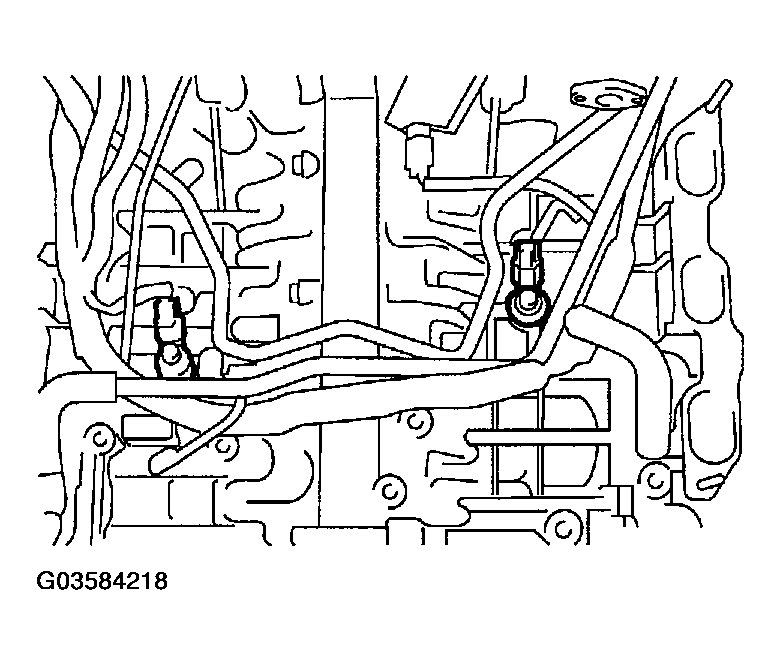

Fig 2: Removing Knock Sensor From Cylinder Block
Courtesy of SUBARU OF AMERICA, INC.
