Non-Turbo Model

WARNING: This page is about a different car, the 2002 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

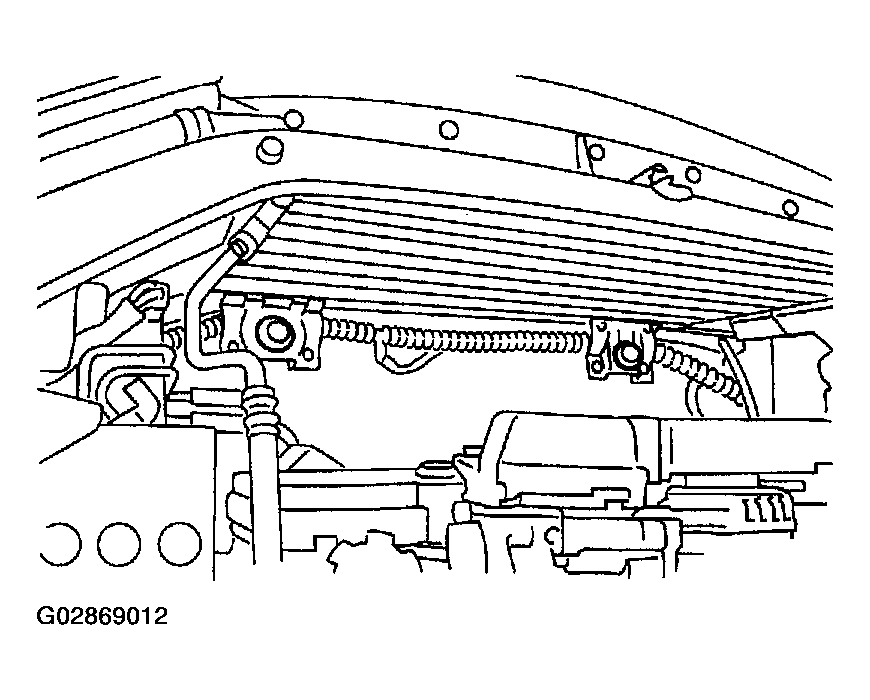

Attach the radiator mounting cushions to holes on the vehicle.

Fig 1: Attaching The Radiator Mounting Cushions
Courtesy of SUBARU OF AMERICA, INC.

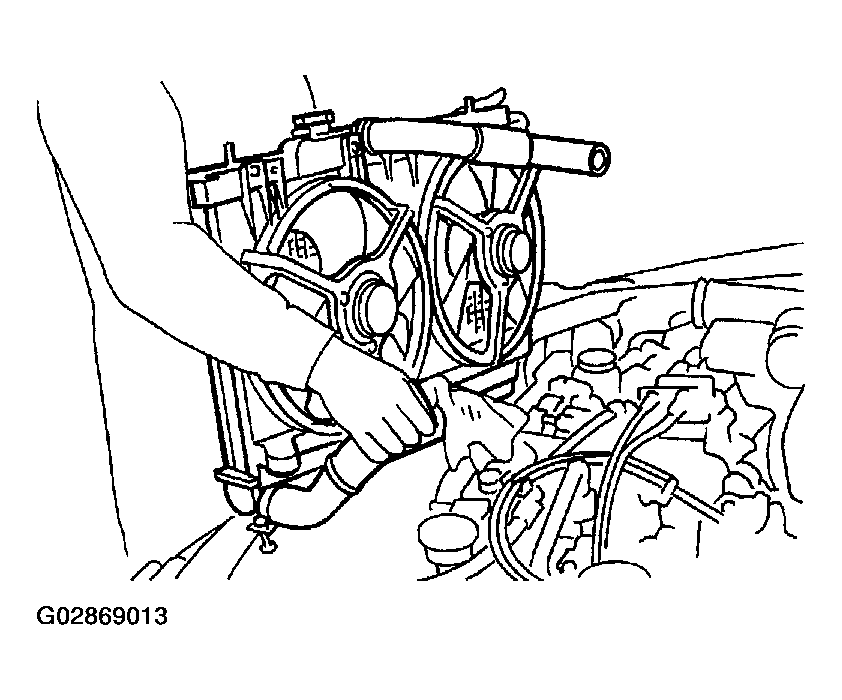

Install the radiator while fitting radiator pins to cushions.
NOTE: Fit pins on lower side of radiator into cushions on body side.

Fig 2: Installing The Radiator
Courtesy of SUBARU OF AMERICA, INC.

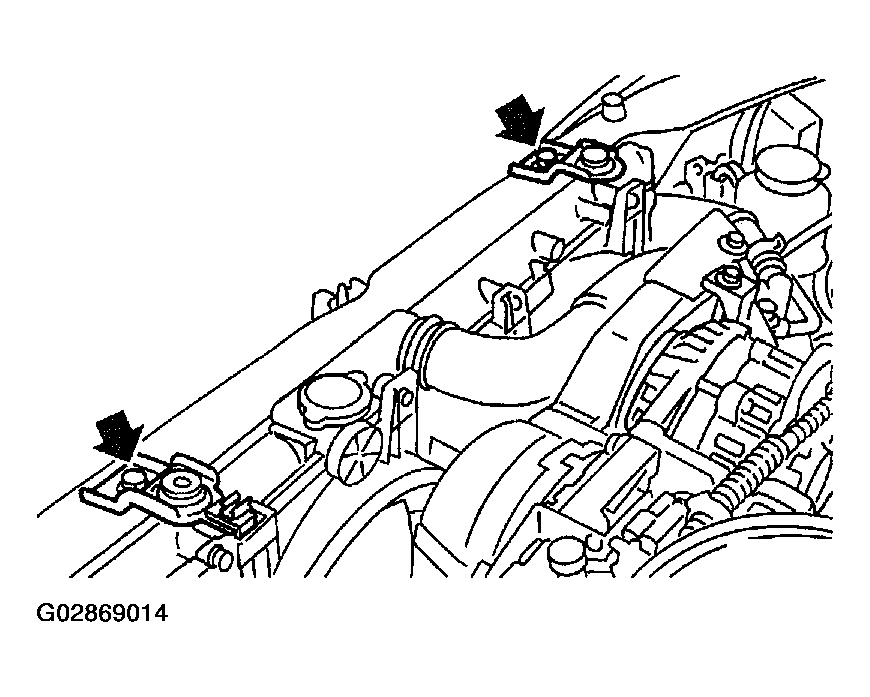

Install the radiator brackets and tighten the bolts.
Tightening torque: 12 N.m (1.2 kgf-m, 8.7 ft-lb)

Fig 3: Installing The Radiator Brackets
Courtesy of SUBARU OF AMERICA, INC.

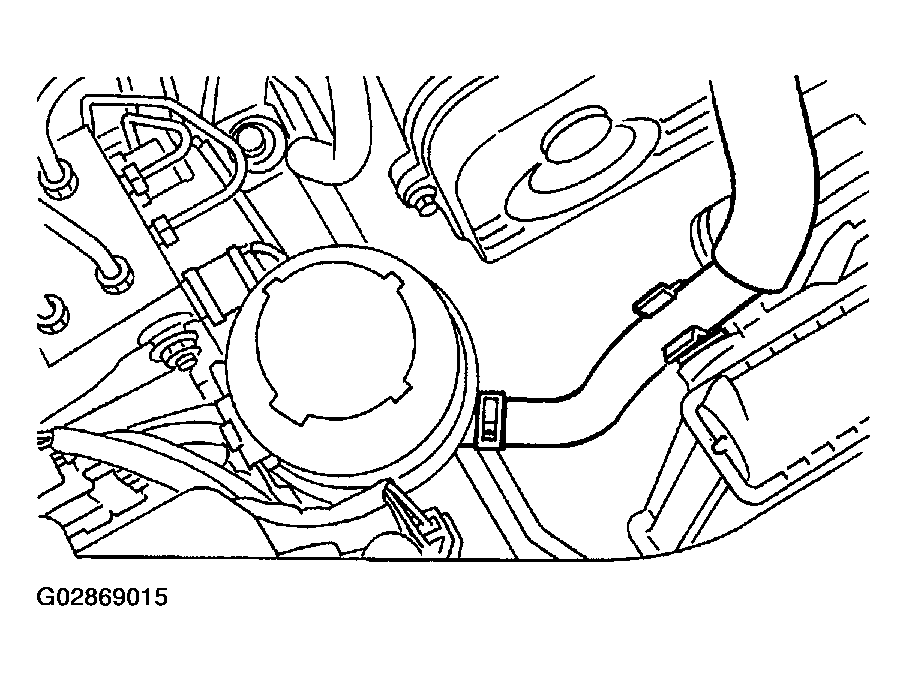

Attach the power steering hose to the radiator.

Fig 4: Attaching The Power Steering Hose
Courtesy of SUBARU OF AMERICA, INC.

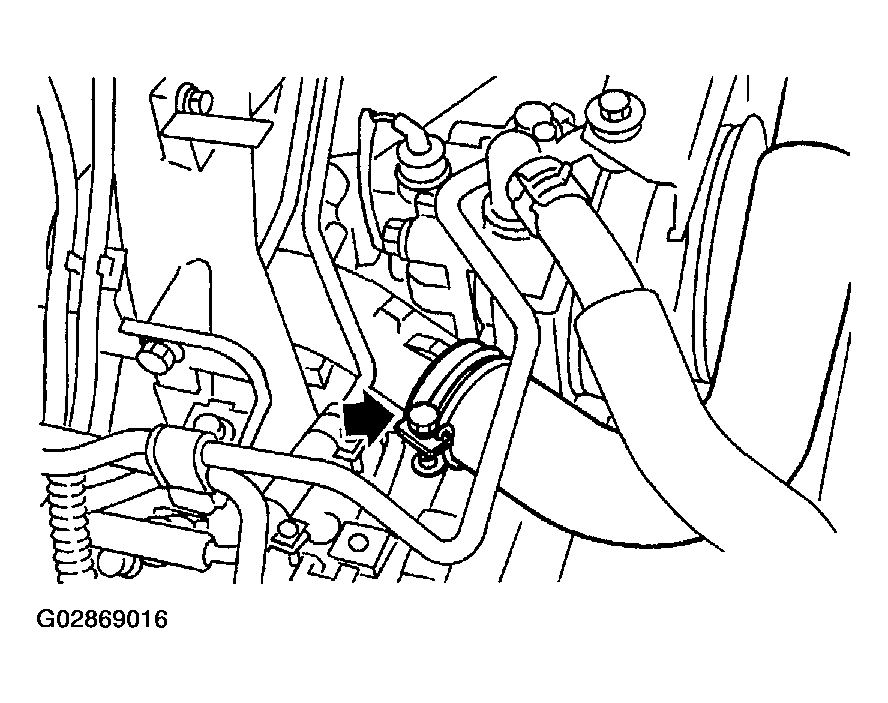

Connect the radiator inlet hose.

Fig 5: Connecting The Radiator Inlet Hose
Courtesy of SUBARU OF AMERICA, INC.

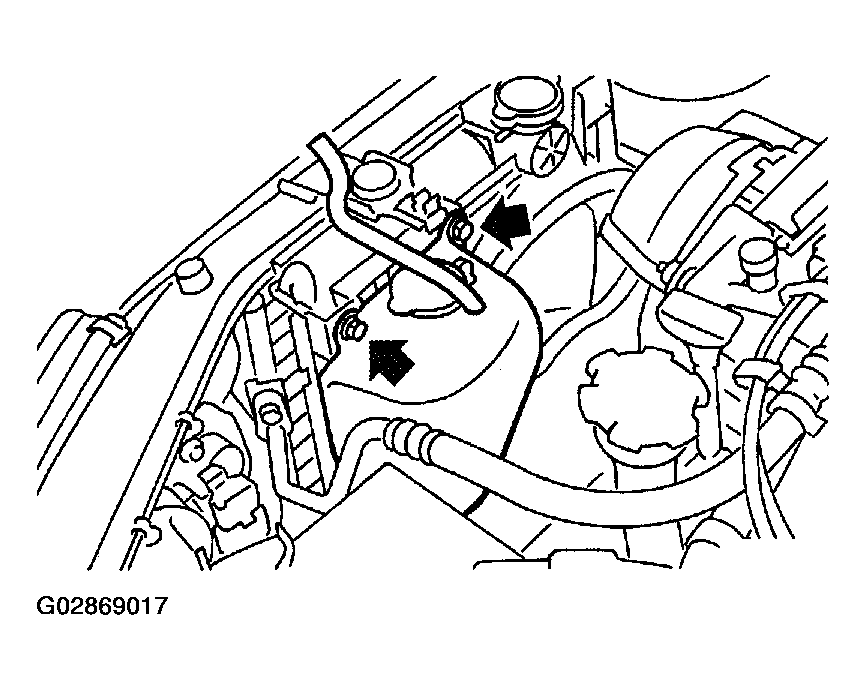

Install the reservoir tank.
Tightening torque: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

Fig 6: Installing The Reservoir Tank
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.

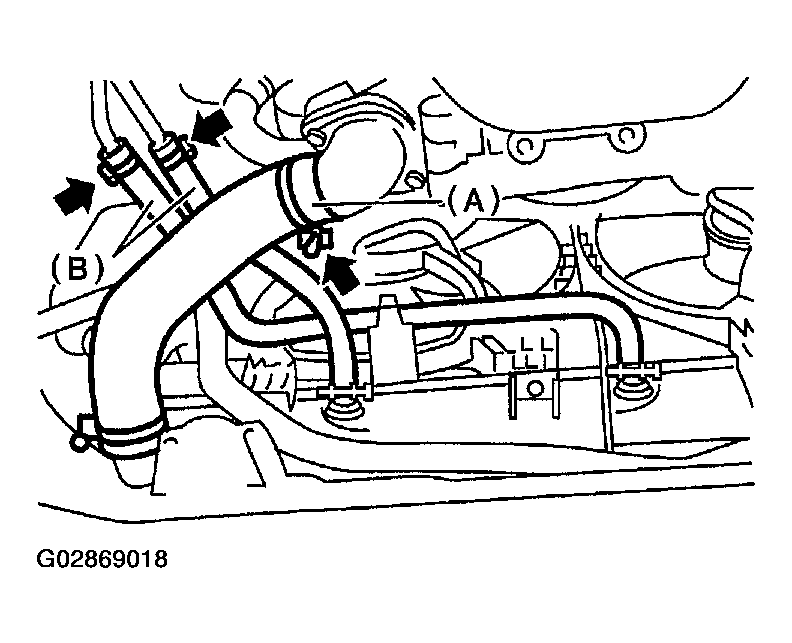

Connect the radiator outlet hose (A).

Fig 7: Connecting The Radiator Outlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Connect the ATF cooler hoses (B). (AT vehicles only)
Connect the connectors to the radiator main fan motor (A) and sub fan motor (B).

Fig 8: Connecting The Connector To The Radiator Main Fan Motor
Courtesy of SUBARU OF AMERICA, INC.

Fig 9: Connecting The Connector To The Radiator Sub Fan Motor
Courtesy of SUBARU OF AMERICA, INC.
Install the undercover.
Lower the vehicle.

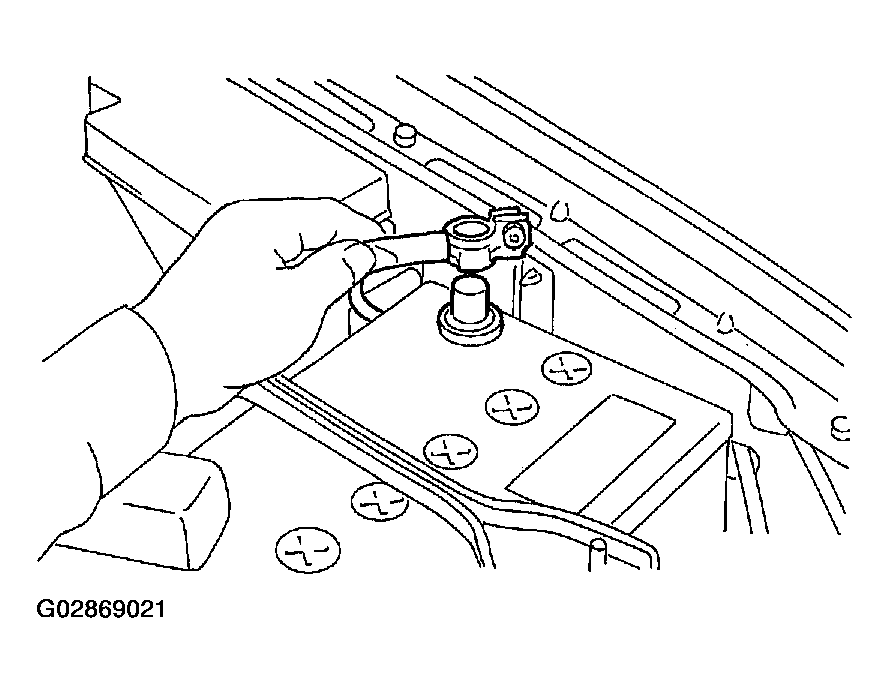

Connect the battery ground cable.

Fig 10: Connecting The Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Fill coolant. Refer to FILLING OF ENGINE COOLANT . >
Check ATF level. (AT vehicles only). Refer to A/T SERVICING .
