Turbo Model

WARNING: This page is about a different car, the 2002 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Attach the radiator mounting cushions to holes on the vehicle.

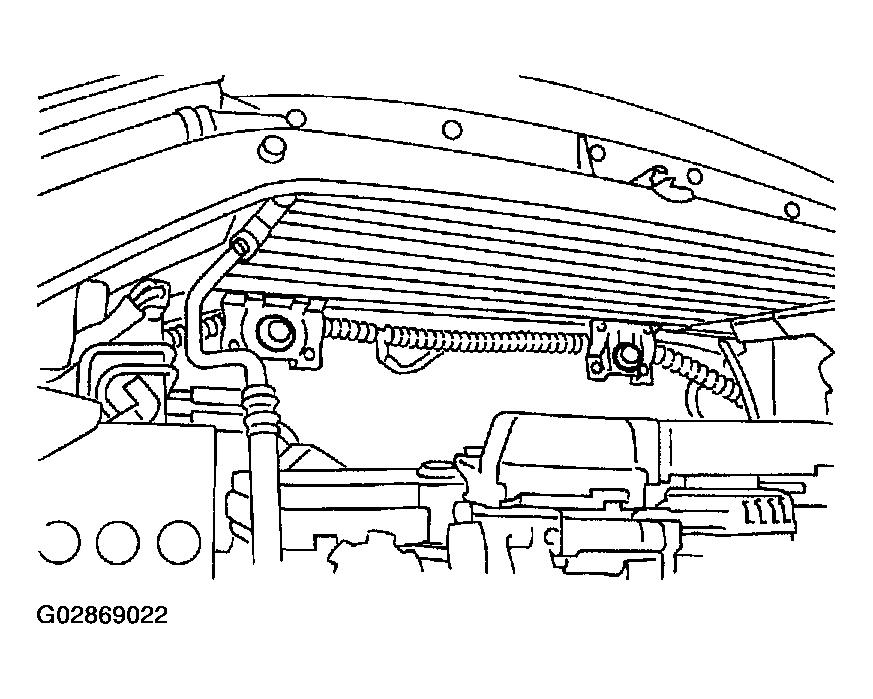

Fig 1: Attaching The Radiator Mounting Cushions
Courtesy of SUBARU OF AMERICA, INC.
Install the radiator brackets and tighten bolts.
Tightening torque: 12 N.m (1.2 kgf-m, 8.7 ft-lb)

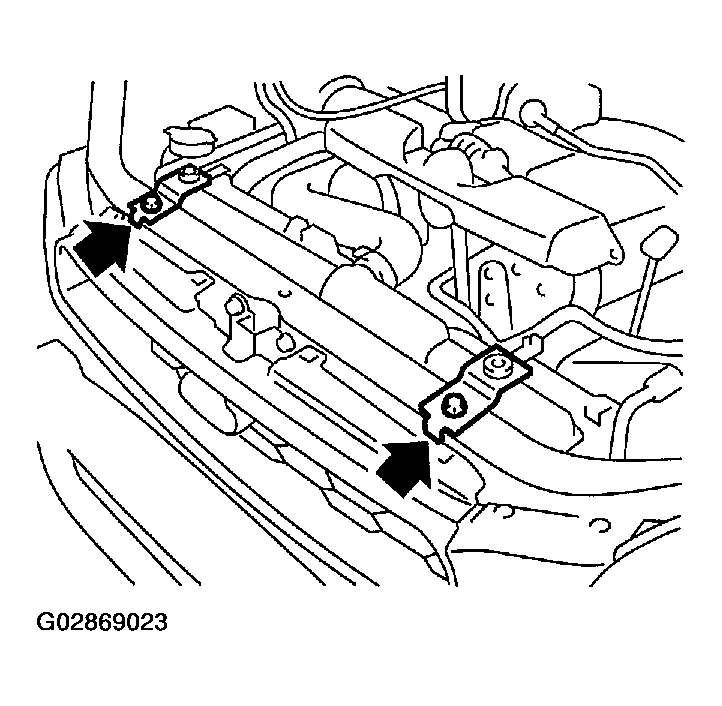

Fig 2: Installing The Radiator Brackets
Courtesy of SUBARU OF AMERICA, INC.
Connect the radiator inlet hose (A) and coolant filler tank hose (B).

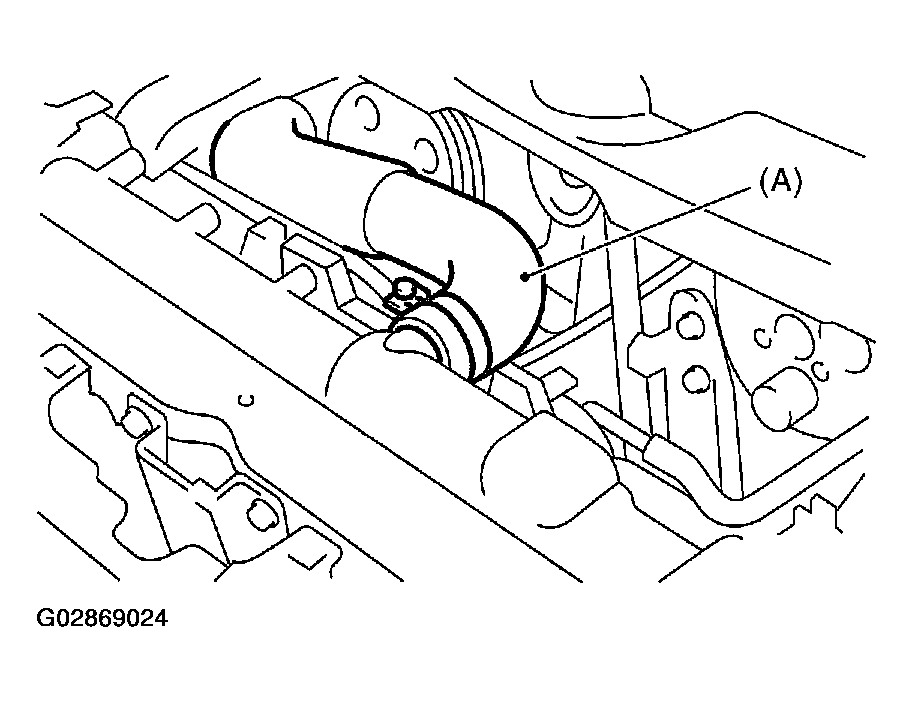

Fig 3: Connecting The Radiator Inlet Hose
Courtesy of SUBARU OF AMERICA, INC.

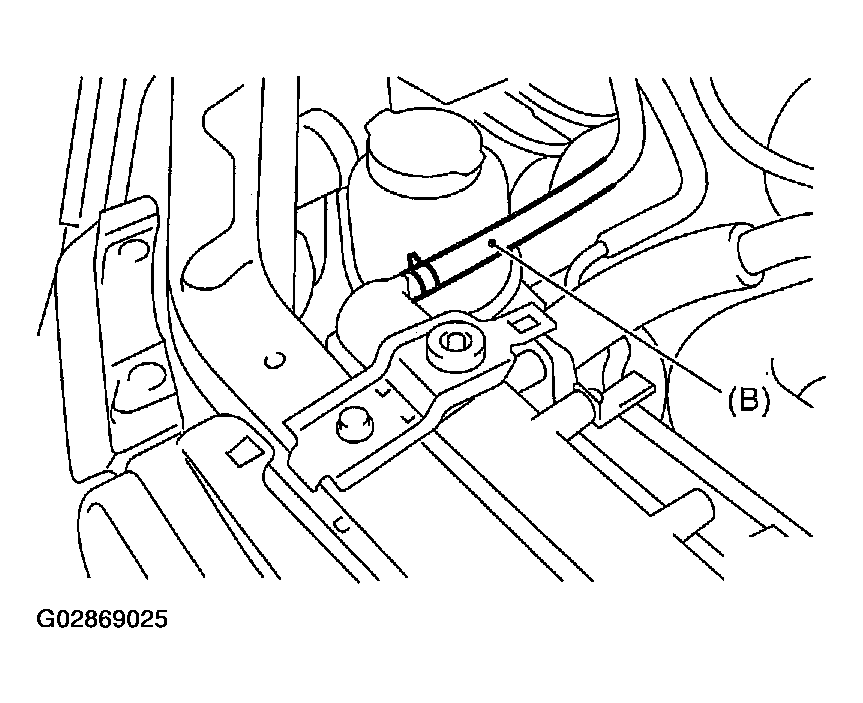

Fig 4: Connecting The Coolant Filler Tank Hose
Courtesy of SUBARU OF AMERICA, INC.
Install the reservoir tank.
Tightening torque: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

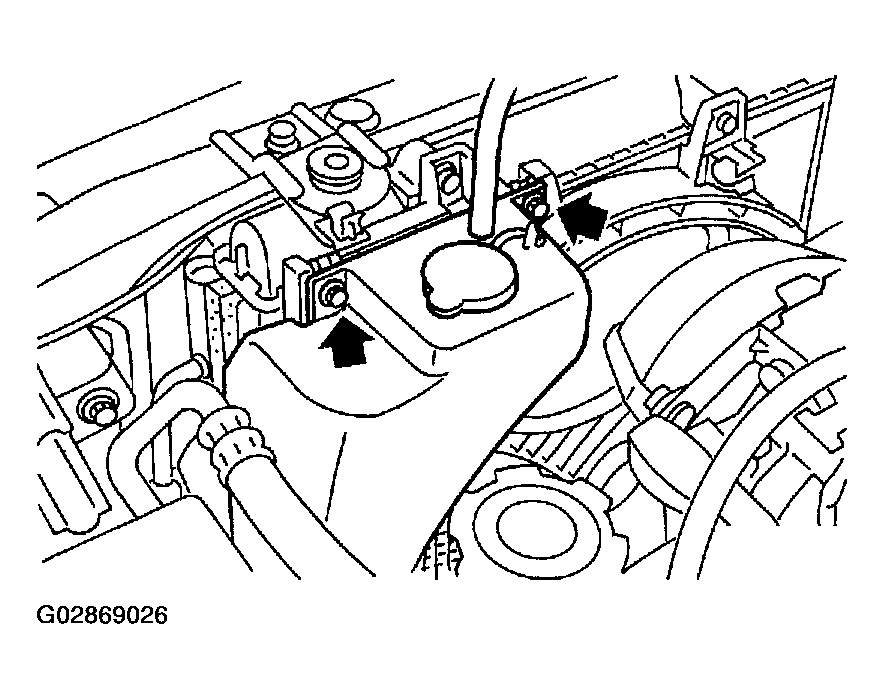

Fig 5: Installing The Reservoir Tank
Courtesy of SUBARU OF AMERICA, INC.
Connect the over flow hose.
Lift up the vehicle.
Connect the connectors to the radiator main fan motor (A) and sub fan motor (B).

Fig 6: Connecting The Connector To The Radiator Main Fan Motor
Courtesy of SUBARU OF AMERICA, INC.

Fig 7: Connect The Connector To The Radiator Sub Fan Motor
Courtesy of SUBARU OF AMERICA, INC.
Connect the ATF cooler hoses. (AT vehicles only)

Fig 8: Connecting The ATF Cooler Hoses
Courtesy of SUBARU OF AMERICA, INC.

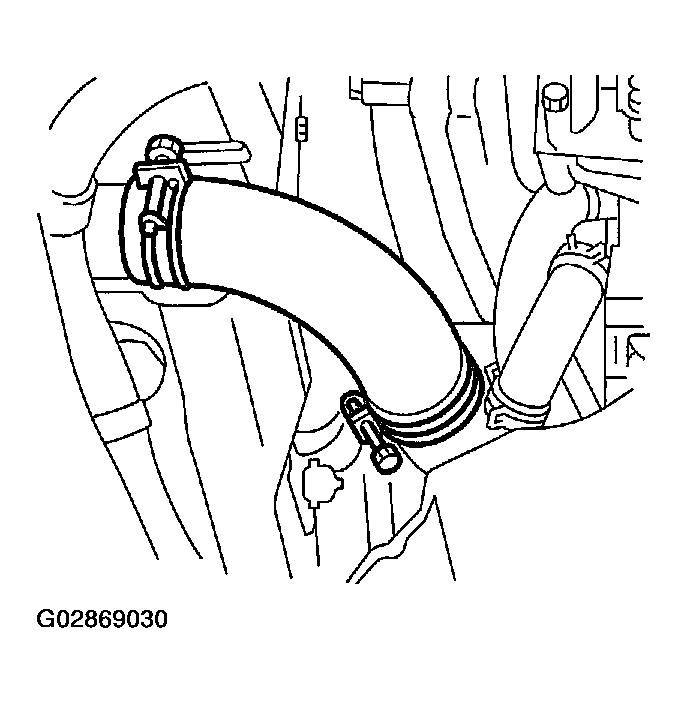

Connect the radiator outlet hose.

Fig 9: Connecting The Radiator Outlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Install the radiator under cover. (AT vehicle only)

Fig 10: Installing The Radiator Under Cover (AT Vehicle)
Courtesy of SUBARU OF AMERICA, INC.
Install the under cover.
Lower the vehicle.
Install the V-belt covers.

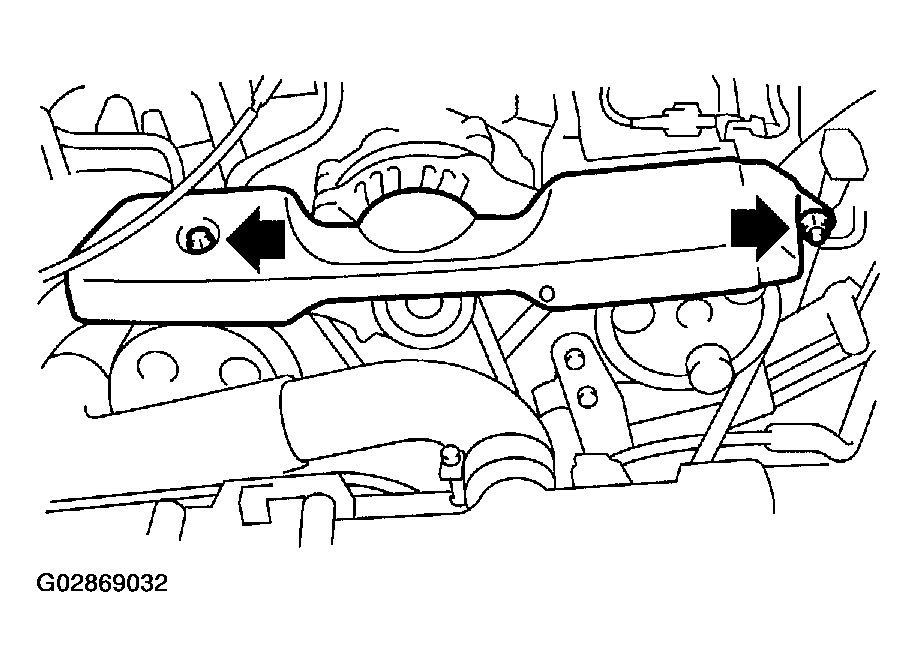

Fig 11: Installing The V-Belt Covers
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake duct.

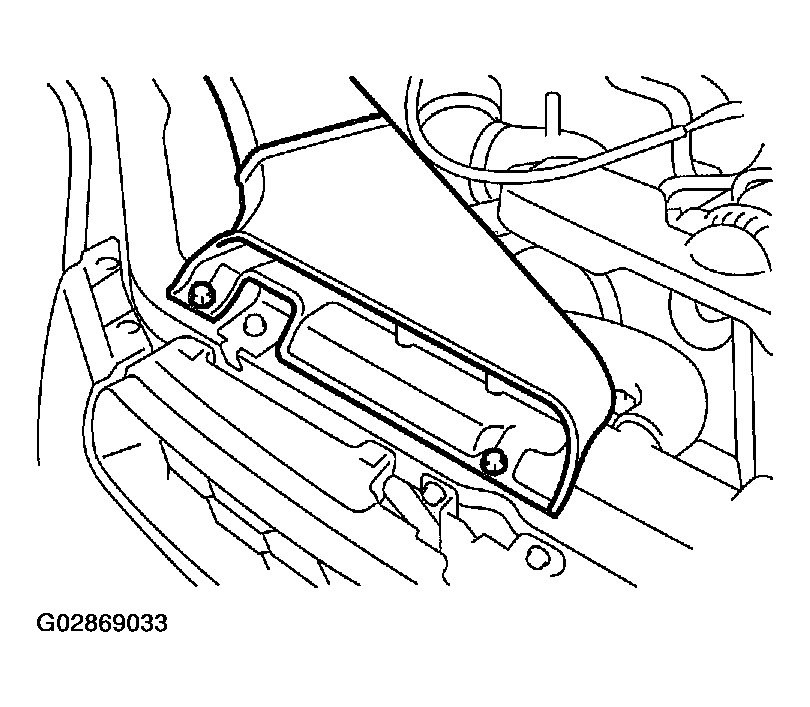

Fig 12: Installing The Air Intake Duct
Courtesy of SUBARU OF AMERICA, INC.
Connect the battery ground cable.

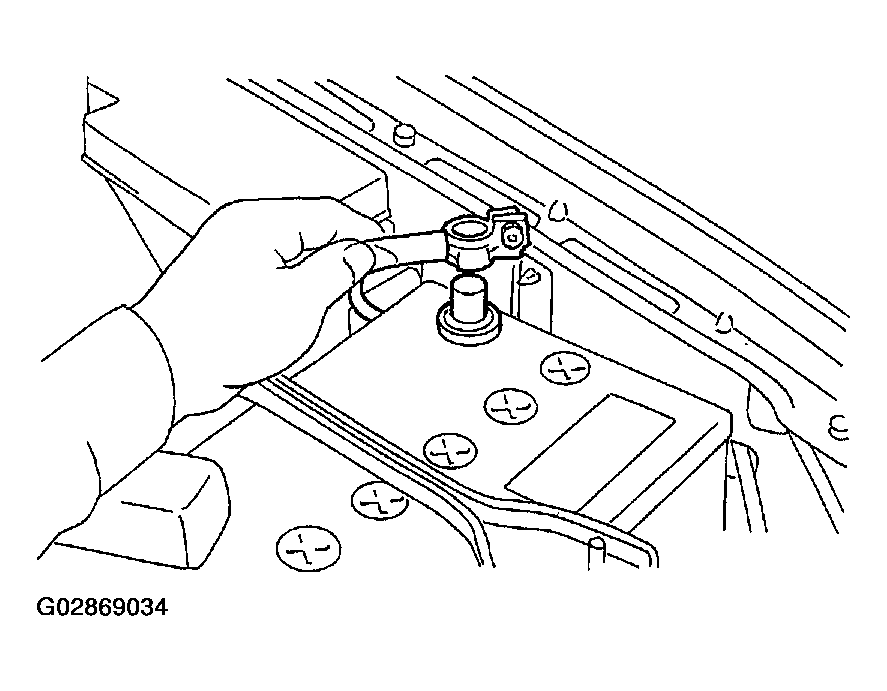

Fig 13: Connecting The Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Fill coolant. Refer to FILLING OF ENGINE COOLANT .
