Power Assisted System

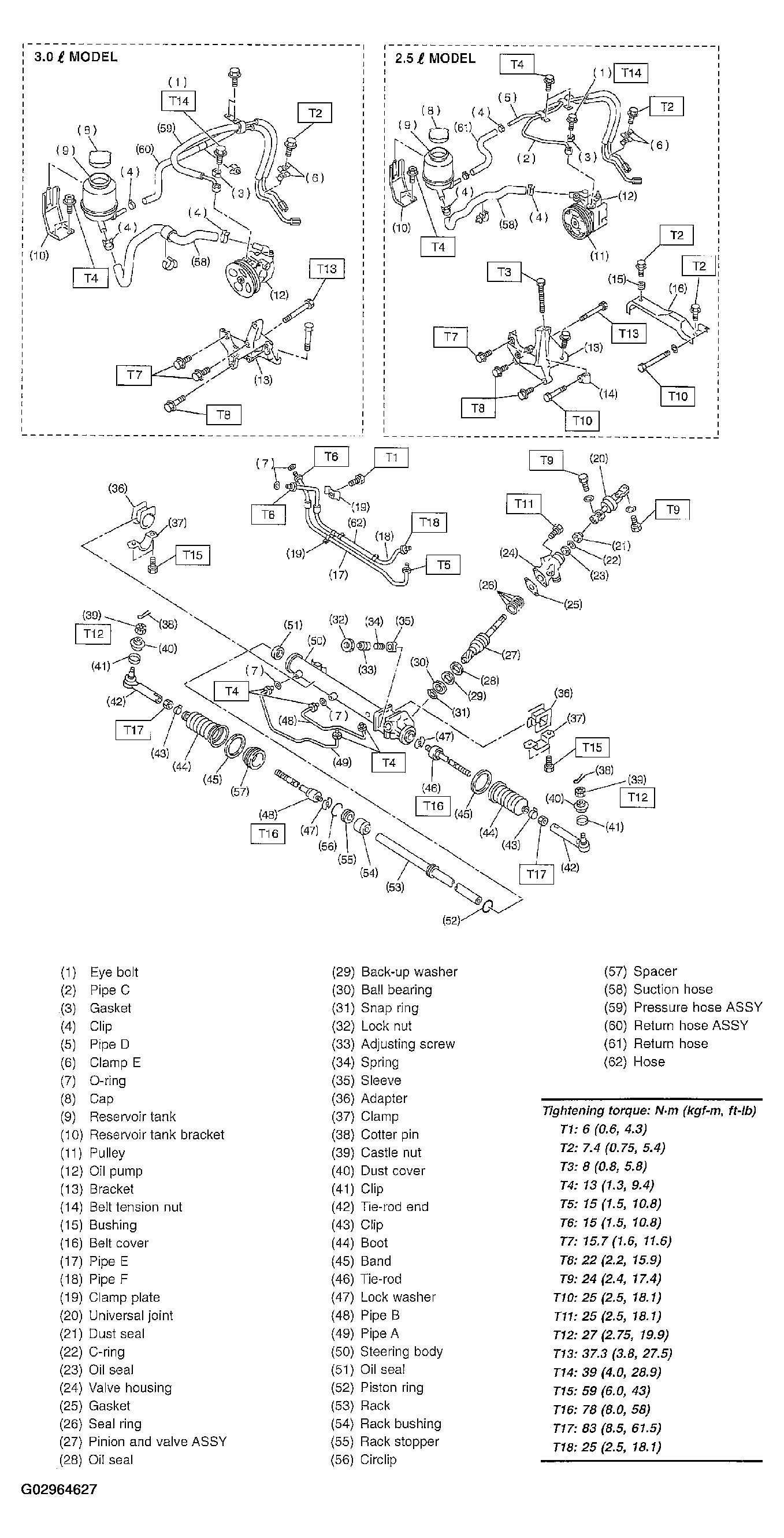

Fig 1: Identifying Power Assisted System Components
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
