Power Assisted System (Power Steering): General Description: Specifications

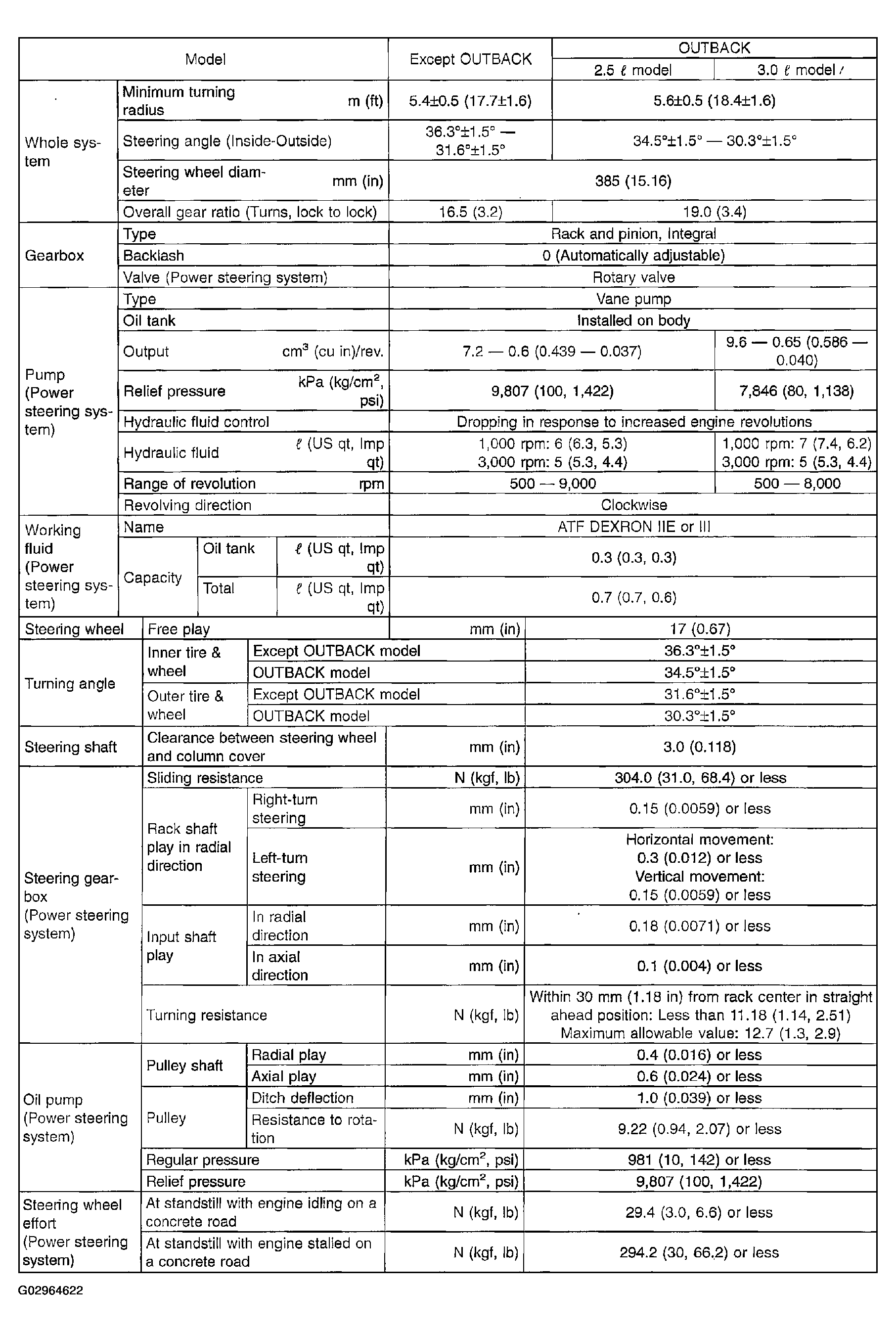

Fig 1: Power Assisted System (Power Steering) General Description Chart

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Recommended Power Steering Fluid Chart

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: This table lists various clearances that must be correctly adjusted to ensure normal vehicle driving without interfering noise, or any other faults.

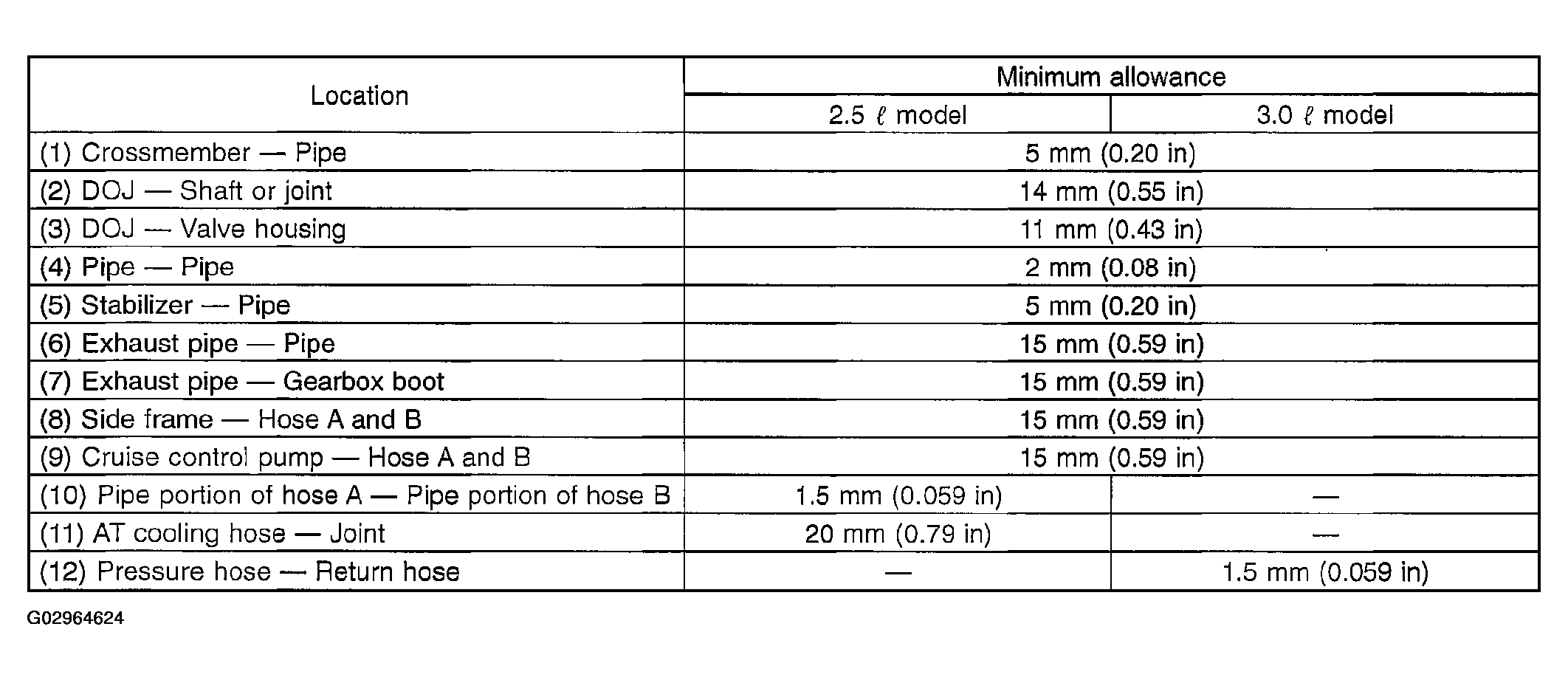

Fig 3: Location & Clearance Specification Chart

Courtesy of SUBARU OF AMERICA, INC.

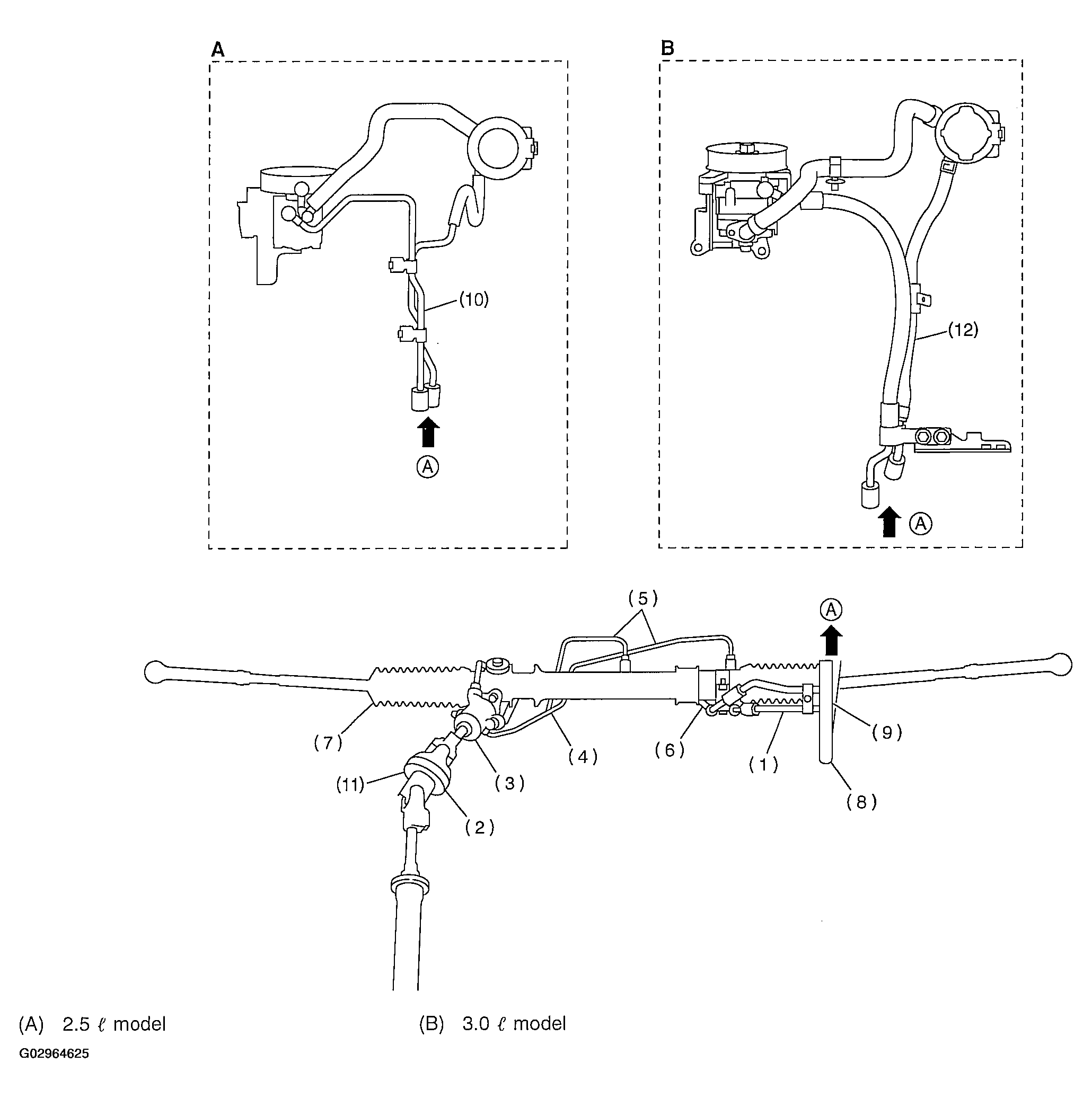

Fig 4: Identifying Power Assisted System (Power Steering) Components

Courtesy of SUBARU OF AMERICA, INC.
