General Diagnostic Table: Inspection: Notes

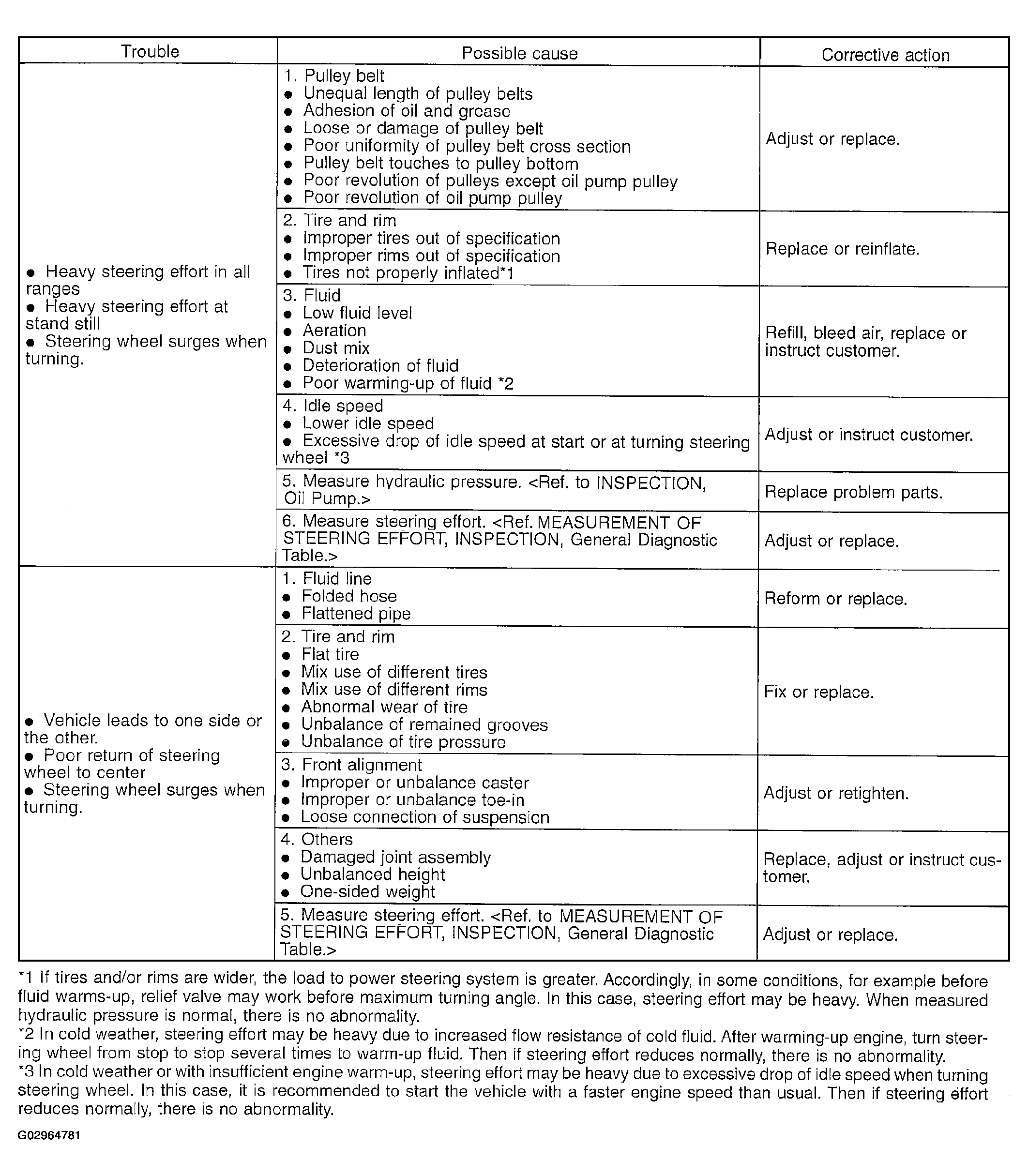

Fig 1: General Diagnostic Inspection Chart

G02964781

Courtesy of SUBARU OF AMERICA, INC.
