Select Lever Cannot Be Shift Locked

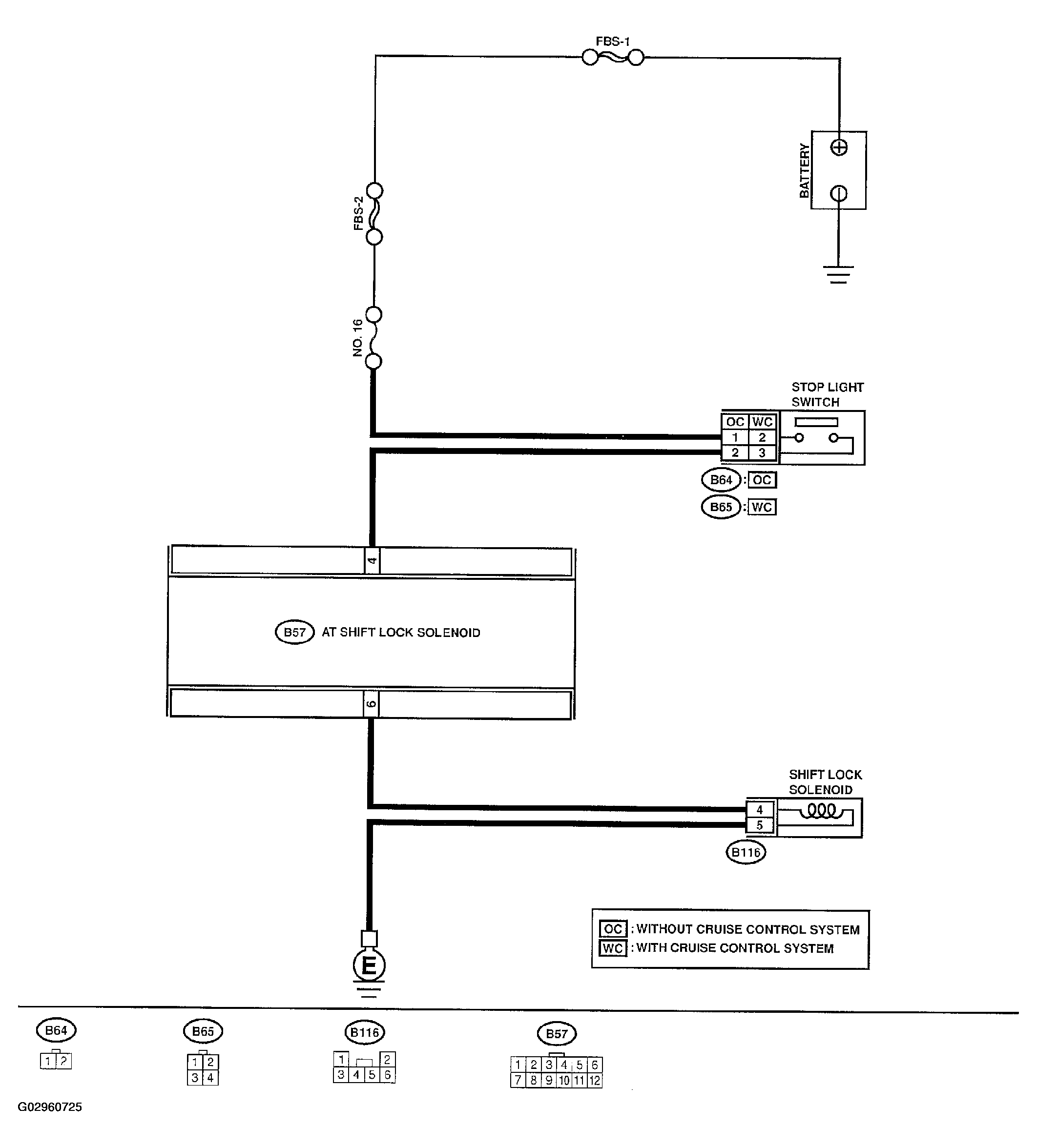

Fig 1: Select Lever Cannot Be Shift Locked Wiring Diagram
G02960725Courtesy of SUBARU OF AMERICA, INC.

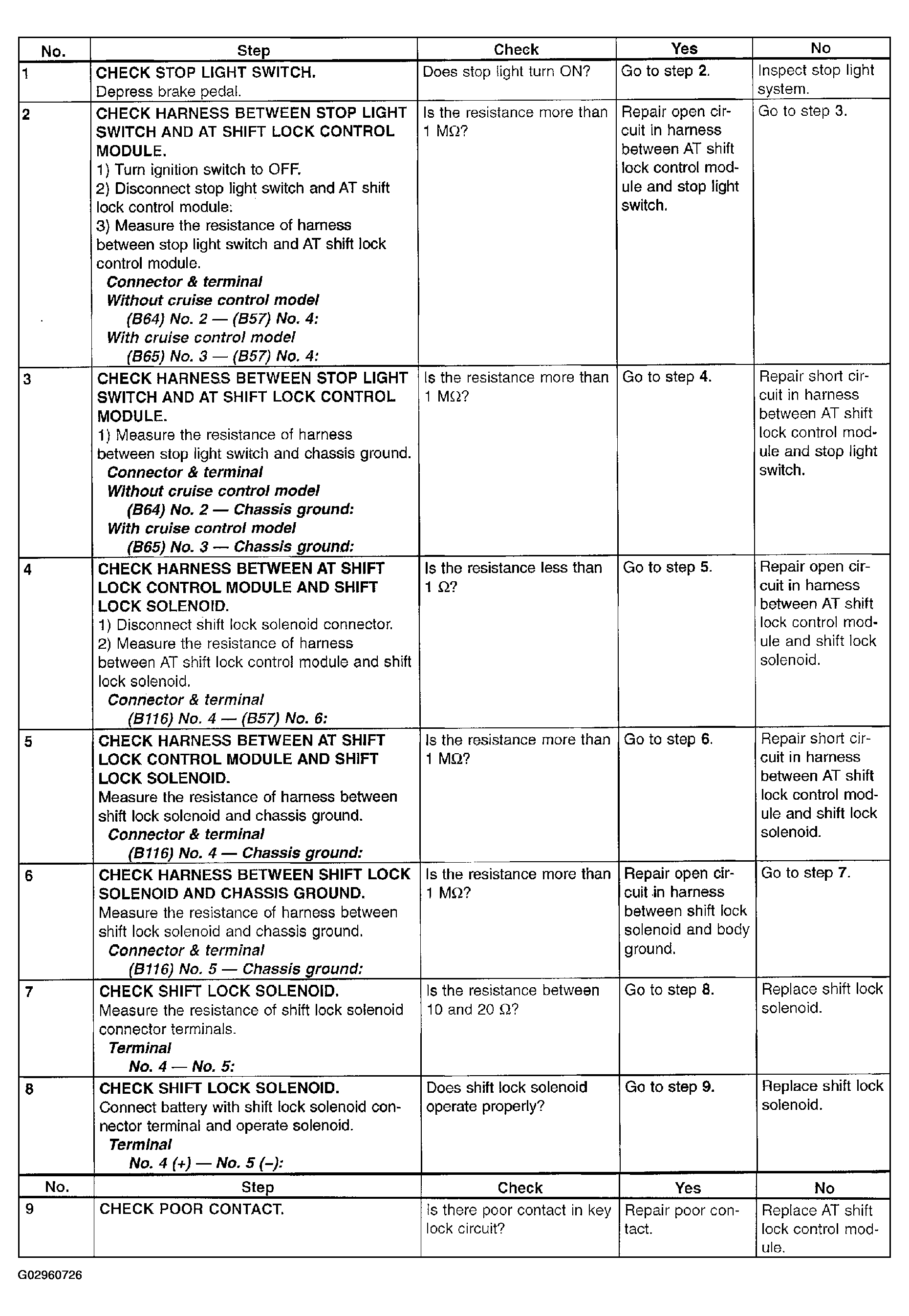

Fig 2: Select Lever Cannot Be Shift Locked Inspection Chart
G02960726Courtesy of SUBARU OF AMERICA, INC.
