Select Cable: Adjustment

Prior to removal, set select lever to "N" position.
Remove rear exhaust pipe and muffler. 2.5 L model
Refer to REMOVAL , Rear Exhaust Pipe and REMOVAL , Muffler 3.0 L model.

Refer to REMOVAL , Rear Exhaust Pipe and REMOVAL , Mufflers.
Remove heat shield cover.

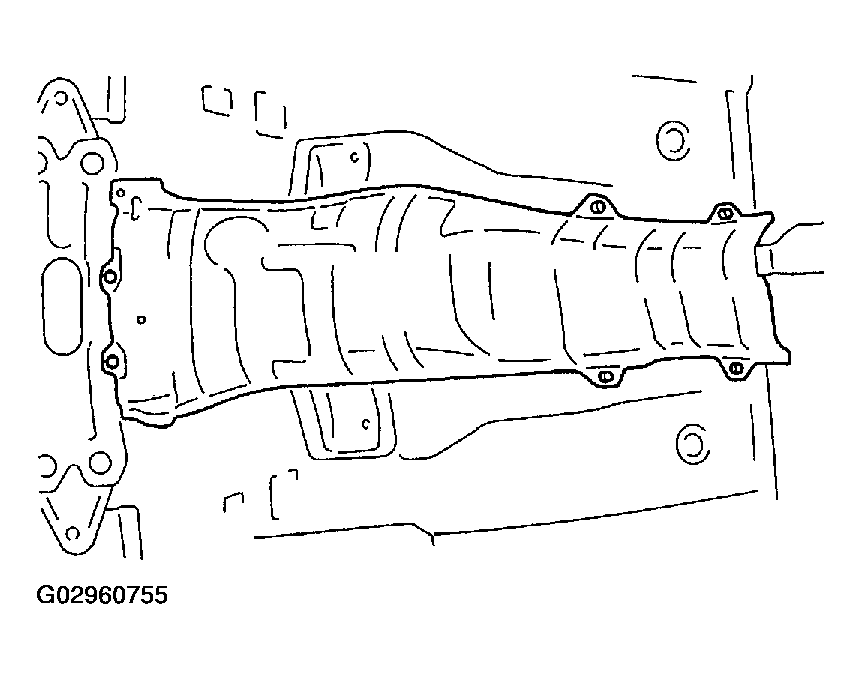

Fig 1: Removing Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.
Loosen the adjusting nut on each side.

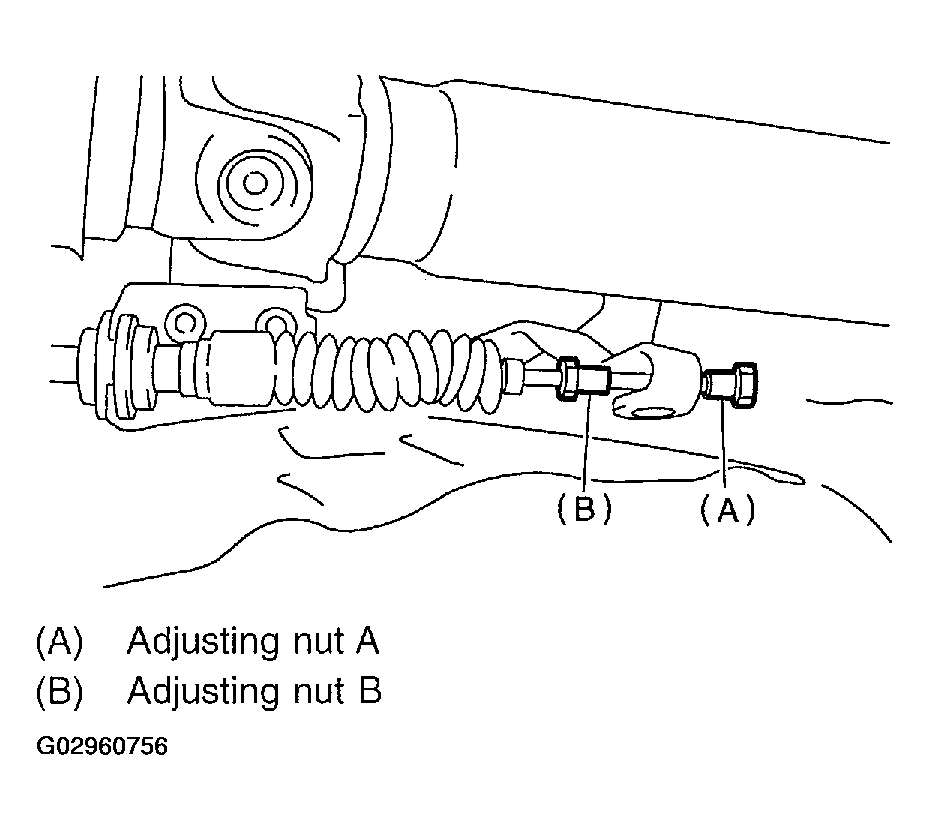

Fig 2: Loosening Adjusting Nut On Each Side
Courtesy of SUBARU OF AMERICA, INC.
Turn adjusting nut B until it lightly touches the connector.

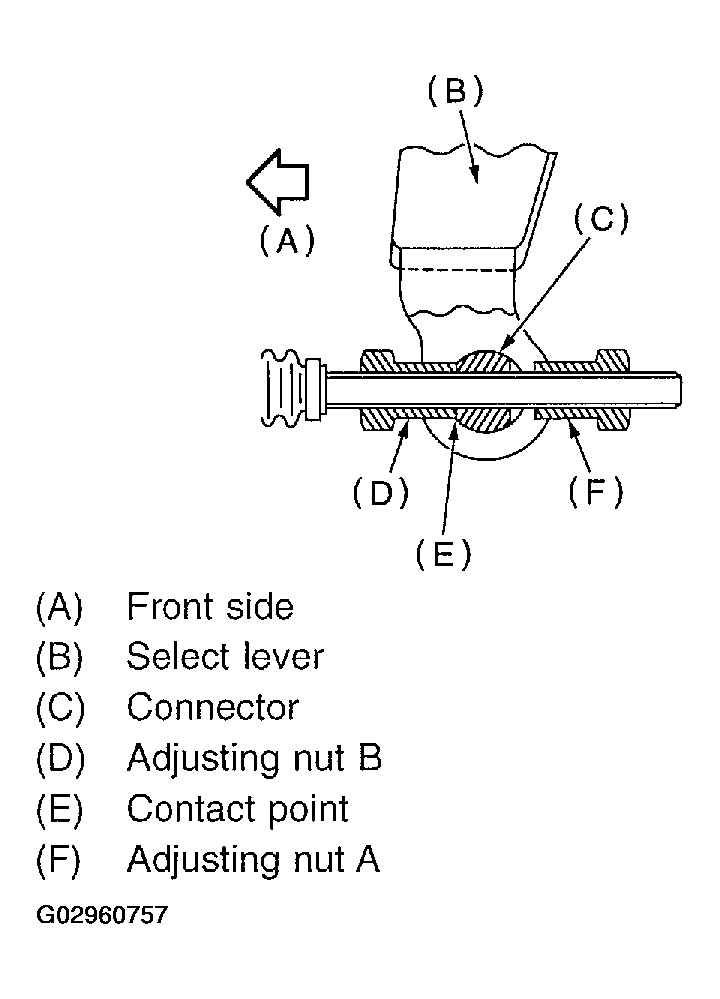

Fig 3: Turning Adjusting Nut Until It Lightly Touches Connector
Courtesy of SUBARU OF AMERICA, INC.
While preventing adjusting nut B from moving with a wrench, tighten adjusting nut A.
1. Tightening torque: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

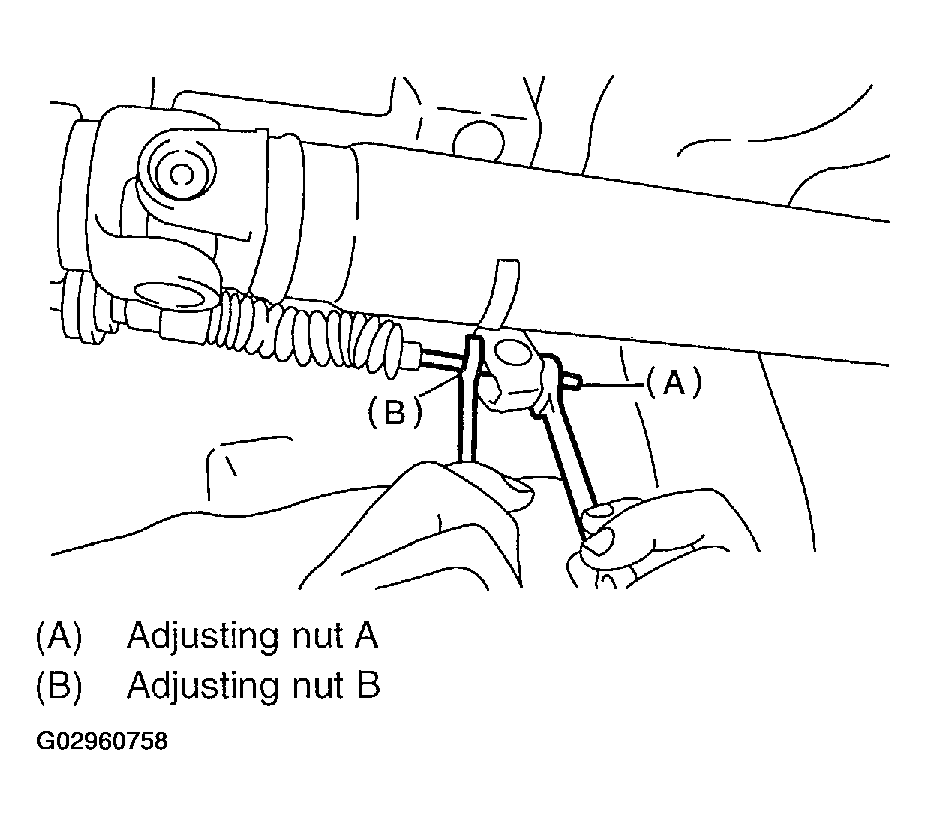

Fig 4: Tightening Adjusting Nut A
Courtesy of SUBARU OF AMERICA, INC.
After completion of fitting, make sure the select lever operates smoothly across the entire operating range.
Install in the reverse order of removal.
