Select Cable: Removal

Prior to removal, set select lever to "N" position.
Remove under cover.
Remove rear exhaust pipe and muffler. 2.5 L model
Refer to REMOVAL , Rear Exhaust Pipe and REMOVAL , Muffler, 3.0 L model.

Refer to REMOVAL , Rear Exhaust Pipe and REMOVAL , Mufflers.
Remove heat shield cover.

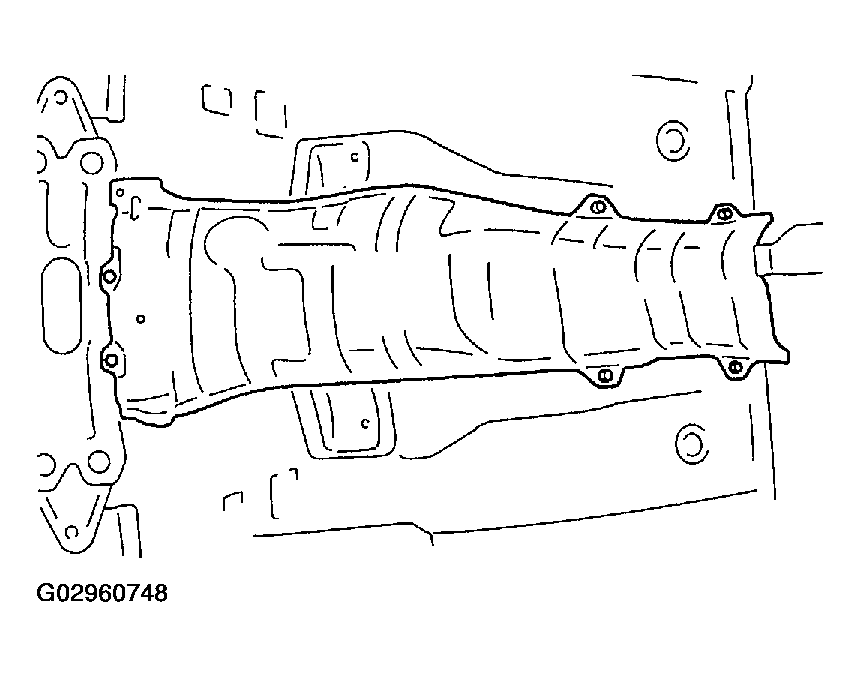

Fig 1: Removing Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove snap pin from range select lever.

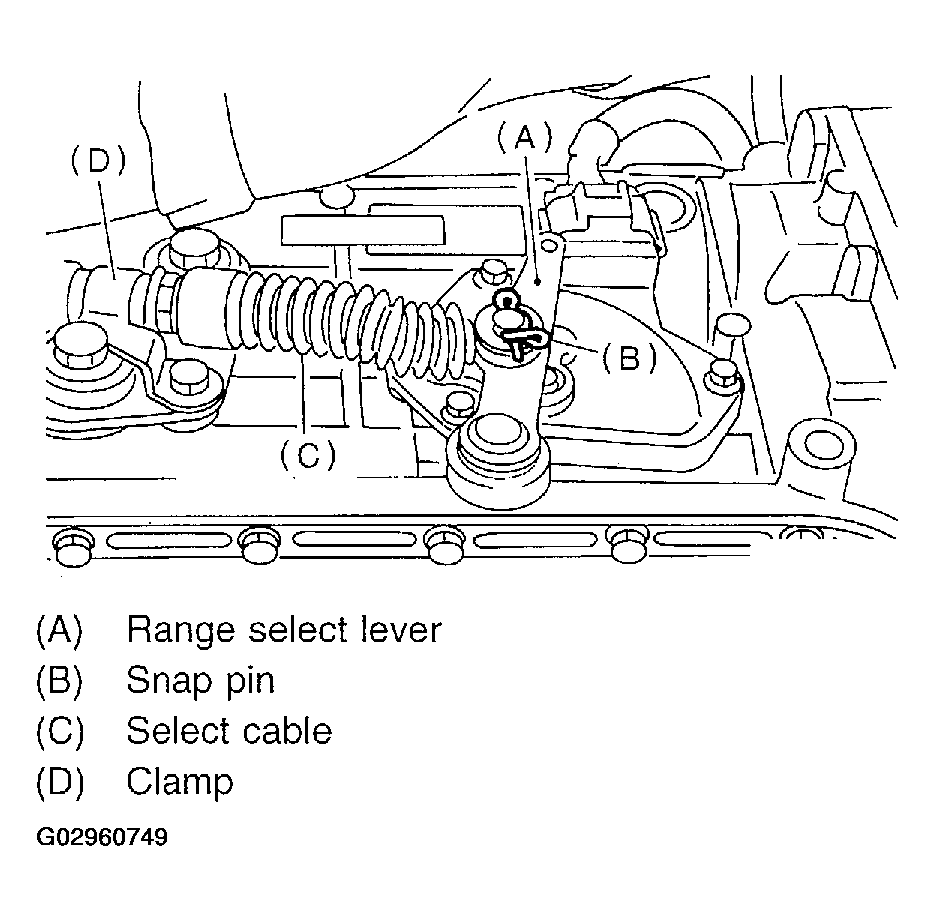

Fig 2: Removing Snap Pin From Range Select Lever
Courtesy of SUBARU OF AMERICA, INC.
Remove plate assembly from transmission case.

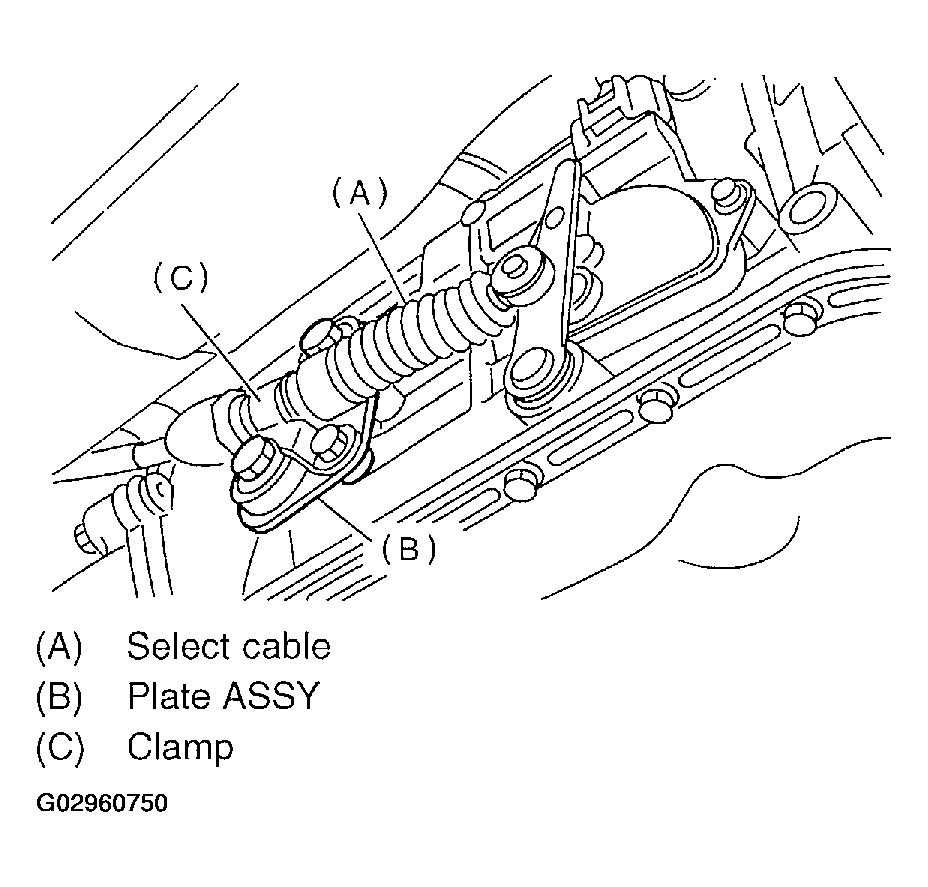

Fig 3: Removing Plate Assembly From Transmission Case
Courtesy of SUBARU OF AMERICA, INC.
Disconnect cable from select lever and then remove cable bracket.

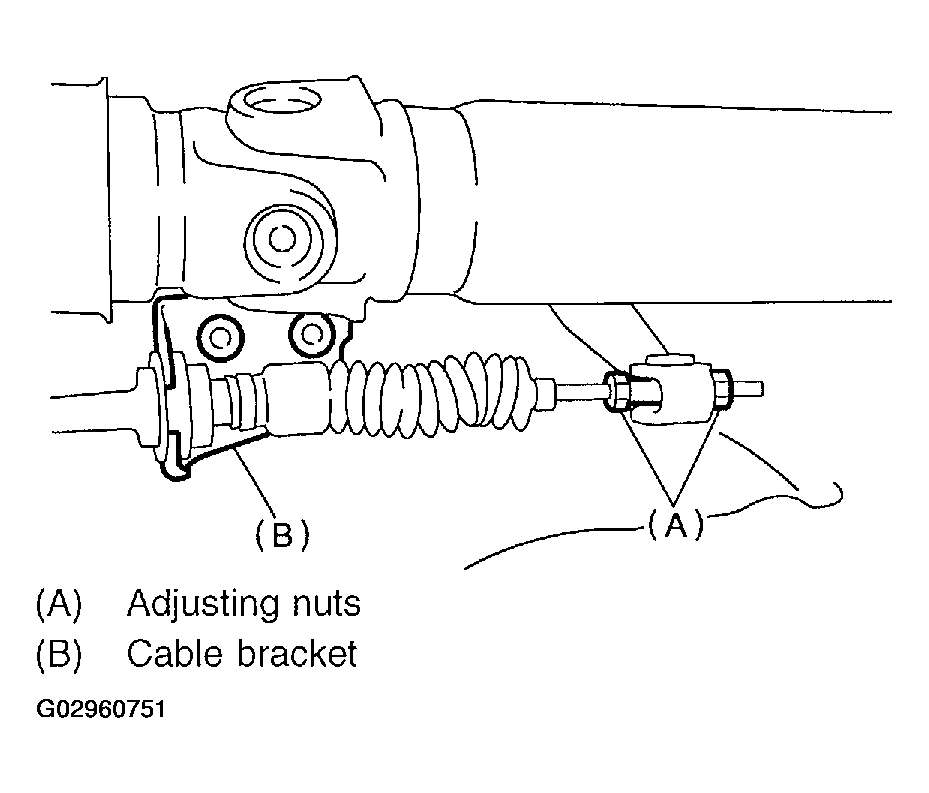

Fig 4: Removing Cable Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove select cable from plate assembly.
