Select Lever: Disassembly

Remove four washers and then detach rubber boot.
Remove bolts and then remove cable bracket and plate.
Twist the select lever grip and then remove select lever grip.

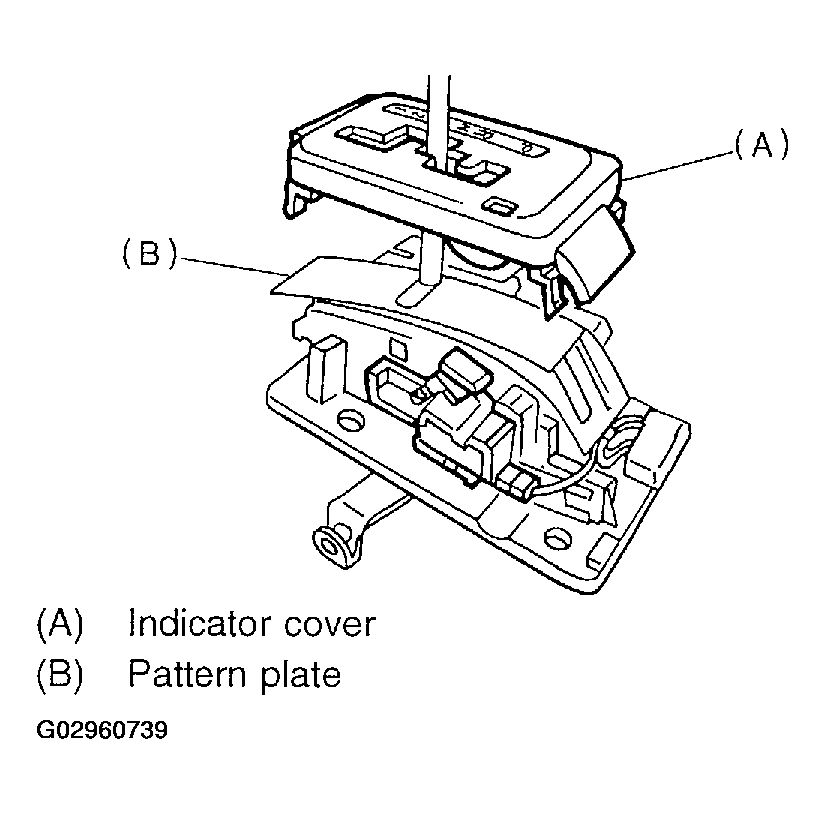

Detach indicator cover and pattern plate.

Fig 1: Removing Indicator Cover & Pattern Plate
Courtesy of SUBARU OF AMERICA, INC.
Disconnect solenoid assembly connector.

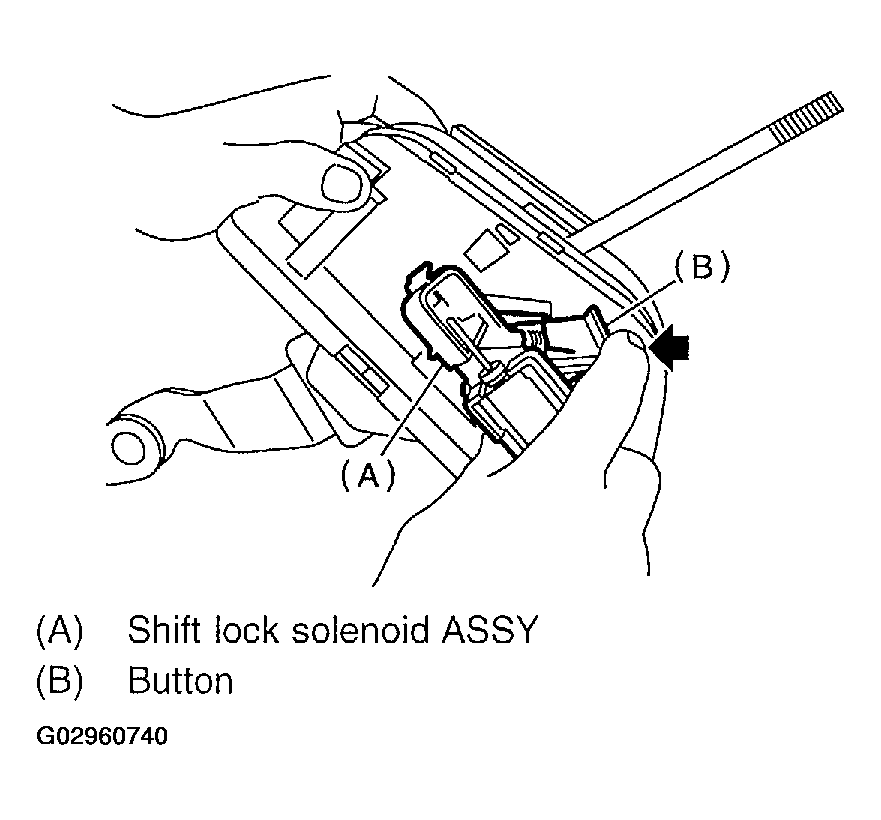

While pressing shift lock cancel button, remove shift lock solenoid assembly.

Fig 2: Removing Shift Lock Solenoid Assembly
Courtesy of SUBARU OF AMERICA, INC.

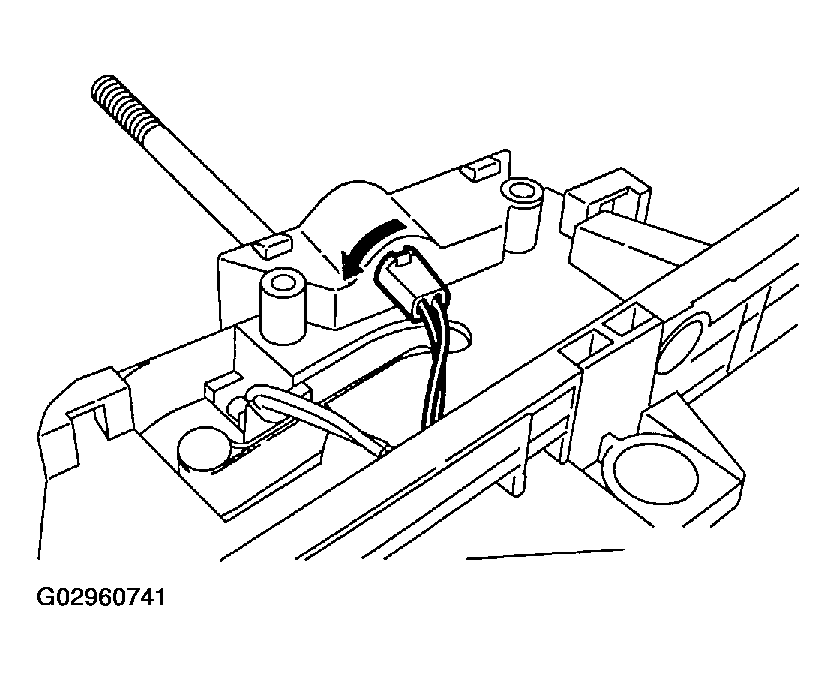

Remove illumination light.

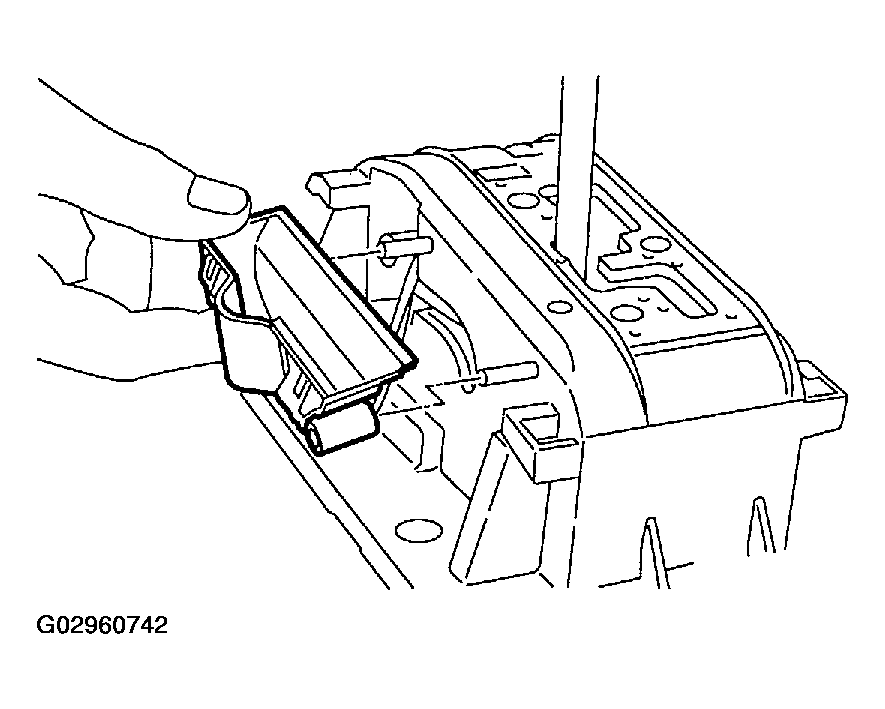

Fig 3: Removing Illumination Light
Courtesy of SUBARU OF AMERICA, INC.
Remove illumination bulb.
Remove illumination light cover.

Fig 4: Removing Illumination Light Cover
Courtesy of SUBARU OF AMERICA, INC.

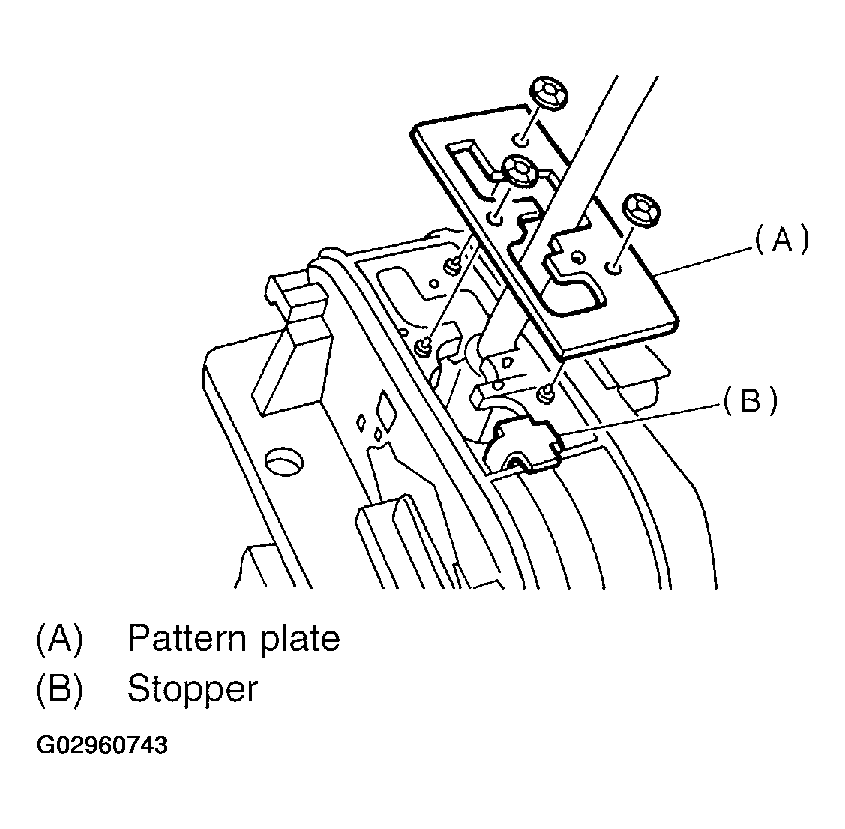

Remove stopper.

Fig 5: Removing Stopper
Courtesy of SUBARU OF AMERICA, INC.

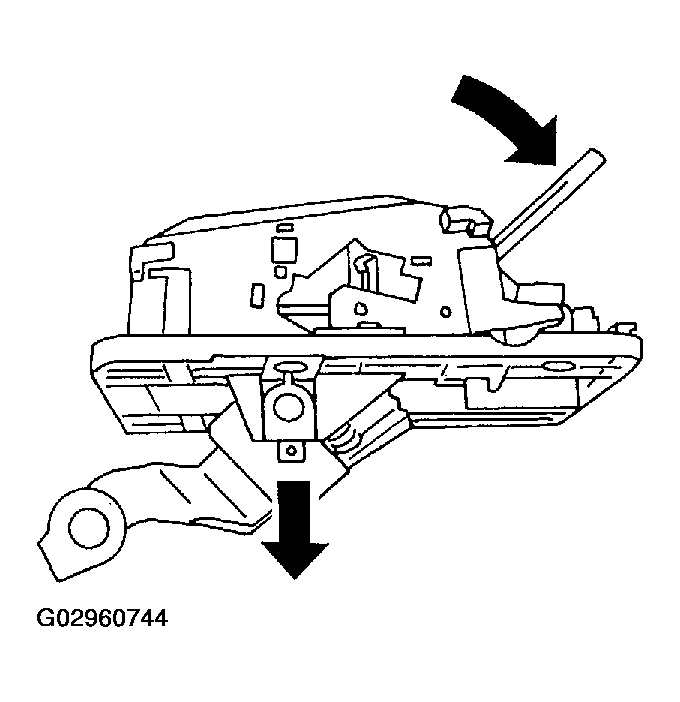

Tilt lever forward and pull down to separate it from frame.

Fig 6: Removing Lever From Frame
Courtesy of SUBARU OF AMERICA, INC.

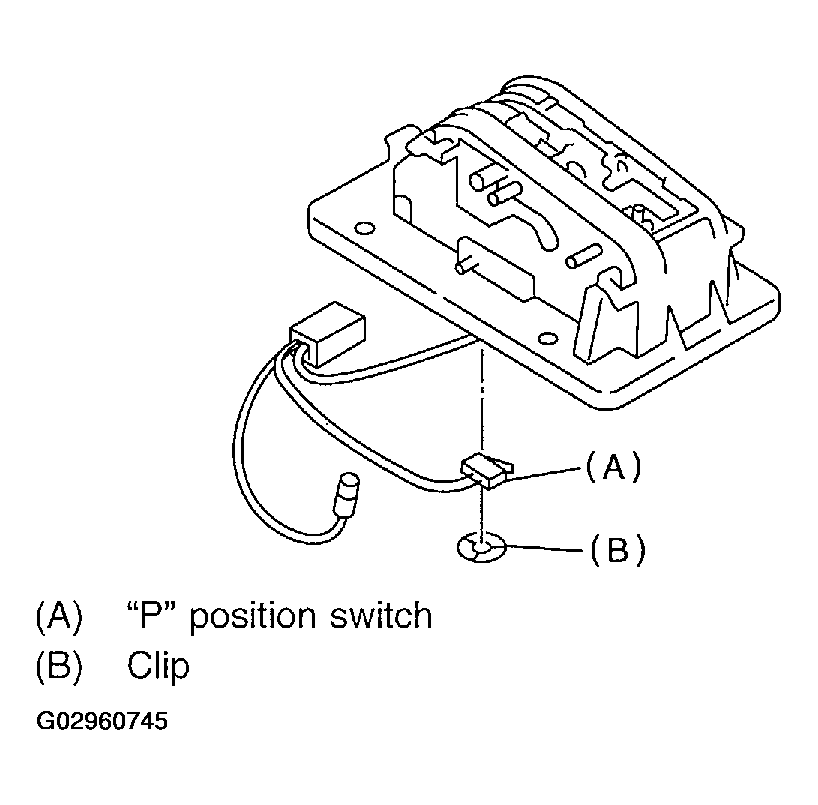

Remove clip, and "P" position switch with harness.

Fig 7: Removing Clip & "P" Position Switch With Harness
Courtesy of SUBARU OF AMERICA, INC.
Remove detent spring

Fig 8: Removing Detent Spring
Courtesy of SUBARU OF AMERICA, INC.

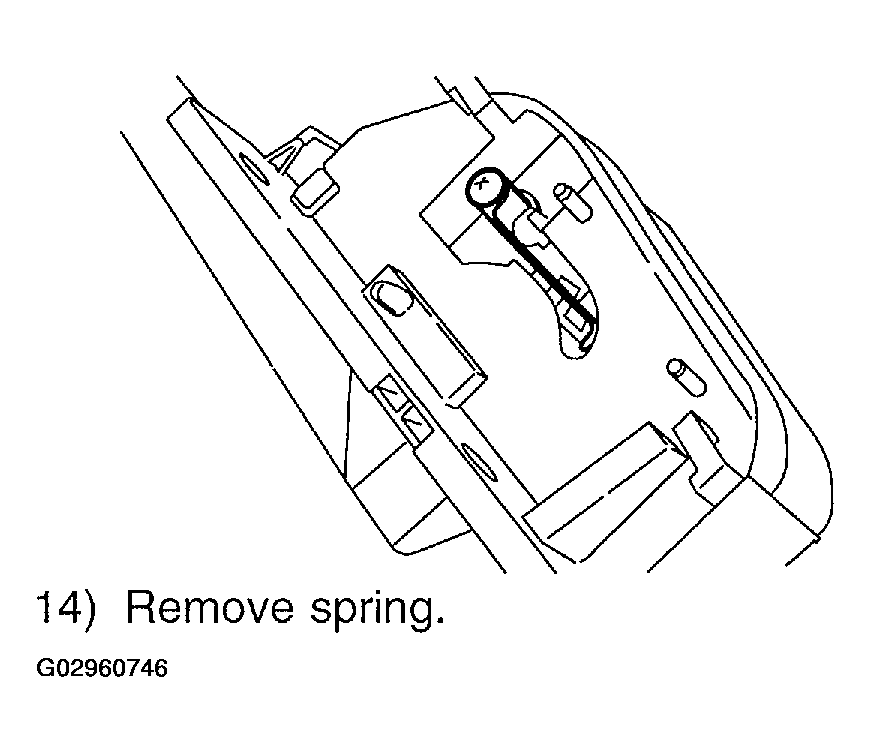

Remove spring.
CAUTION: Wear goggles. Do not allow spring to fly out during removal.
Remove bolt and then disconnect lever upper and lever lower.

Fig 9: Disconnecting Upper & Lower Lever

Courtesy of SUBARU OF AMERICA, INC.
