Select Lever: Removal

Move the select lever to the "N" position.
Remove rear exhaust pipe and muffler. 2.5 L model
Refer to REMOVAL , Rear Exhaust Pipe and REMOVAL , Muffler 3.0 L model

Refer to REMOVAL , Rear Exhaust Pipe and REMOVAL , Mufflers.
Remove heat shield cover.

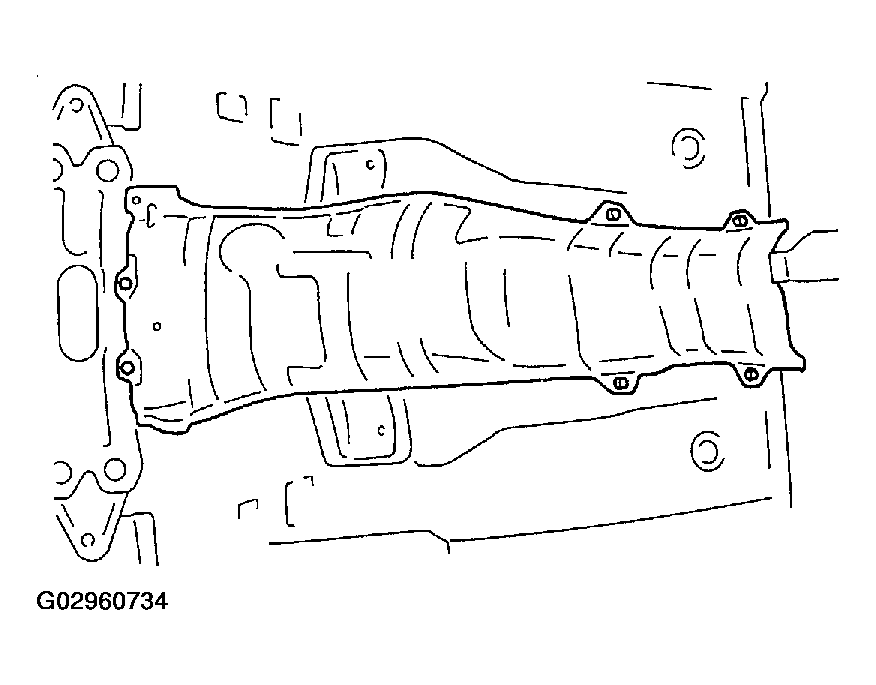

Fig 1: Removing Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.
Disconnect cable from select lever and then remove cable bracket.

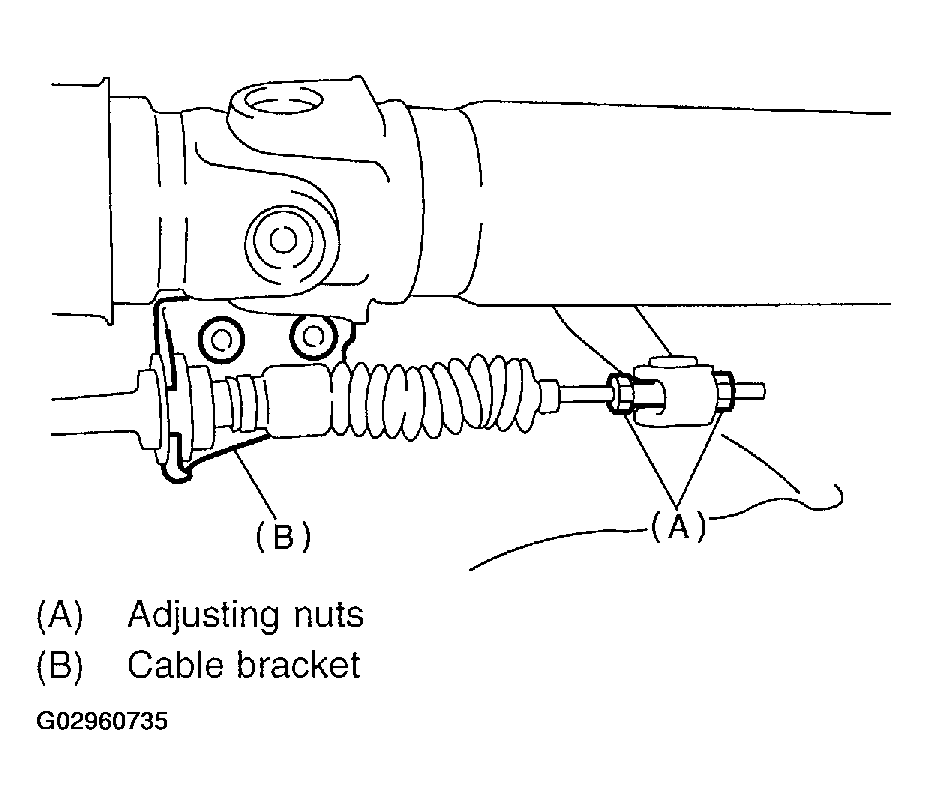

Fig 2: Disconnecting Cable From Select Lever & Removing Cable Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove console box. Refer to REMOVAL , Console Box.
Disconnect the connectors, then remove the four bolts to take out the selector lever assembly from the body.

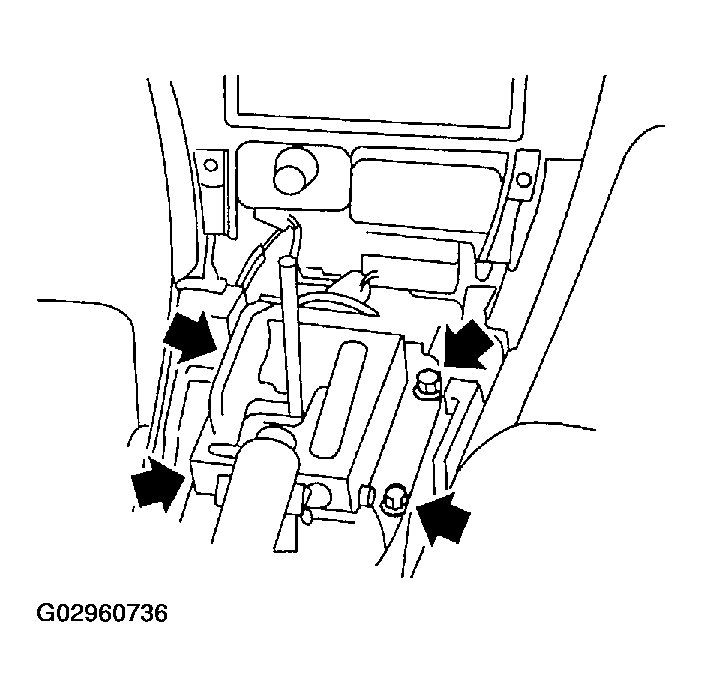

Fig 3: Removing Selector Lever Assembly From Body

Courtesy of SUBARU OF AMERICA, INC.
