Check Ignition Switch Circuit

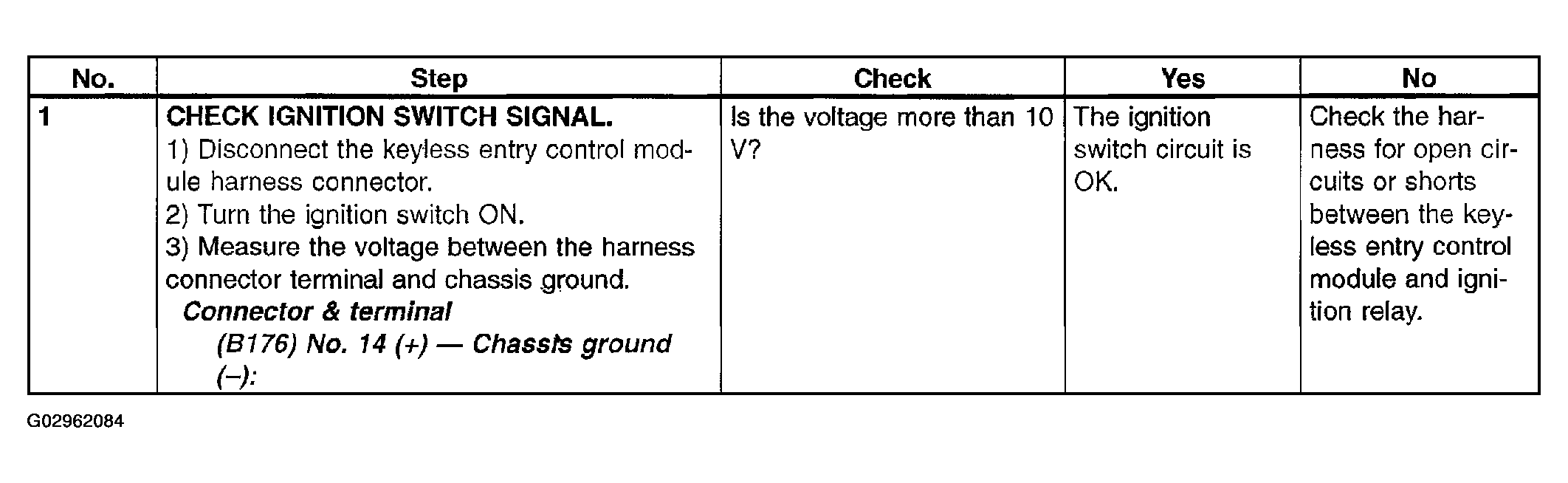

Fig 1: Checking Ignition Switch Circuit Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
