Traction Control: Abs: General Description: Component: Sensor

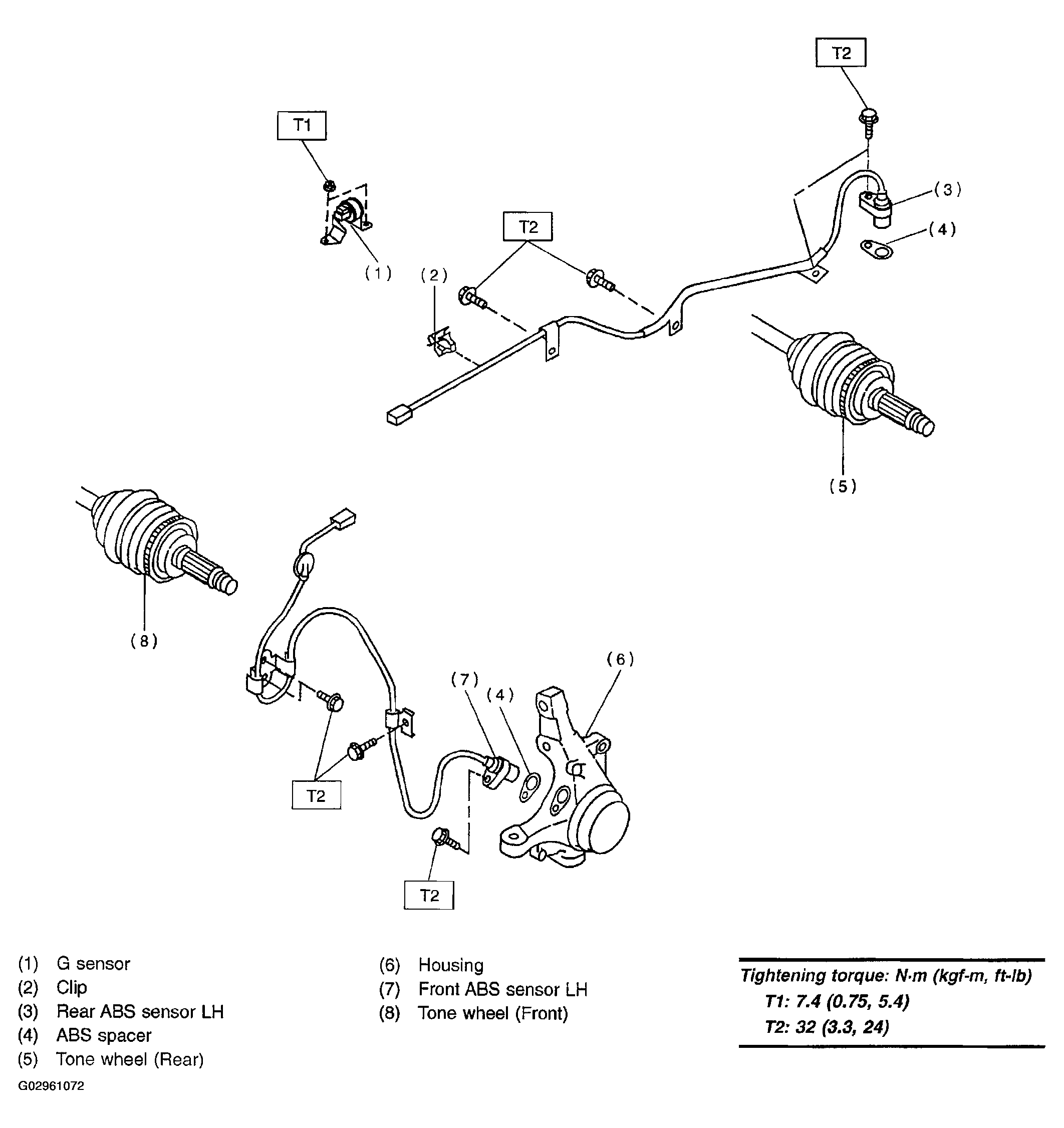

Fig 1: Identifying Sensor
G02961072Courtesy of SUBARU OF AMERICA, INC.
