Engine Control Module: Removal

Disconnect battery ground cable.

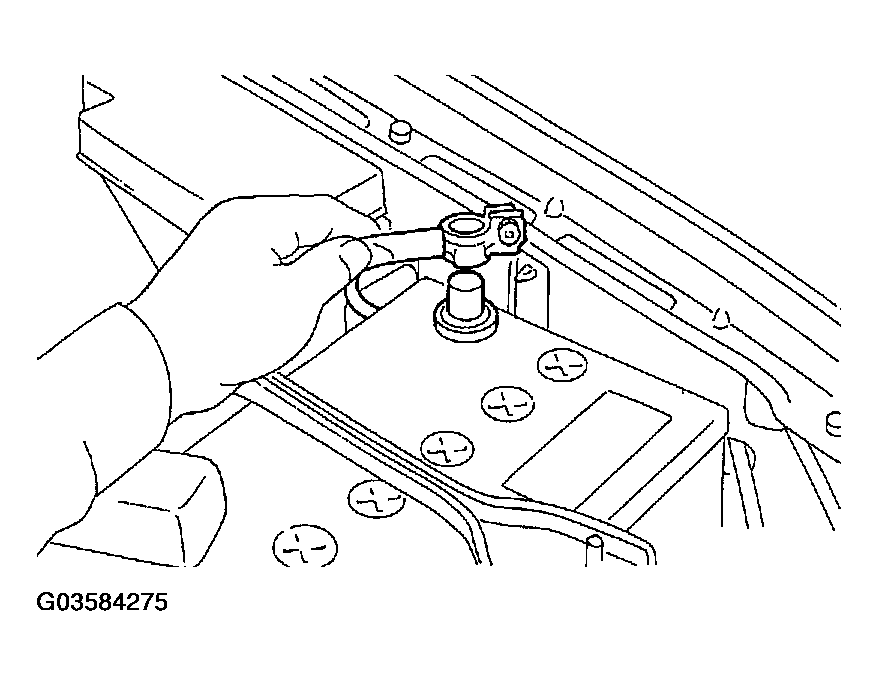

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove lower inner trim of passenger side. < Ref. to REMOVAL , Lower Inner Trim. >
Detach floor mat of front passenger seat.

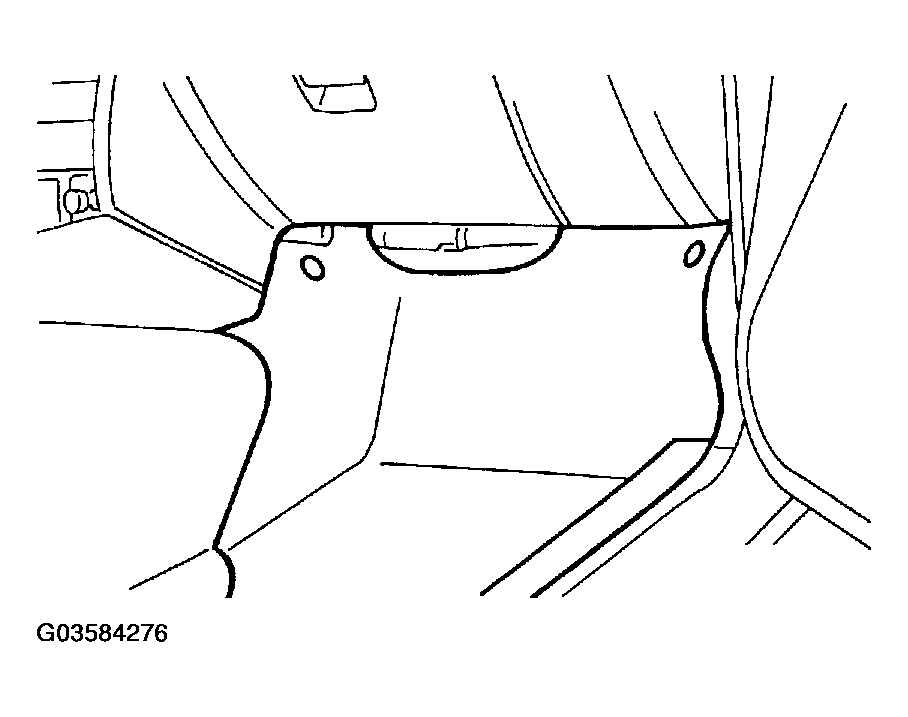

Fig 2: Removing Floor Mat Of Front Passenger Seat
Courtesy of SUBARU OF AMERICA, INC.
Remove lower inner trim of passenger side. < Ref. to REMOVAL , Lower Inner Trim. >
Detach floor mat of front passenger seat.
Remove protect cover.

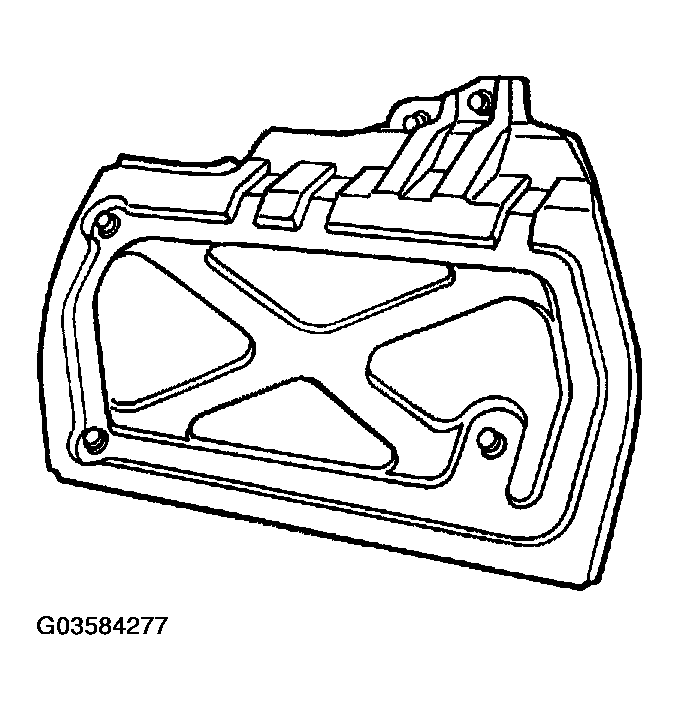

Fig 3: Removing Protect Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove nuts which hold ECM to bracket.

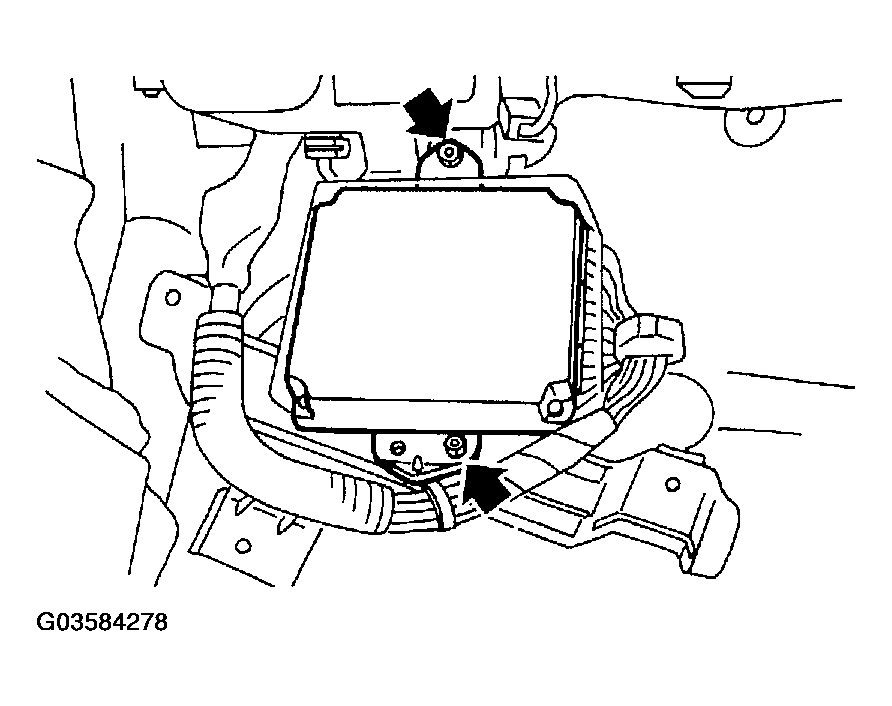

Fig 4: Removing Nuts Hold ECM To Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove clip from bracket.

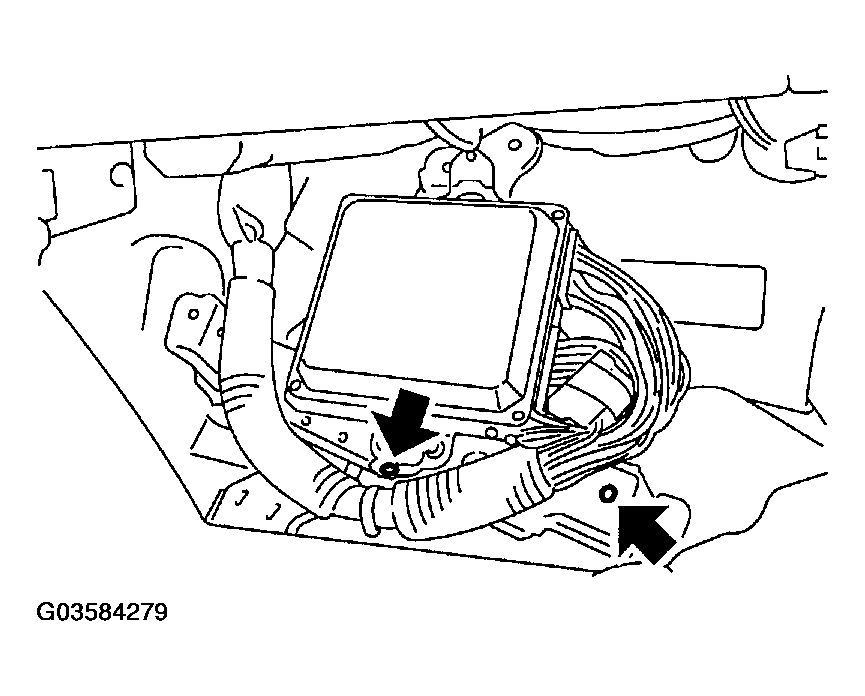

Fig 5: Removing Clip From Bracket
Courtesy of SUBARU OF AMERICA, INC.
Disconnect ECM connectors and take out ECM.
