RH Side

Install in the reverse order of removal.

NOTE: Replace O-rings and insulators with new ones.

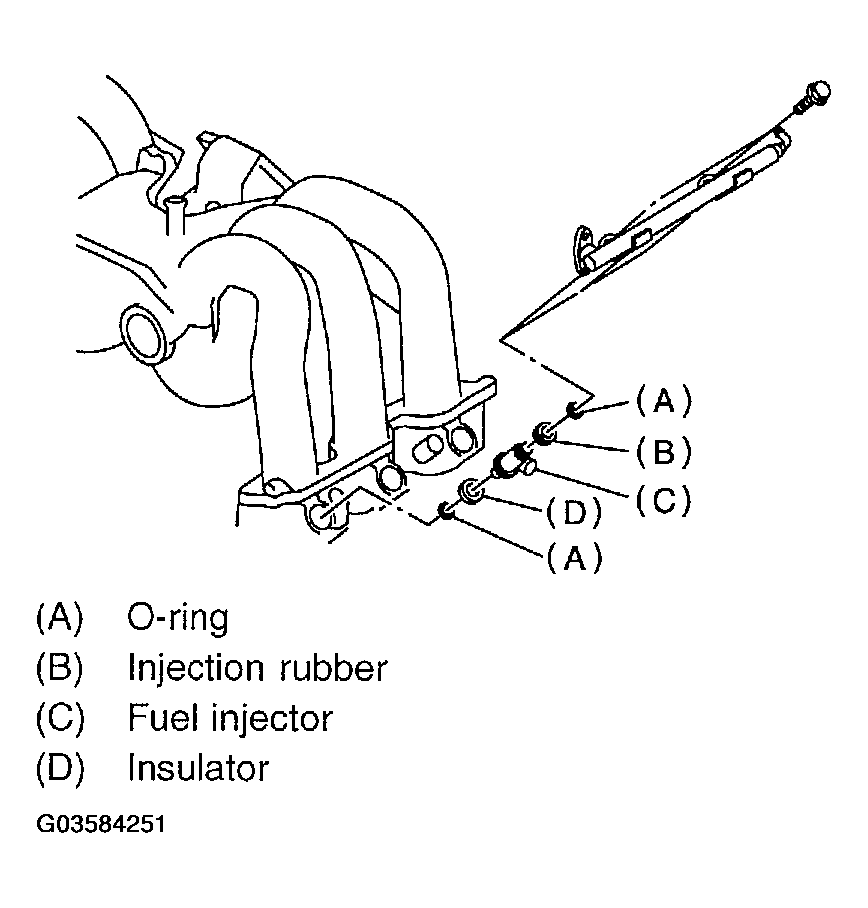

Fig 1: Replacing O-Rings

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

19 N.m (1.9 kgf-m, 14 ft-lb)

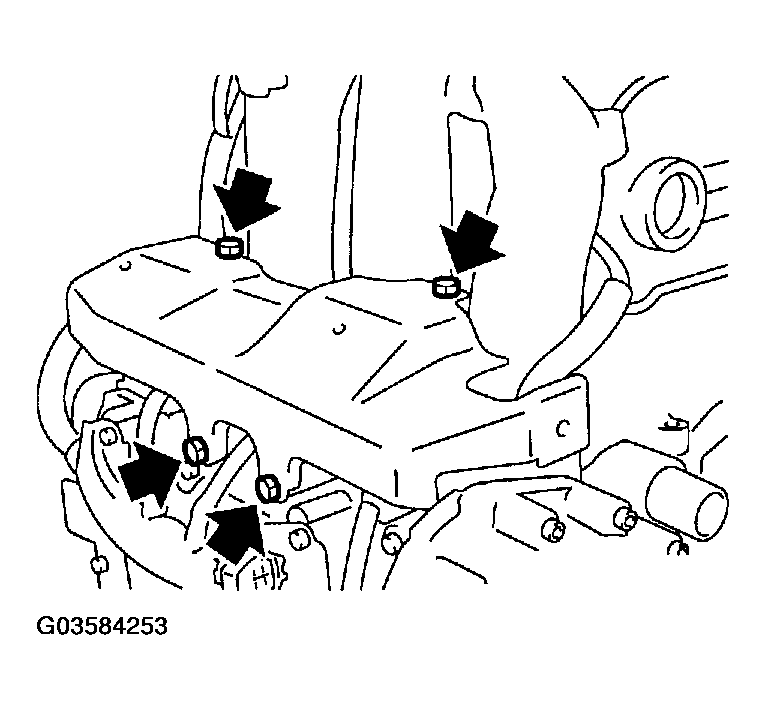

Fig 2: Tightening Bolts With Specified Torque

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

19 N.m (1.9 kgf-m, 14 ft-lb)

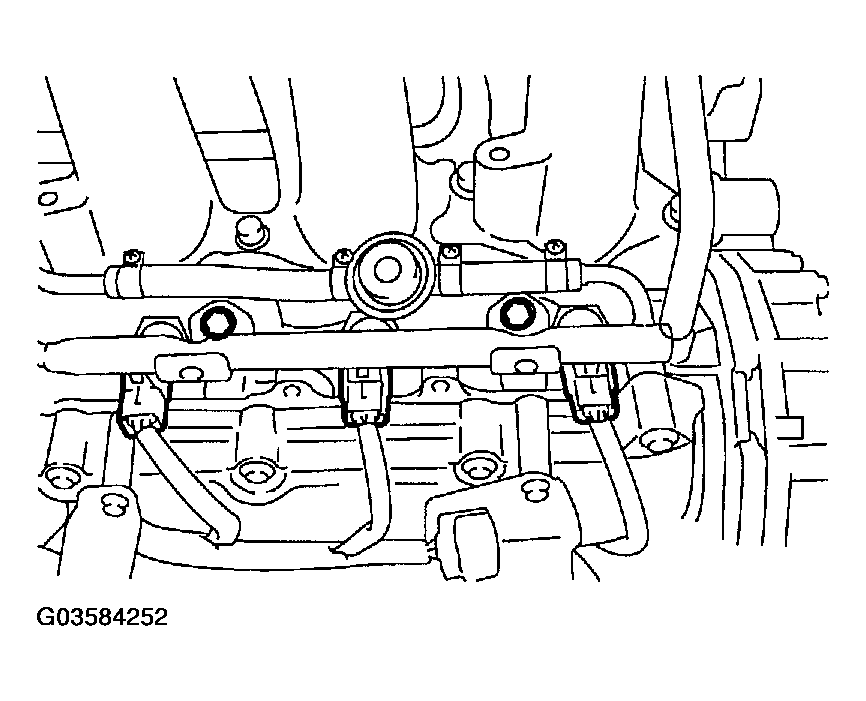

Fig 3: Tightening Bolts With Specified Torque

Courtesy of SUBARU OF AMERICA, INC.
