Main Relay: Removal

Disconnect battery ground cable.

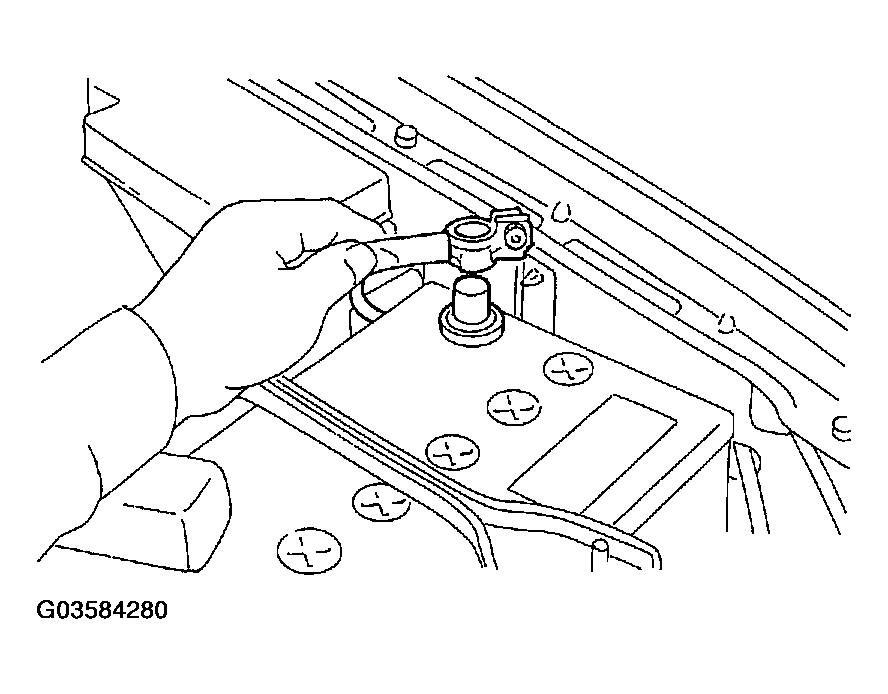

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove lower inner trim of passenger side. < Ref. to REMOVAL , Lower Inner Trim. >
Disconnect connectors from main relay.
Remove bolt which holds main relay bracket on body.

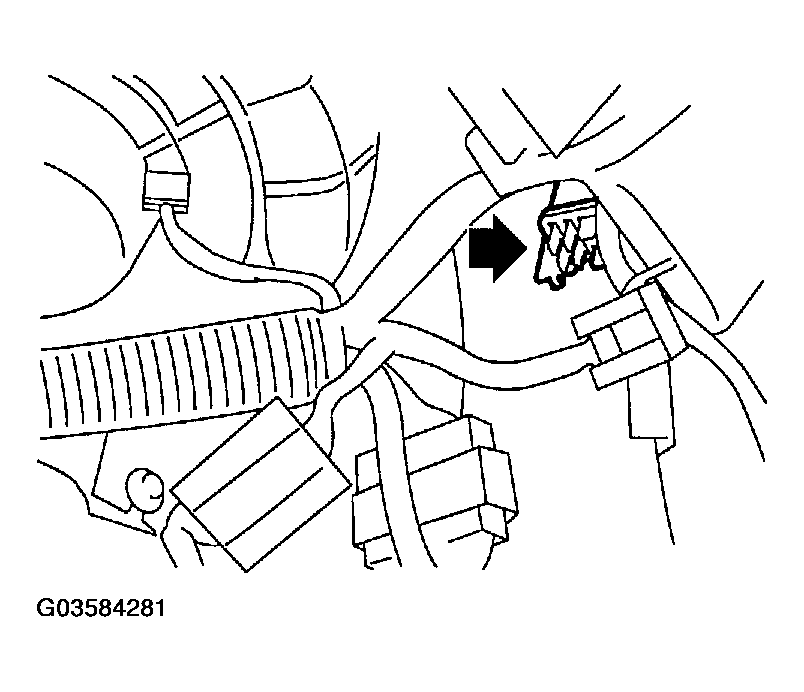

Fig 2: Removing Bolt Holds Main Relay Bracket On Body
Courtesy of SUBARU OF AMERICA, INC.
