AT Shift Lock Control Module: Removal

Disconnect battery ground cable.

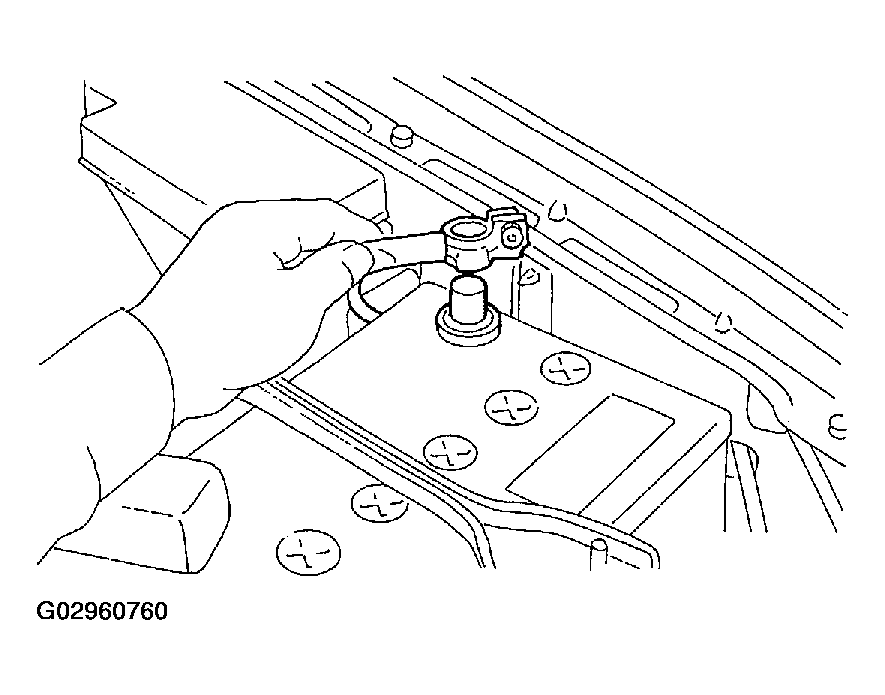

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the lower cover.

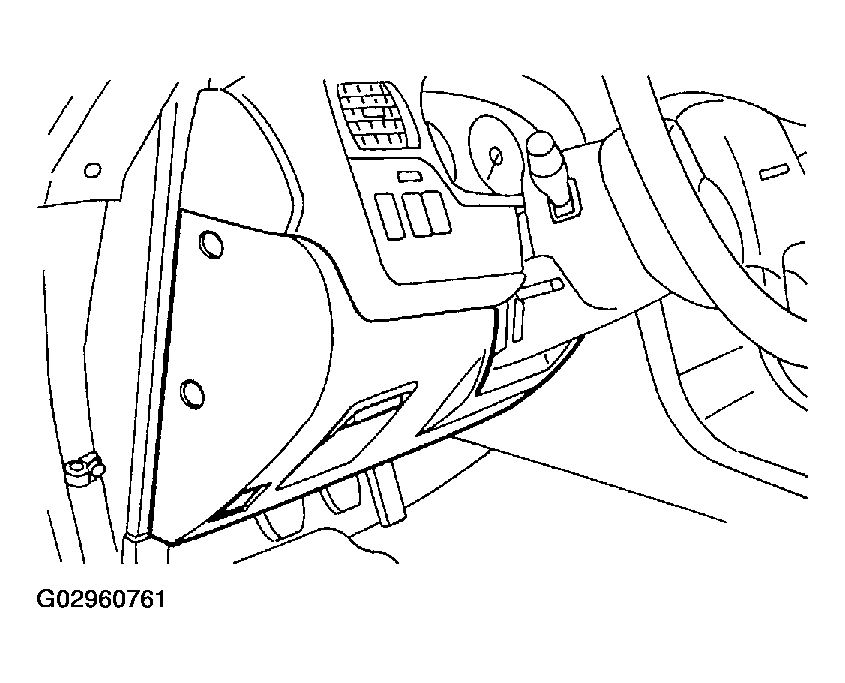

Fig 2: Removing Lower Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove knee bolster.
Disconnect connector from AT shift lock control module.

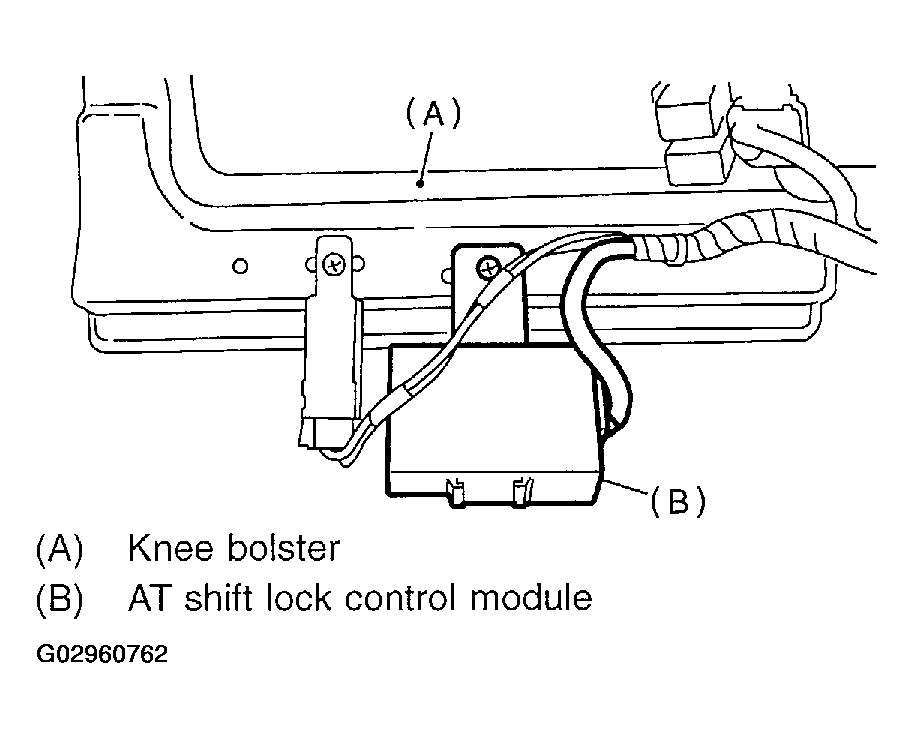

Fig 3: Disconnecting Connector From AT Shift Lock Control Module
Courtesy of SUBARU OF AMERICA, INC.
Remove the AT shift lock control module from knee bolster.
