AT Shift Lock System: Inspection: Notes

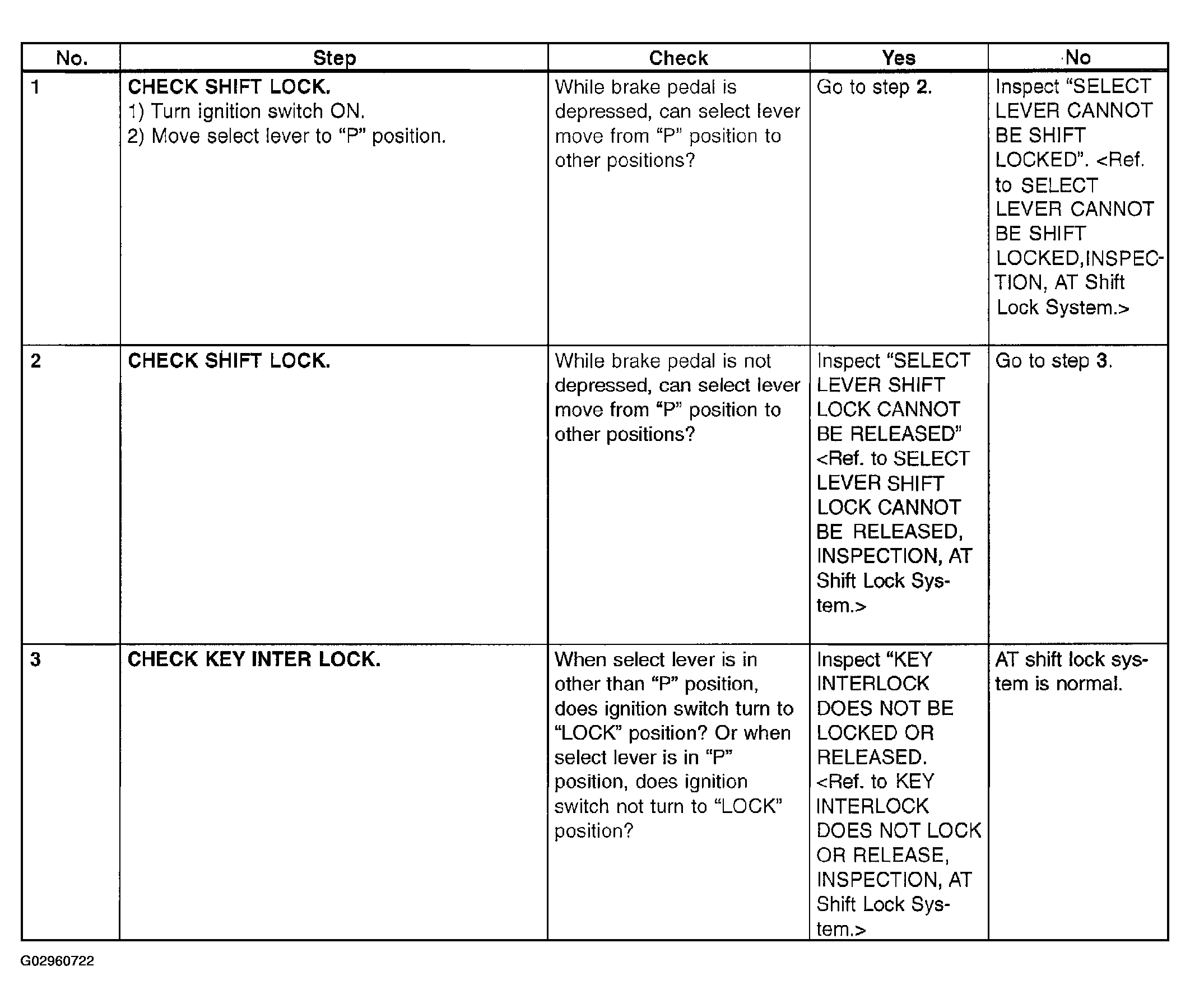

Fig 1: AT Shift Lock System Inspection Chart
Courtesy of SUBARU OF AMERICA, INC.
