Emissions - OBD II Data Link Connector Locations
NUMBER: 11-65-01DATE: 02/01/01
APPLICABILITY:
All 2002 Model SUBARU AWD Vehicles
SUBJECT:
On-Board Diagnostic System Check During State Emission Test
THIS BULLETIN IS FOR INFORMATION ONLY.
All 2002 MY SUBARU vehicles are 50-state certified and conform to California's Low Emission Vehicle emission standards. The MIL status is "OFF" in both the Key On-Engine Off (KOEO) and Key On-Engine Running (KOER) positions, when no Diagnostic Trouble Codes (DTCs) are present.

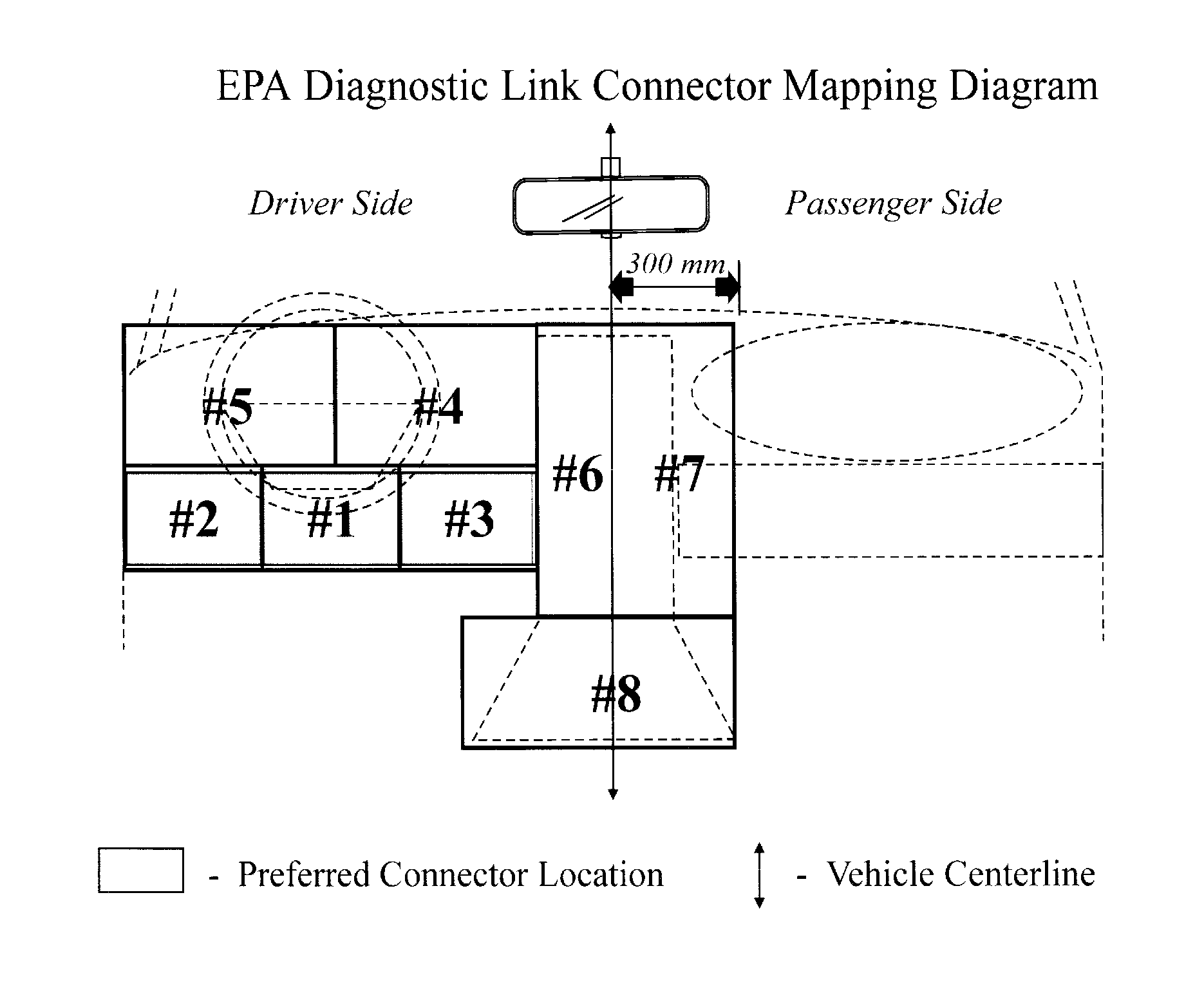

Summarized in the chart shown is a pictorial reference for the Diagnostic Link Connector (DLC) location by 2002 model line. The USEPA's Diagnostic Link Connector mapping grid is shown.
