Transfer Case Technical Data

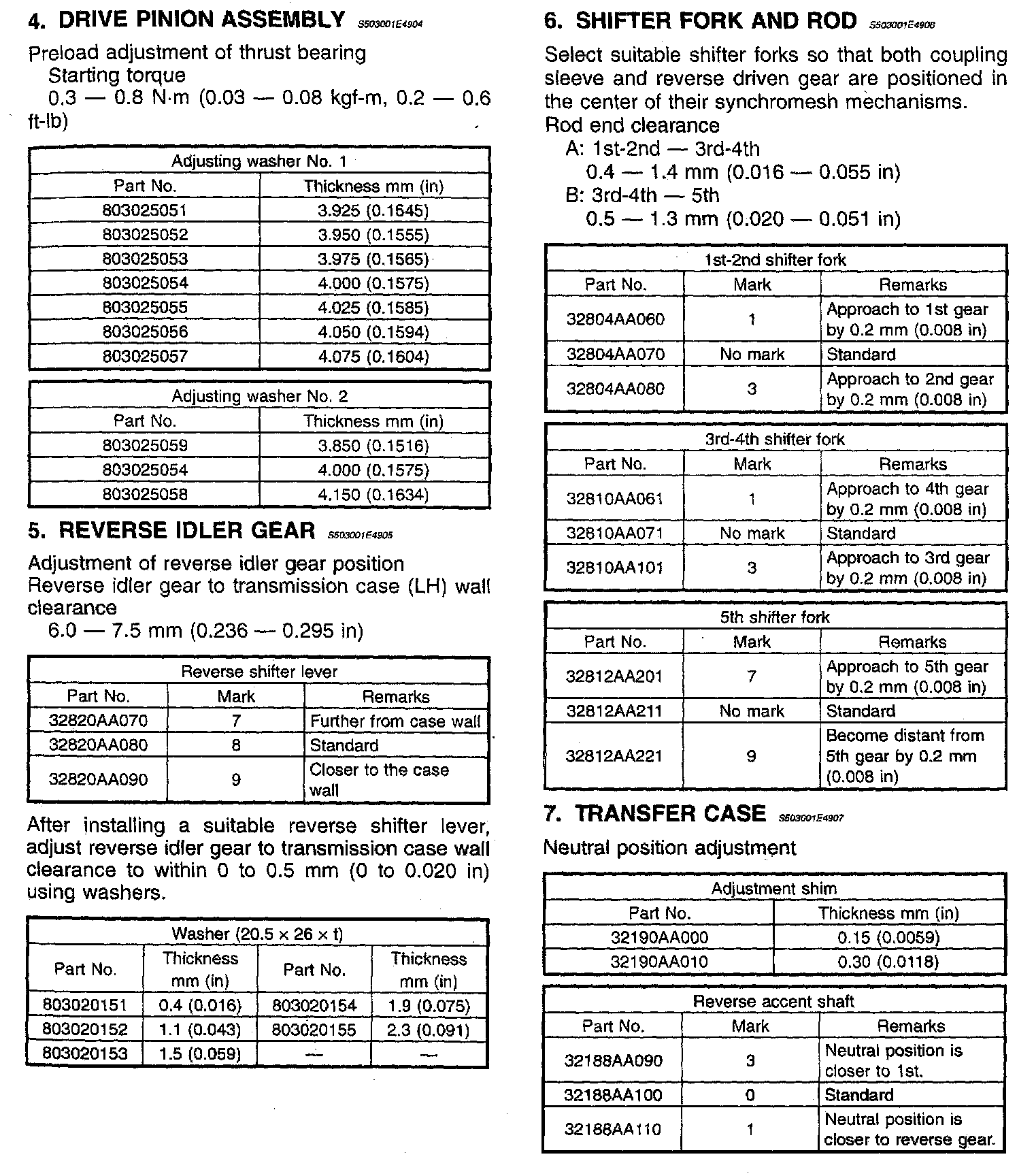

5-spd M/T, Transmission Service/Overhaul Data:

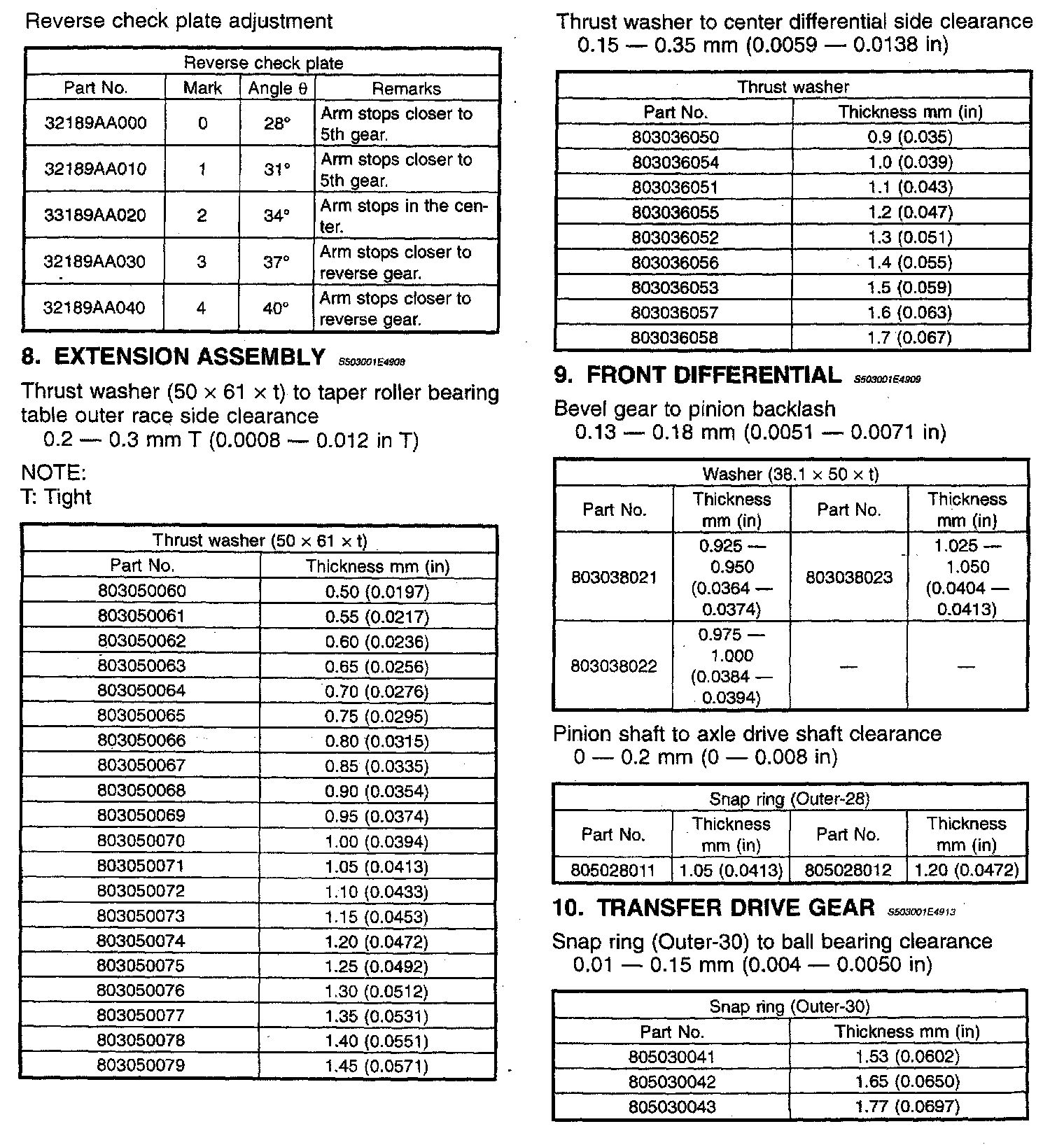

5-spd M/T, Transmision Service/Overhaul Data:
