Diagnostic Charts

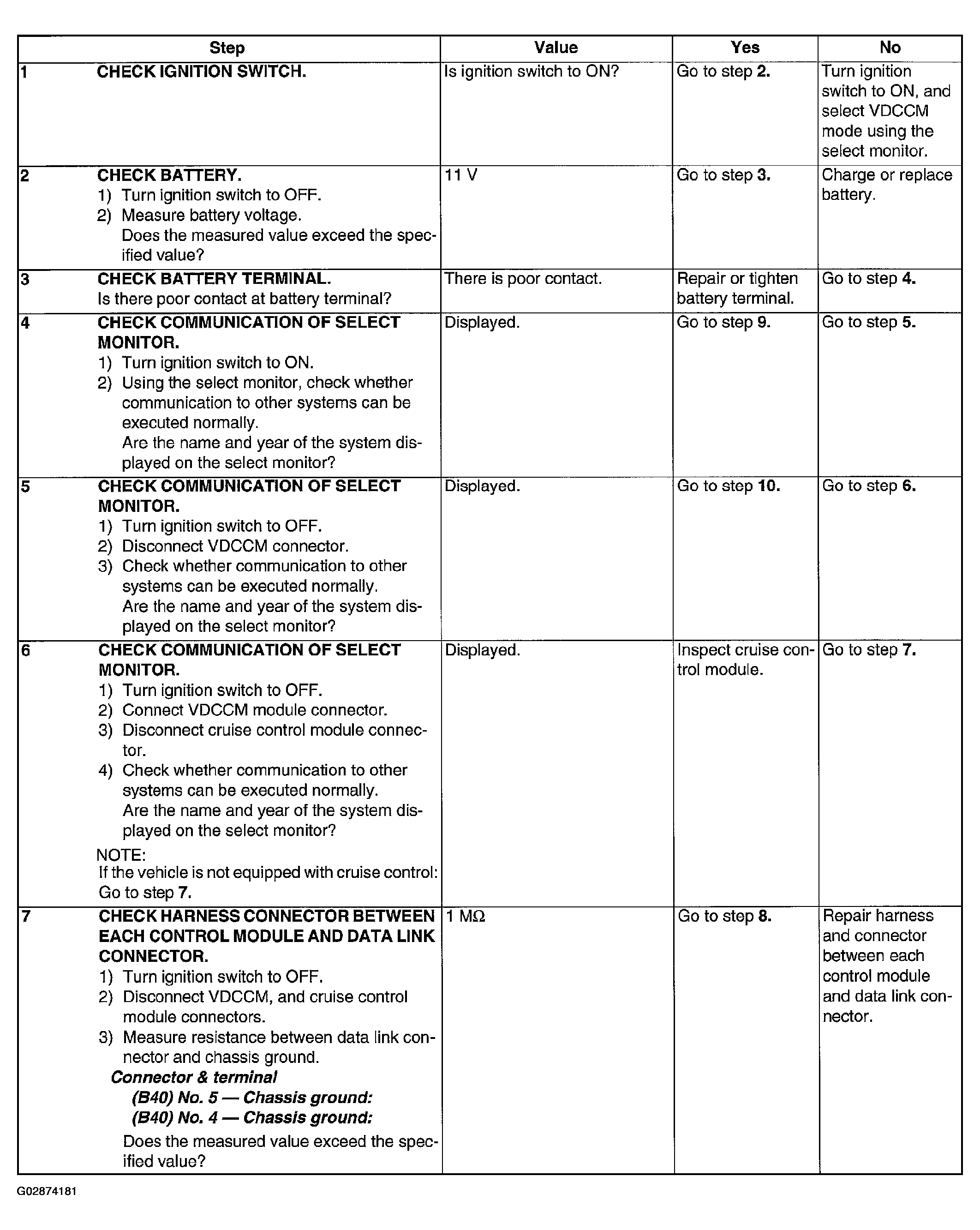

Fig 1: Diagnostics Chart - (Steps 1 - 7)
G02874181Courtesy of SUBARU OF AMERICA, INC.

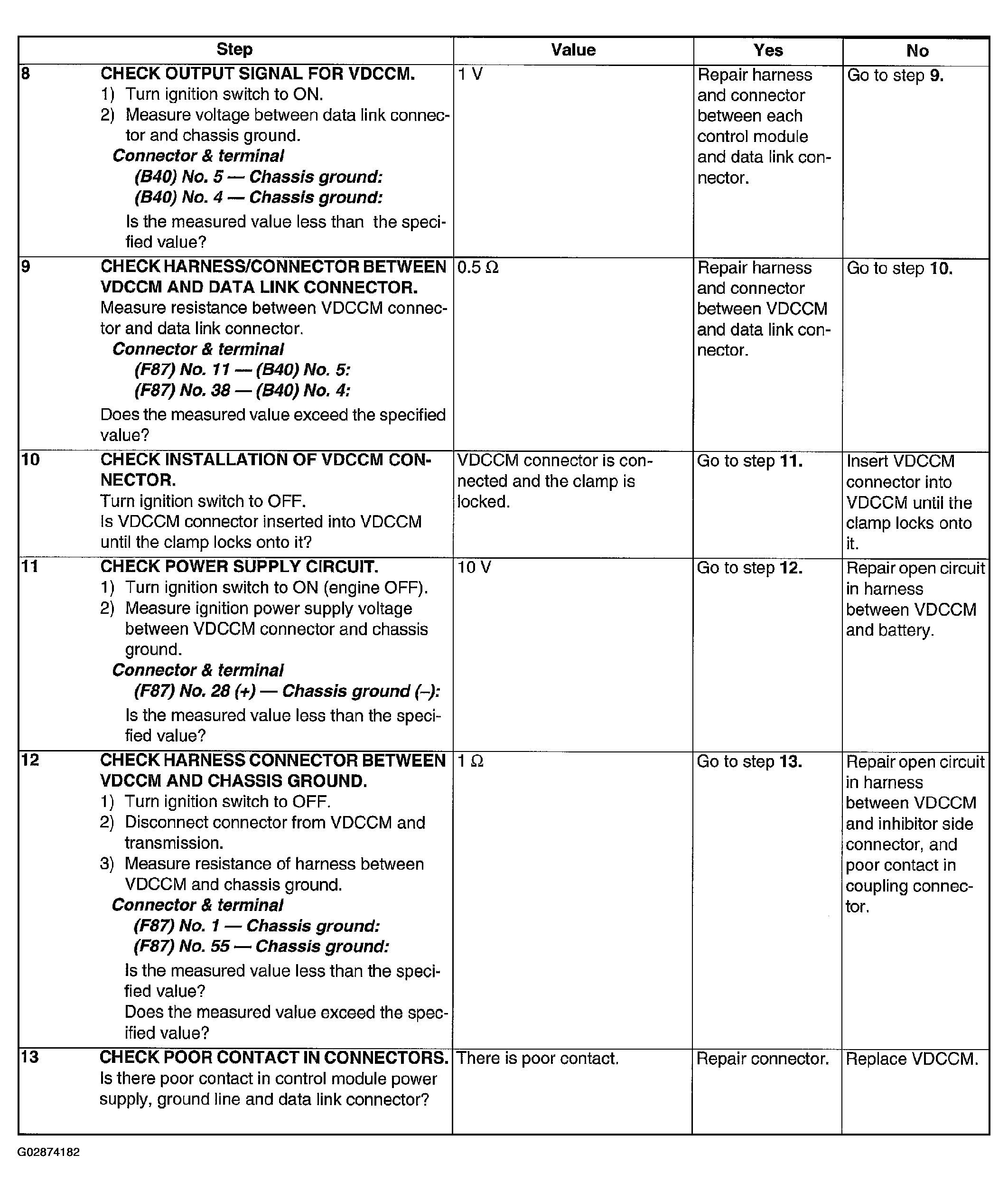

Fig 2: Diagnostics Chart - (Steps 8 - 13)
G02874182Courtesy of SUBARU OF AMERICA, INC.
