Differential Assembly

COMPONENT

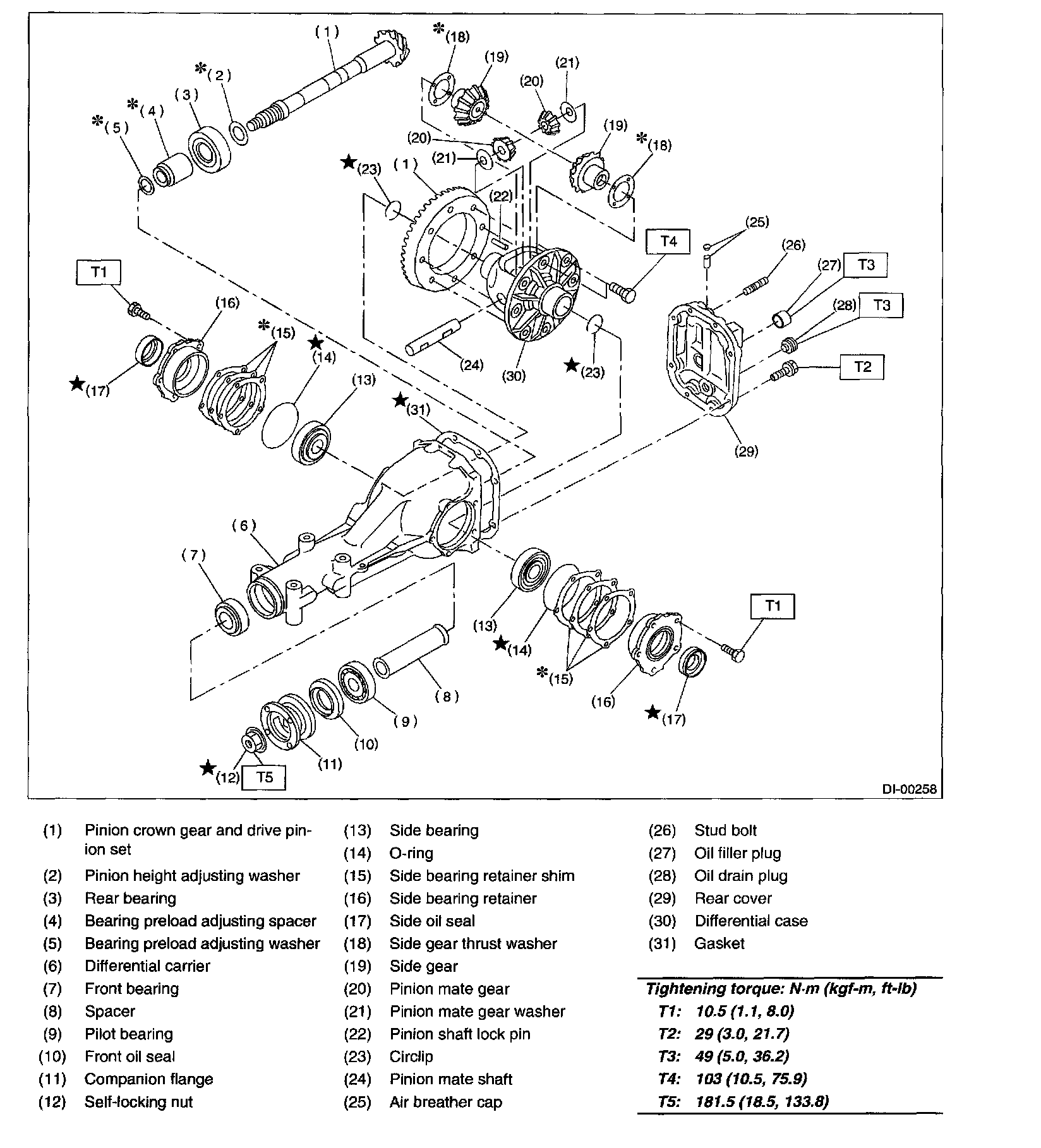

REAR DIFFERENTIAL WITHOUT LSD

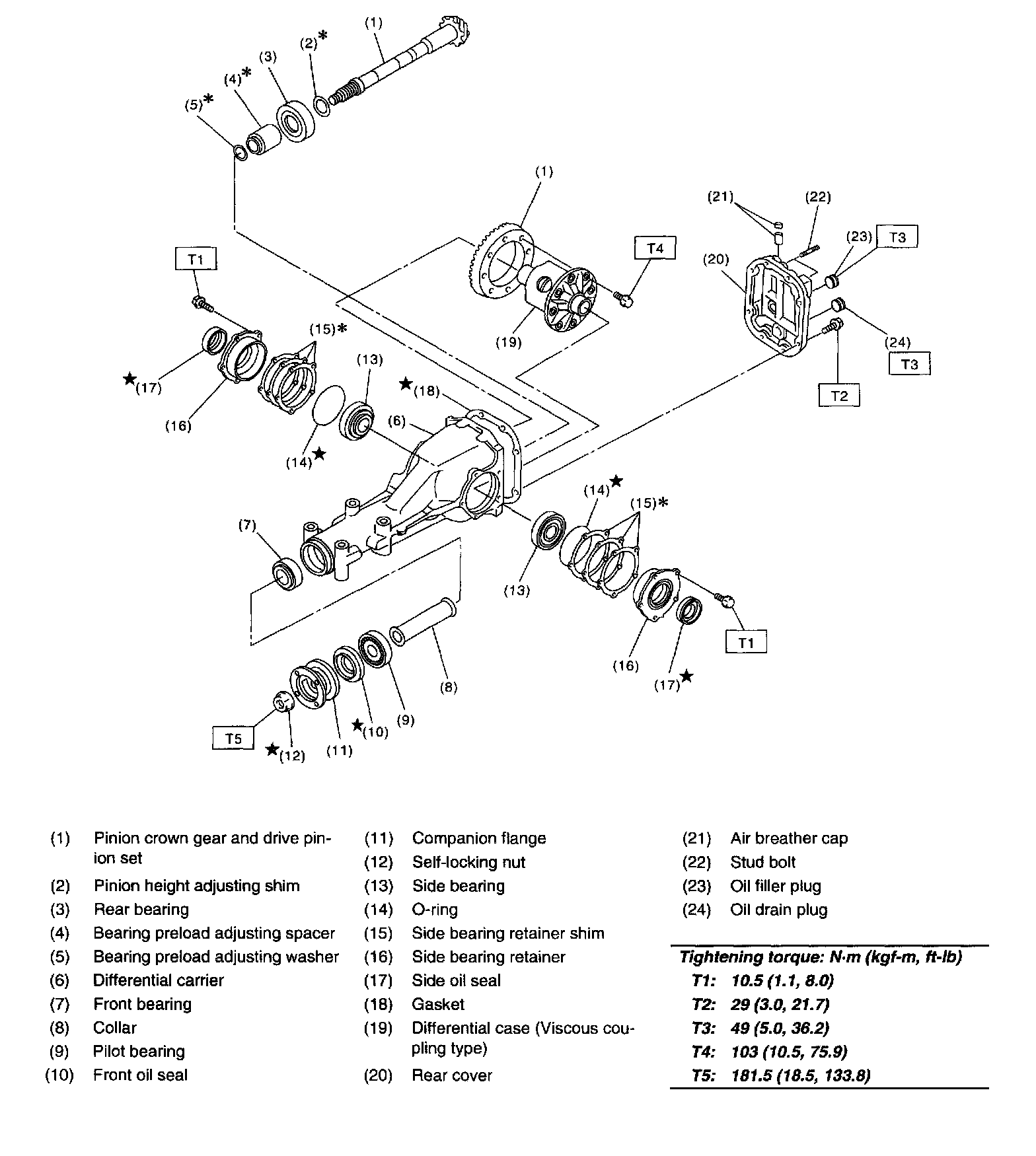

REAR DIFFERENTIAL WITH LSD

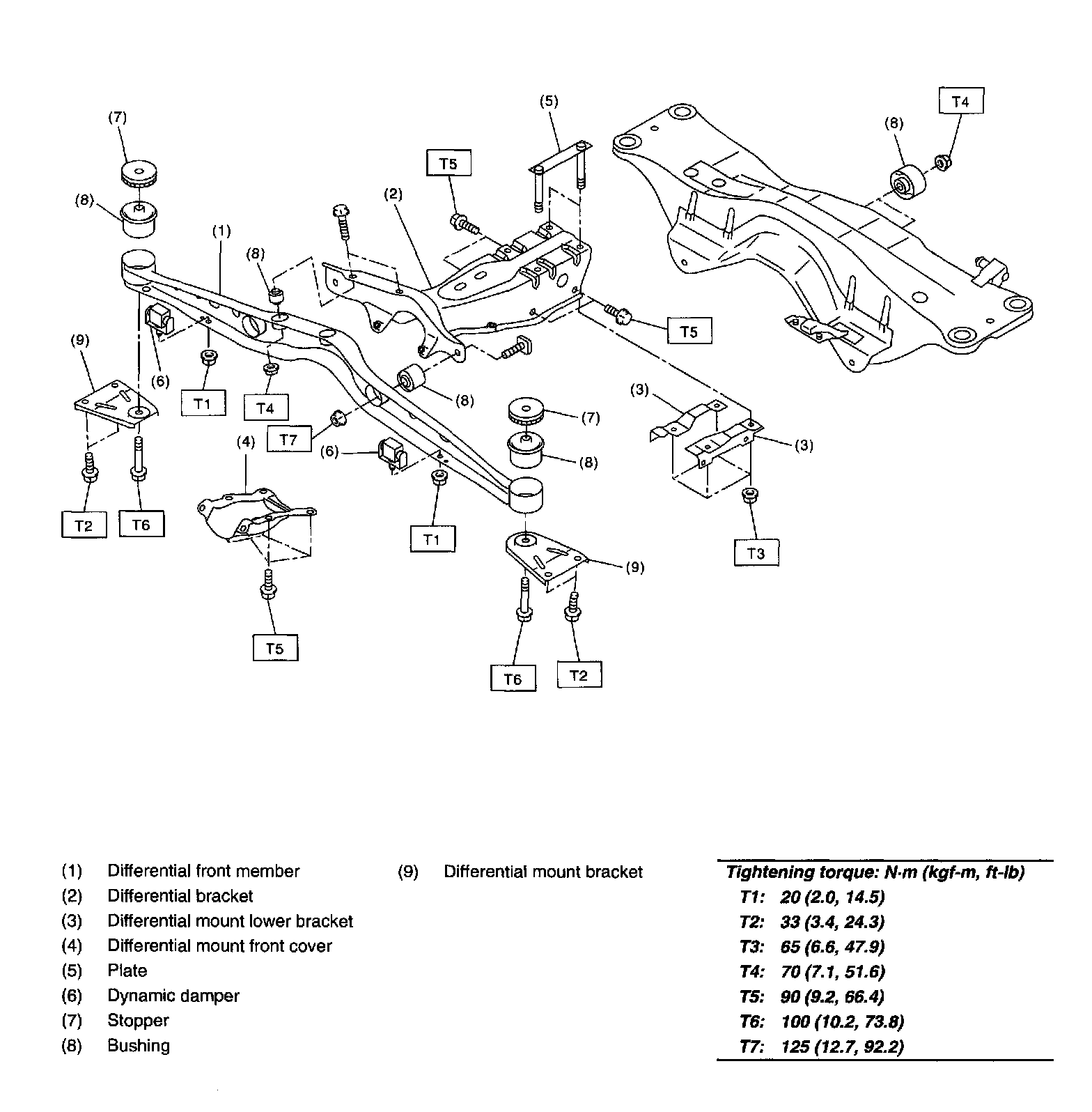

REAR DIFFERENTIAL MOUNTING SYSTEM
