Coolant Temperature Sensor/Switch (For Computer): Service and Repair

Engine Coolant Temperature Sensor

REMOVAL

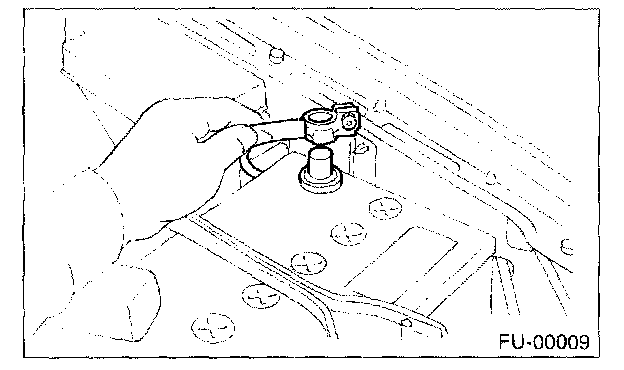

1. Disconnect the ground cable from battery
2. Remove the air intake duct and air cleaner assembly.

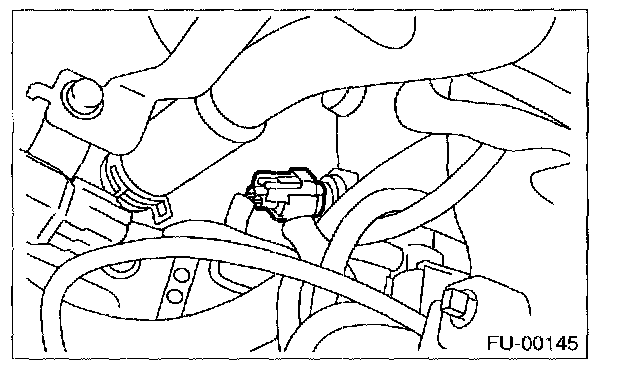

3. Disconnect the connector from the engine coolant temperature sensor

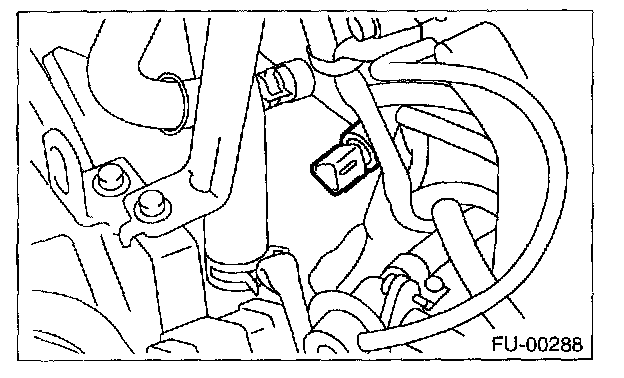

4. Remove the engine coolant temperature sensor

INSTALLATION




Install in the reverse order of removal.

Tightening torque: 18 N.m (1.8 kgf.m, 13.0 ft.lb)
