Fuel Cut Control Unit: Service and Repair

Fuel Cut Valve

REMOVAL

WARNING:
- Place "NO FIRE" signs near the working area.
- Be careful not to spill fuel on the floor.

1. Remove the fuel tank.

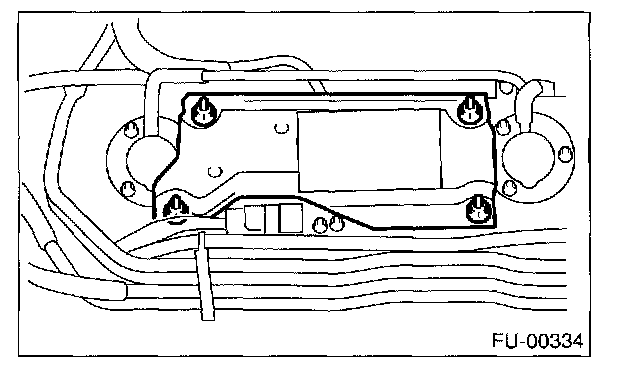

2. Remove the protect cover.

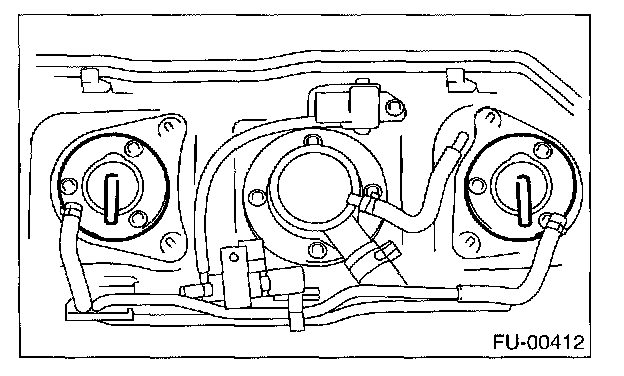

3. Move the clip and disconnect the evaporation hose from the fuel cut valve.

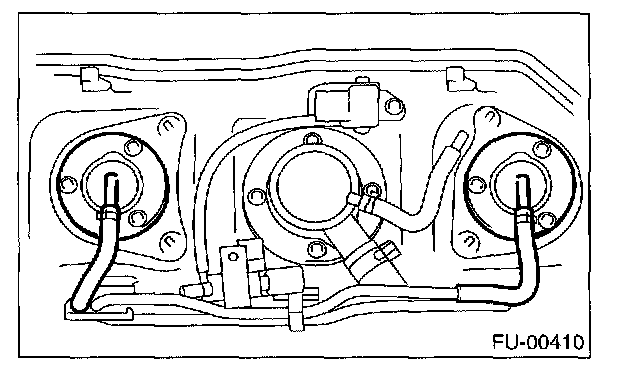

4. Remove the bolts which install the fuel cut valve.

INSTALLATION




Install in the reverse order of removal.

Tightening torque: 4.4 N.m (0.45 kgf.m, 3.3 ft.lb)
