Throttle Position Sensor: Service and Repair

REMOVAL

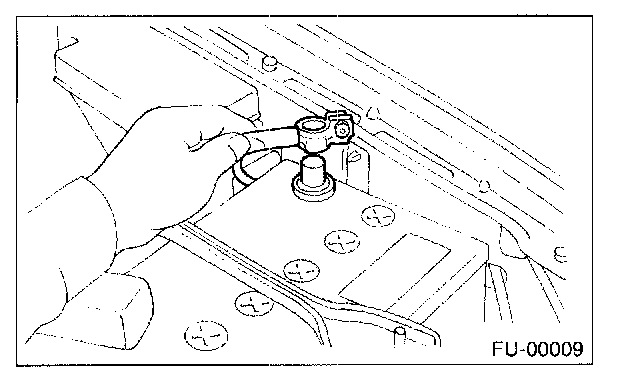

1. Disconnect the ground cable from battery.

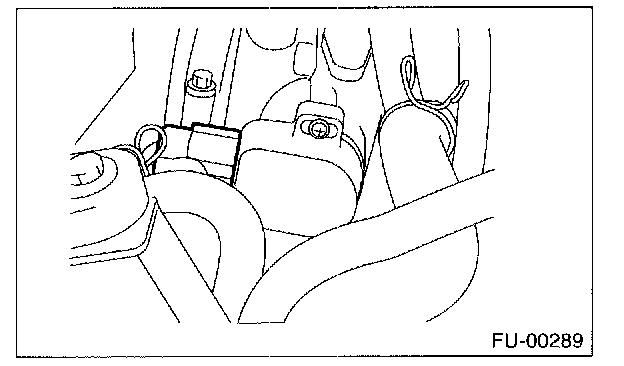

2. Disconnect the connector from the throttle position sensor.

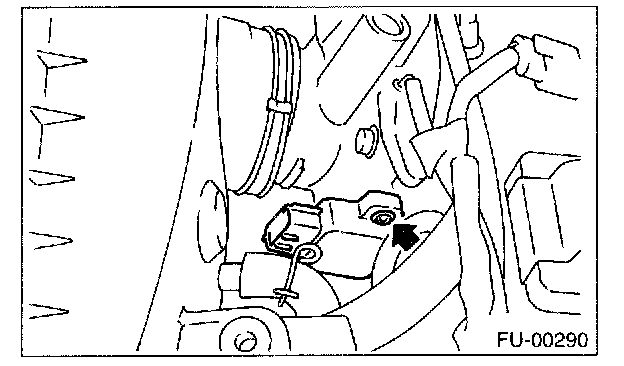

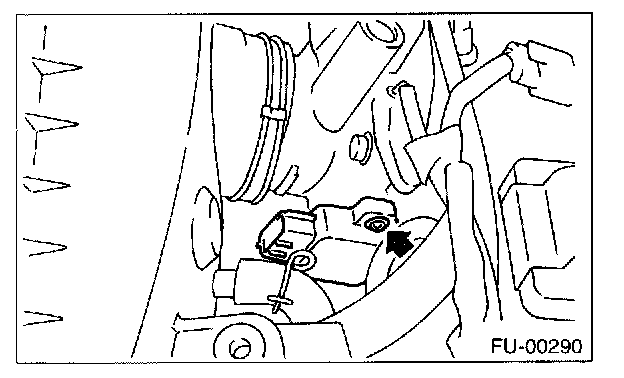

3. Remove the throttle position sensor holding screws, and remove it.

INSTALLATION

Install in the reverse order of removal

Tightening torque: 1.6 N.m (0.16 kgf.m, 1.2 ft.lb)

CAUTION: When installing throttle position sensor, adjust to the specified data.
